A professional anti-metal UHF RFID tag factory designs and manufactures rugged RFID tags that perform reliably when attached to metal surfaces. These tags are built with specialized materials—such as ferrite layers or dielectric spacers—to neutralize the signal interference typically caused by conductive metals.
The factory focuses on large-scale production of high-quality UHF RFID tags operating in the 860–960 MHz range, offering extended read range, robust durability, and application-specific customization.
Core Capabilities:
In-house design and manufacturing of anti-metal RFID tags
Full support for global UHF standards (EPC Gen2 / ISO 18000-6C)
Tag housings made from industrial-grade plastics, ceramics, or metal-reinforced polymers
Strong adhesive, rivet holes, and magnetic mounting options
Waterproof, dustproof, and temperature-resistant (IP65/IP68 options)
Custom logo, EPC encoding, and serialization services
Physical Specification | ||
|---|---|---|

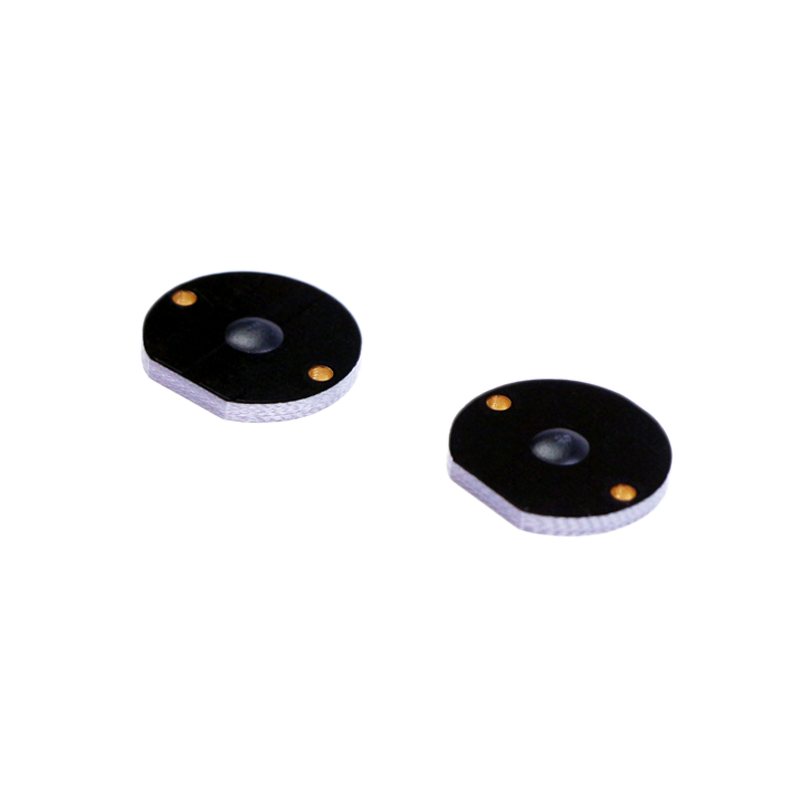

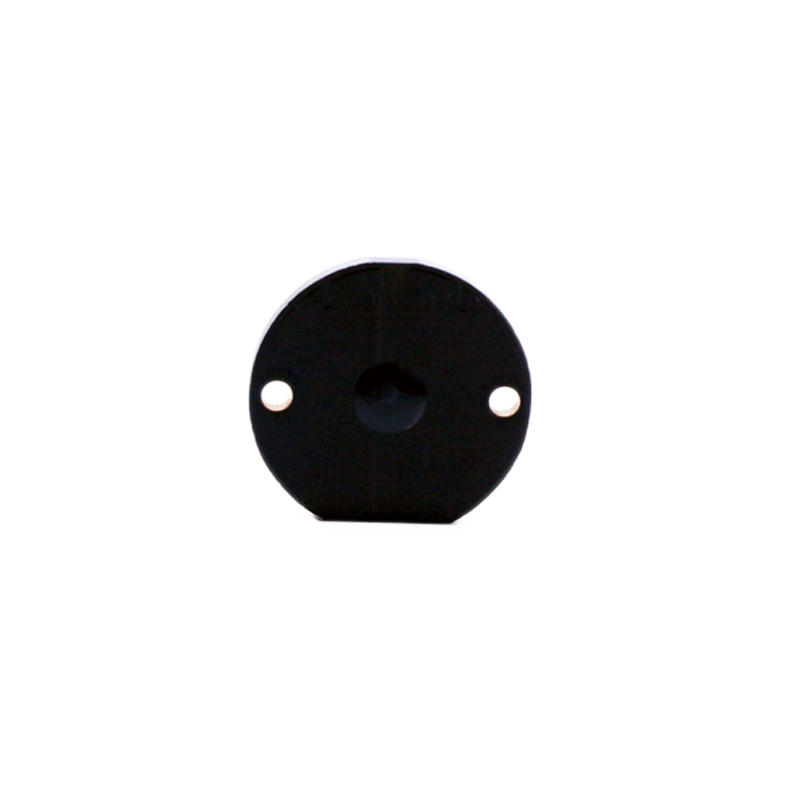

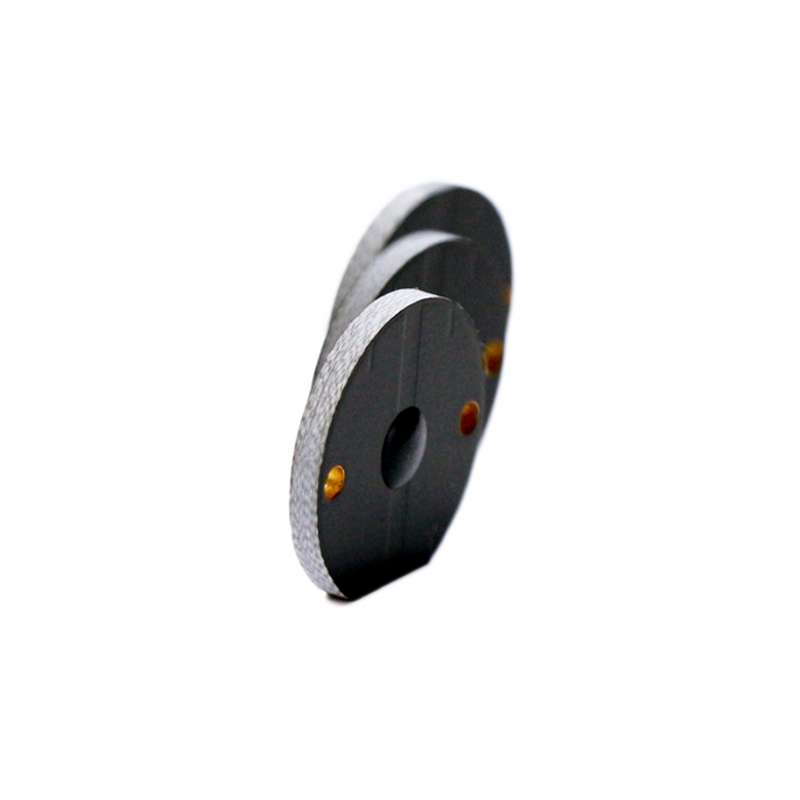

Item | SRUPCBD20 | |
Tag size | D20 mm | |
Thickness | 2.8 mm | |
Material | PCB | |
Adhesive | 3M 300LSE | |
Color | White, Black, etc. | |
Weight | 0.5 | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US), 865-868 MHz (EU) | |
IC Type | NXP UCODE 8, Alien Higgs 3, Alien Higgs 9 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits , Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed Reader) | 320 cm, (US) 902-928MHz, On Metal 280 cm, (EU) 865-868MHz, On Metal | |
Read Range Handheld Reader | 240 cm, (US) 902-928MHz, On Metal 230 cm, (EU) 865-868MHz, On Metal | |
Feature | Workable on metal surface | |
Environmental Specification | Operating Temperature | -40 °C to +150 °C / -40 °F to +302 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Screw or backing adhesive |
Package Detail | 50 pcs/ESD bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, Reach Approved, etc. | |
Application | Tooling Tracking, IT Asset Management, Medical Equipment, etc. |
