SRU4444

Baggage Ticket RFID

Our Baggage Ticket RFID solution is designed to revolutionize baggage tracking in airports and transport hubs. Using advanced RFID technology, this system enables real-time tracking of luggage, improving efficiency, reducing loss, and enhancing security throughout the travel process.

Perfect for airports, airlines, and transportation services, Baggage Ticket RFID offers a comprehensive solution to streamline baggage handling, enhance security, and improve the passenger experience.

INQUIRY
INQUIRY
Datasheet
Baggage Ticket RFID
baggage ticket rfid
rfid baggage card
rfid baggage tracking

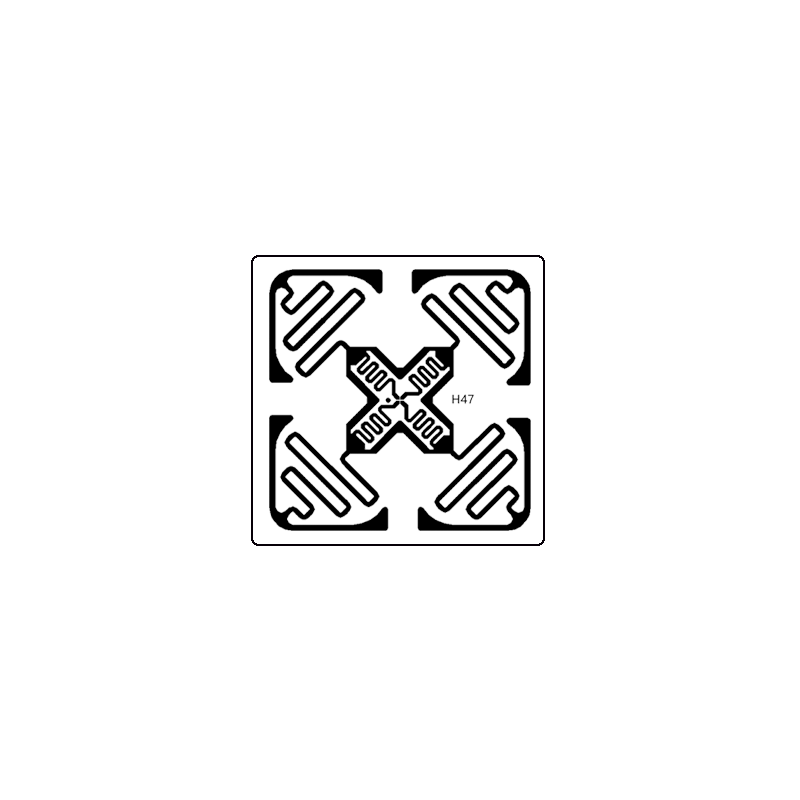

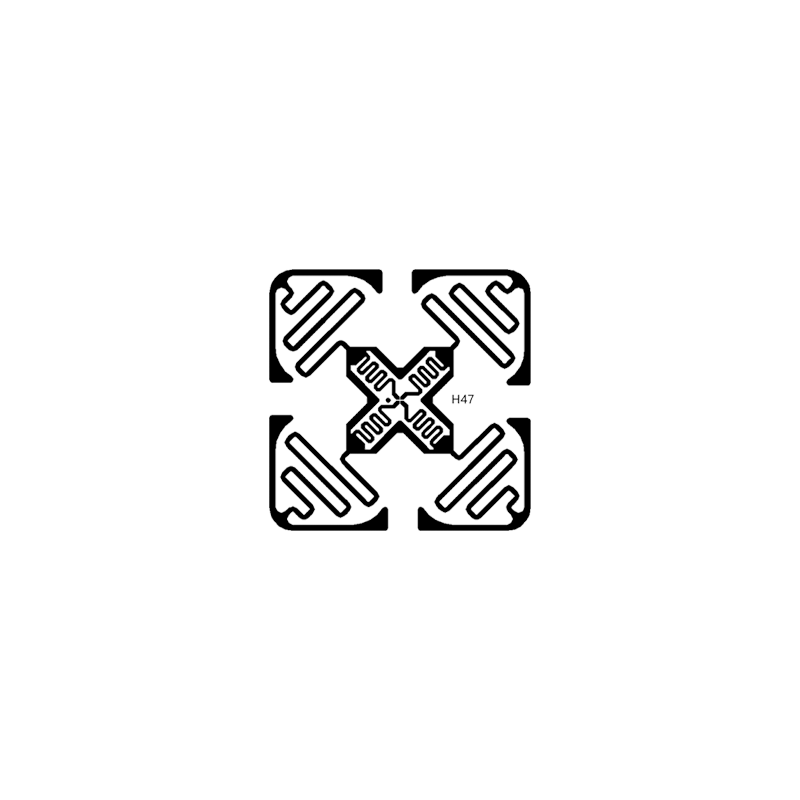

Physical Specification
Item
SRU4444
Antenna size
44*44 mm
Tag size
47*47 mm
Thickness
11–18 mils / 279–463 microns
Material
Paper / PP / PET or customized
Adhesive
Solvent free permanent acrylic adhesive
Color
White, Transparent, etc.
Weight
0.01 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
Impinj Monza 4E, Impinj Monza 4D, Impinj Monza 4i, Impinj Monza 4QT
Memory
Monza 4QT: EPC-512 bits; User-128 bits; TID-96 bits
Monza 4E: EPC-128 bits; User-496 bits; TID-96 bits
Monza 4D: EPC-32 bits; User-128 bits; TID-96 bits
Monza 4i: EPC-480 bits; User-512 bits; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
1 m to 7 m
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Operating Humidity
20% to 60% RH
Recommended Storage
+25°C / 77°F, 40% RH
Bend Diameter
> 1.97” / 50 mm
Pressure
< 5N/mm2
Drop Resistance
Per ASTM D5276
Shelf Life
2 years at +25°C / +77°F, 40% RH
ESD Voltag Immunity
±2 kV peak HBM
Other Specification

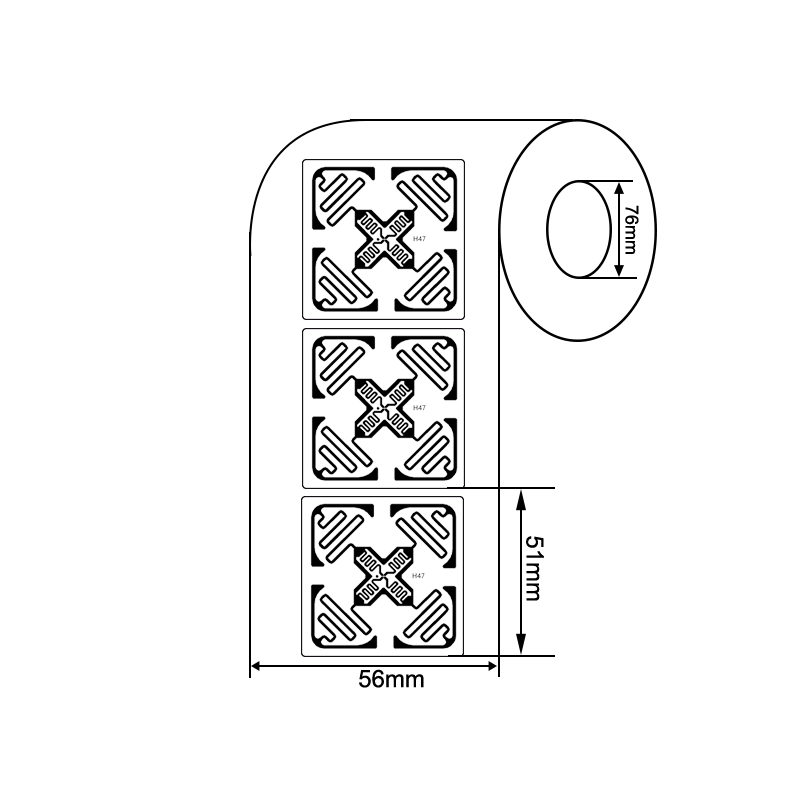

Package Detail
3000 pcs/reel, vacuumed in ESD bag or customized
Core Size
76.2 mm / 3 in, etc.
Delivery Format
On reel for dry inlay, wet inlay, label
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested, defective tags marked
Certification
CE Approved, RoHs Approved, etc.
Application
Used for logistics, clothing, baggage tickets, etc
