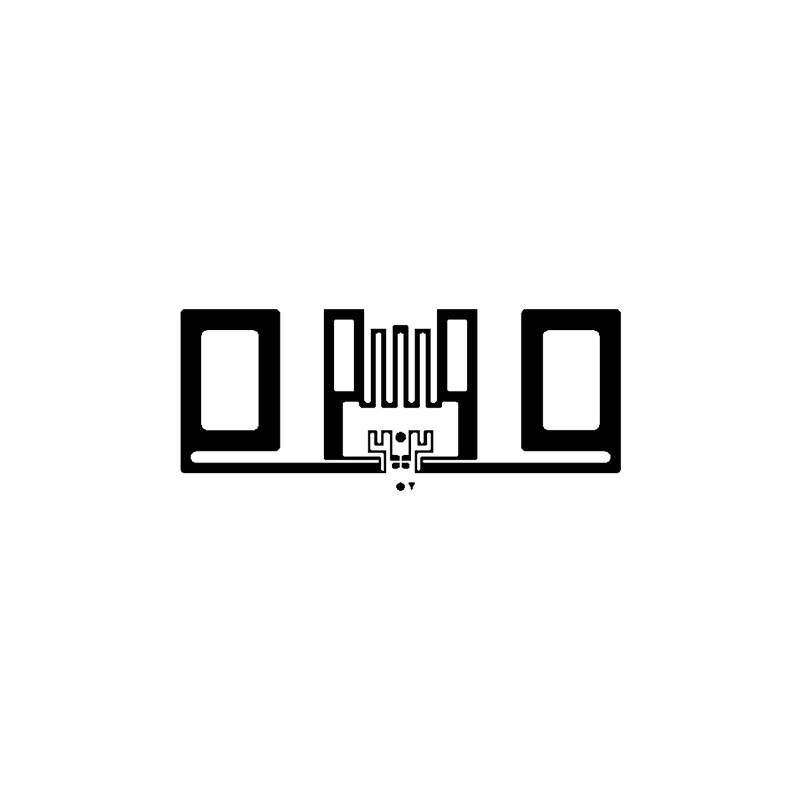

SRU4015

Bibliotheca RFID Tags

Transform your library’s efficiency and user experience with Bibliotheca RFID Tags, the cornerstone of smart library management. These innovative tags go far beyond simple identification, embedding a microchip and antenna that enable a seamless, contactless ecosystem for both staff and patrons.

Each Bibliotheca RFID Tag is a durable, high-performance data carrier attached to every item in your collection. It serves as the digital heartbeat of our integrated suite, enabling lightning-fast, bulk processing for check-in, check-out, and inventory management. Say goodbye to manual scans and hello to processing entire stacks of books in seconds.

Key Benefits of Bibliotheca RFID Tags:

  • Unmatched Efficiency: Drastically reduce wait times with self-service kiosks that read multiple tags simultaneously, and accelerate back-office sorting and inventory with handheld or fixed readers.

  • Enhanced Security: Integrated electronic article surveillance (EAS) provides reliable theft detection without compromising circulation speed.

  • Pinpoint Accuracy: Achieve unparalleled inventory precision, allowing staff to quickly locate mis-shelved items and ensure collection integrity.

  • Patron Empowerment: Enable a frictionless borrowing experience with easy self-service, fostering greater independence and satisfaction.

  • Robust & Reliable: Designed for the long life of library materials, these tags are built to withstand daily use and ensure consistent performance.

Physical Specification
Item
SRU4015
Antenna size
40*15 mm
Tag size
43*18 mm
Thickness
11–18 mils / 279–463 microns
Material
Paper / PP / PET or customized
Adhesive
Solvent free permanent acrylic adhesive
Color
White, Transparent, etc.
Weight
0.01 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
Kiloway KX2005X-S
Memory
KX2005X-S: EPC-128 bits; User-N/A bits; TID-96(up to 192) bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
6 m to 10 m (Depend on reader and environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Operating Humidity
20% to 60% RH
Recommended Storage
+25°C / 77°F, 40% RH
Bend Diameter
> 1.97” / 50 mm
Pressure
< 5N/mm2
Drop Resistance
Per ASTM D5276
Shelf Life
2 years at +25°C / +77°F, 40% RH
ESD Voltag Immunity
±2 kV peak HBM
Other Specification
Package Detail
3000 pcs/reel, vacuumed in ESD bag or customized
Core Size
76.2 mm / 3 in, etc.
Delivery Format
On reel for dry inlay, wet inlay, label
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested, defective tags marked
Certification
CE Approved, RoHs Approved, etc.
Application
CD/DVD Management,etc.
