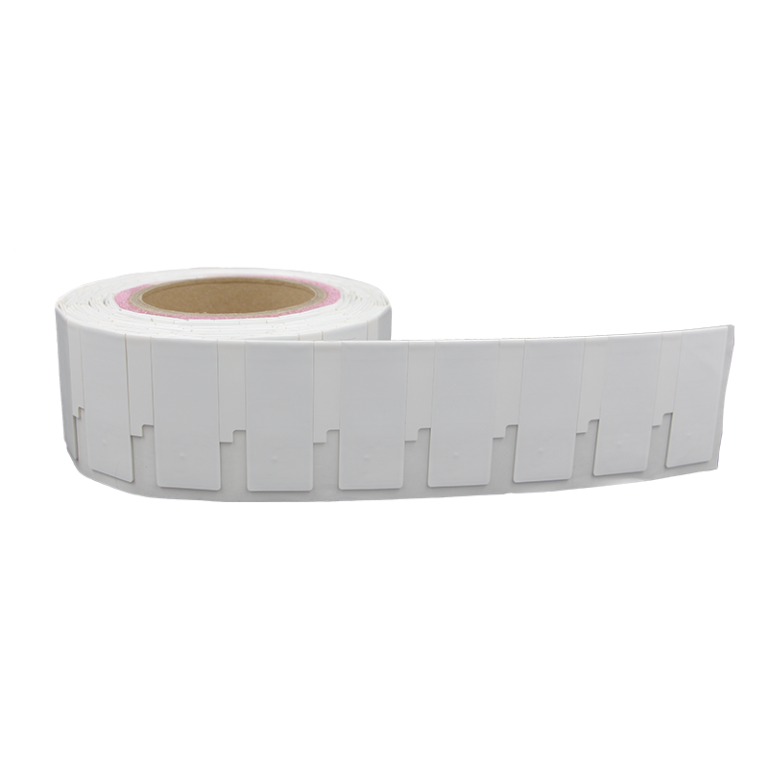

Elevate your medical equipment tracking with our advanced EPC RFID Metal Labels – the pinnacle of precision and efficiency in healthcare asset management. Engineered for superior performance on metal surfaces, these labels seamlessly integrate into medical equipment, offering unparalleled accuracy and real-time visibility. Streamline operations, enhance compliance, and optimize asset management with technology designed for the unique challenges of healthcare environments. Our EPC RFID Metal Labels redefine the standards of asset tracking, providing a reliable solution for the demanding requirements of medical equipment tracking. Stay ahead with our state-of-the-art RFID solutions, tailored for precision, control, and success in healthcare asset management. Explore the future of intelligent tracking with our robust and reliable EPC RFID Metal Labels.
Physical Specification | ||
|---|---|---|
Item | SRUFLX4804 | |
Tag size | 48*4 mm | |
Thickness | 1.0 mm | |
Material | White PET | |
Adhesive | High tack adhesive with excellent adhesion / 3M (optional) | |
Color | White, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 865-868 MHz (EU) | |
IC Type | NXP UCODE 8, NXP UCODE 9 | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed reader) | EU: On metal up to 2.0 m, On liquid up to 5.0m | |
Read Range (Handheld reader) | EU: On metal up to 0.5 m | |
Feature | Workable on metallic curved surface | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 1 years at +20°C / +68°F, 50% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Vibration | MIL-STD-810G | |
IP Rating | IP68, tested for 5 hours in 1m deep water | |
Other Specification | Package Detail | 500 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for label | |
Printer Compatibility | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. | |
Installation | Clean and dry the surface before the mounting | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Logistic management, Warehouse management, Apparel management, etc. |
