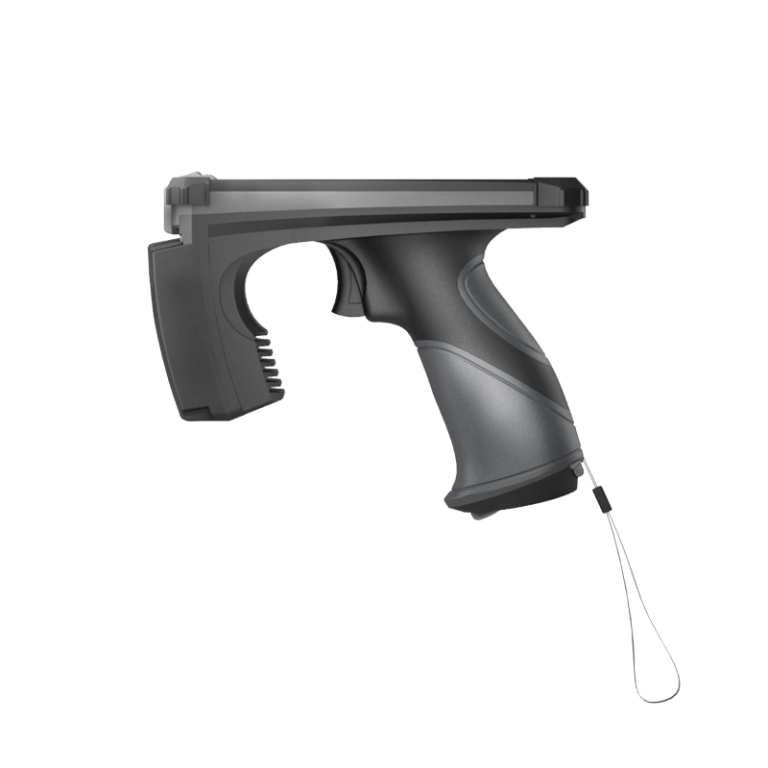

SRRH03
HF Handheld Reader

The HF handheld RFID reader is a powerful, portable solution designed for seamless book management and efficient asset tracking. Built with advanced HF RFID technology, this reader provides quick, accurate scans for inventory management, making it an ideal tool for libraries, bookshops, and other environments that require easy, reliable tracking of items.

With its user-friendly interface, the HF handheld RFID reader allows staff to quickly check in and check out books, manage inventory, and streamline book returns, all while reducing manual work and human error. The device’s high-frequency (13.56 MHz) RFID capabilities ensure fast and accurate identification, even when multiple books are scanned at once.

Key Benefits:

  • Efficient Book Management: Ideal for libraries, schools, and bookstores, allowing fast check-in/check-out and real-time inventory updates with RFID technology.

  • HF RFID Technology: Operates on the high-frequency (13.56 MHz) RFID band for reliable, long-range scans with minimal interference, providing accurate and quick readings.

  • Portable and Easy to Use: Lightweight and ergonomic design allows for comfortable handheld use, making it easy to carry around for on-the-go scanning and management.

  • Bulk Scanning Capability: Enables scanning of multiple books or items at once, significantly speeding up inventory management and book checkouts in busy environments.

  • Integration with RFID Systems: Seamlessly integrates with existing RFID systems, making it easy to incorporate into your library or inventory management workflows.

  • Versatile Applications: In addition to book management, this reader can be used in other industries, such as asset tracking, inventory control, and secure access systems.

The HF handheld RFID reader simplifies book management and inventory tracking, improving operational efficiency while offering real-time data and reducing human error. Whether you’re in a library, bookstore, or any asset-heavy environment, this reader enhances your ability to manage inventory and ensure the security of your products.

Physical Specification
Dimension
143.3*169*90.5 mm
Material
Engineering plastics
Operating System
Android 9.0
CPU
Octa-core 1.4GHz
Memory
RAM: 2G, ROM: 16G
RAM: 4G, ROM: 64G (optional)
Extended
Micro SD / TF x l ( up to 128 GB), Nano-SIM x 2
Weight
678g
Color
Black
LCD
5.7 inch HD display, 720X1440 resolution
Touch Screen
Ultra sensitive capacitive touch panel, works with gloves and wet fingers; Corning Gorilla Glass; Multi touch
Main battery
Replaceable; Capacity: 3.85 / 9000mAh
Charging time
<7 hours
Audio
Speakers, Dual Microphones, Earphone, Receiver
Buttons
Volume+/-x Power, Scan buttonX2, Programmable button, Pistol Grip trigger button
Camera
Front 5M Pixels, Rear 13MP auto-focus color rear camera with flash
Sensors
Light + Accelerator+ Proximity + Geomagnetic + Gyro (optional)
Scanning
1D/2D barcode reader
RFID Specificiation
Air Interface Protocol
Single ISO 15693
Multi ISO 15693 and ISO/IEC 14443A\B
Operating Frequency
13.56 MHz
Built In Antenna
50Ω Antenna
Reading Distance
Up to 20 cm (ISO 15693)
Up to 5 cm (ISO/IEC 14443A\B)
Camera Specification
Rear Camera
1300w
Front Camera
500w
Focus Method
Auto focus, touch selection, face detection
Flash
700mA, Support flashlight
Video
1080p front and rear camera video recording
Wireless Communication
WAN
Dual-SIM, Dual-Standby 4G, 3G, 2G
Bluetooth
BT4.2+BR / EDR+BLE
Wi-Fi
2.4G/5G, IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w
Roaming: 802.Hr / OKC / PMKID caching
Positioning
GPS, A-GPS, BEIDOU, GLONASS, Galileo
Scanner Specification
Scanner
2D barcode
Scan Angels Tilt
360°
Scan Angels Pitch
±45°
Scan Angels Skew
±60°
Laser type
Class Ⅱ
Barcodes support
UPC/EAN,UPC/EAN witsupplemental, Code128, GS1-128, Code 39,Trioptic, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,IATA 2 of 5, Industrial 2 of 5, Codabar, Codablock F, MSI, Telepen, Code11, GS1 DataBar variants, PDF417, MicroPDF417, Composite Code,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Environment Specification
Humidity
5%RH 〜 95%RH (No condensation)
IP Rating
IP 65
Storage Temperature
-40°С to +70°С
Operating Temperature
-20°С to +60 °С
Drop test
1.2 m
Tumbling
400 3.2ft./1.0m tumbles Exceeds MIL-STD810G
