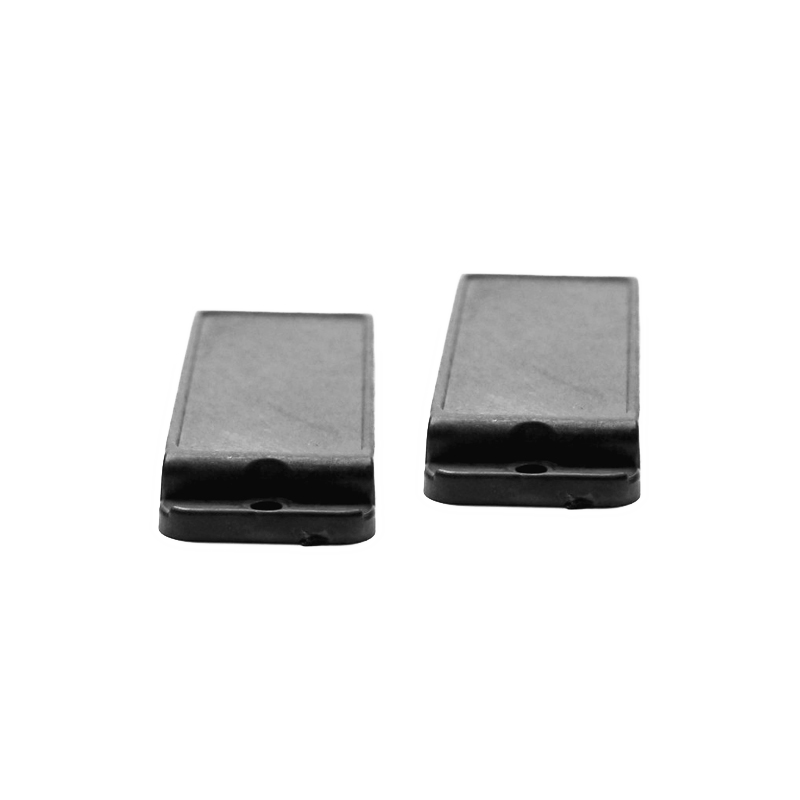

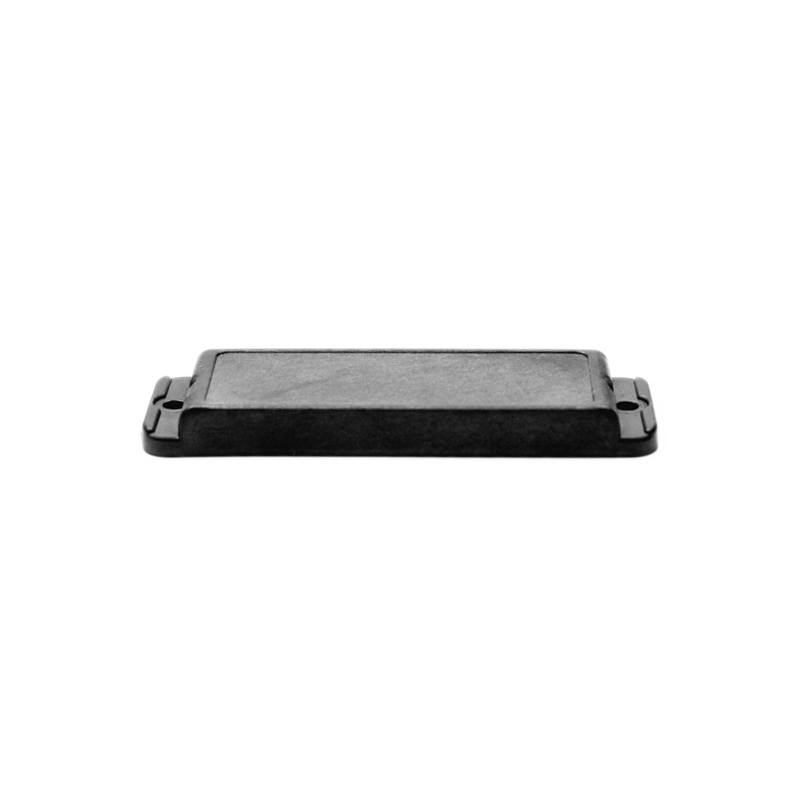

SRUTEMP8000

High Temperature And Acid Alkali Resistant RFID Tags

Our High Temperature & Acid/Alkali Resistant RFID Tags are engineered to withstand the harshest industrial conditions, combining ultra-durable materials with reliable UHF RFID performance. These tags maintain functionality in environments where extreme heat and corrosive chemicals would destroy standard RFID solutions – perfect for chemical processing, metal fabrication, oil & gas, and other demanding applications.

Key Features

  • Unmatched Thermal Resistance – Continuous operation at 250°C (482°F) with peak tolerance to 300°C (572°F)
  • Chemical-Proof Design – Resists strong acids (HCl, H₂SO₄), alkalis (NaOH, KOH), solvents, and industrial cleaners
  • Metal Surface Optimized – Special anti-metal layer ensures stable performance on metallic assets
  • Long-Range UHF Performance – Up to 10m read distance (dependent on reader power)
  • Rugged IP68 Protection – Complete defense against moisture, dust, and physical impacts
INQUIRY
INQUIRY
Datasheet
Physical Specification
Item
SRUTEMP8000
Tag size
83.4*27.1 mm, Hole: D4 mmx2
Thickness
8.5 mm
Material
PEEK
Adhesive
N/A
Color
Black, etc.
Weight
15 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
Alien Higgs 3
Memory
Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
420 cm, US (902-928MHz)
330 cm, EU (865-868MHz)
Read Range
Handheld Reader
280 cm, US (902-928MHz),
200 cm, EU (865-868MHz)
Feature
High Temperature resistance, Acid and alkali resistance, PH0 to PH14,and all other liquid that PEEK can handle with
Environmental Specification
Operating Temperature
-60°С to +260°С / -76 °F to +500 °F
Survival Temperature
-60°С to +260°С, +300 °С 100 hour
Peak Temperature
a. Withstand 300°С for 100 hours continuously without damage.
b. Withstand 280°С for 1000 hours continuously without damage.
c. Withstand 260°С for 2000 hours continuously without damage.
d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage.
e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage.
f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage
IP Rating
IP68, IP69K
Other Specification
Installation
Screw
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
NOT Free
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Mould processing, Automotive Production, Industrial Manufacturing, etc
