The Impinj RFID Reader sets the gold standard for UHF RFID performance—trusted globally for its reliability, speed, and enterprise-grade intelligence. Whether you’re managing complex supply chains, automating inventory workflows, or enabling real-time visibility across operations, Impinj readers provide the high-speed data capture and system integration capabilities that modern businesses demand.
Key Features:
Powerful UHF Performance: Based on the industry-renowned Impinj RAIN RFID platform, offering exceptional read sensitivity, tag throughput, and multi-tag accuracy.
Scalable Architecture: Suitable for both small deployments and large, multi-reader environments—ideal for retail, logistics, and industrial applications.
Flexible Connectivity: Multiple interface options (PoE, USB, Ethernet, GPIO) make integration seamless across various IT infrastructures.
Smart Data Filtering: Embedded edge logic helps reduce backend processing by intelligently filtering tag reads at the source.
Advanced Antenna Support: Compatible with up to 32 antenna ports (via multiplexers), allowing wide-area and zone-specific tracking.
Rugged & Reliable: Built to operate 24/7 in demanding environments—delivering stable, consistent performance even in high-interference zones.
Ideal Applications:
Real-time inventory visibility in retail stores
Warehouse and logistics automation
Manufacturing process tracking
Airport baggage handling
Asset tracking in healthcare or government facilities
With an Impinj RFID Reader, you’re not just buying a reader—you’re investing in a scalable, intelligent infrastructure for smarter business operations. Get ready for faster decisions, better visibility, and total traceability powered by one of the most trusted names in RFID.
Physical Specification | Dimension | 305*305*75 mm |
|---|---|---|
Material | ABS+ Die cast aluminum | |
Weight | 2 kg | |
Color | White | |
RFID Specificiation | Air Interface Protocol | EPC Global UHF Class 1 Gen 2, ISO 18000-6C |
Operating Frequency | US (902-928 MHz) EU (865-868 MHz) | |
Chip | Impinj E710 | |
RF Output Power | 0-33 dbm (Adjustable) | |
Built In Antenna | 9 dBi | |
Polarization | Circular | |
Reading Distance | 0-20 meters (Depend on tag performance and operating environment) | |
Special Functions | Support password/mask function | |
Working Mode | Active mode Answer mode Trigger mode | |
RSSI | Support | |
Data Communication | Standard Interface | RS232, Wiegand, Relay |
Optional Interface | TCP/IP, POE, WIFI, USB, TTL, RS485, etc. | |
Power Supply | 12V 2A | |
Reading Alarm | Buzzer | |
Indicator Light | Strip light (Red and Green) | |
Environment Specification | Mounting Methods | Screw, bracket |
IP Rating | IP 65 | |
Operating Temperature | -10°С to +55 °С | |
Storage Temperature | -20°С to +75°С | |
Other Specification | Package | 1 pc/box |

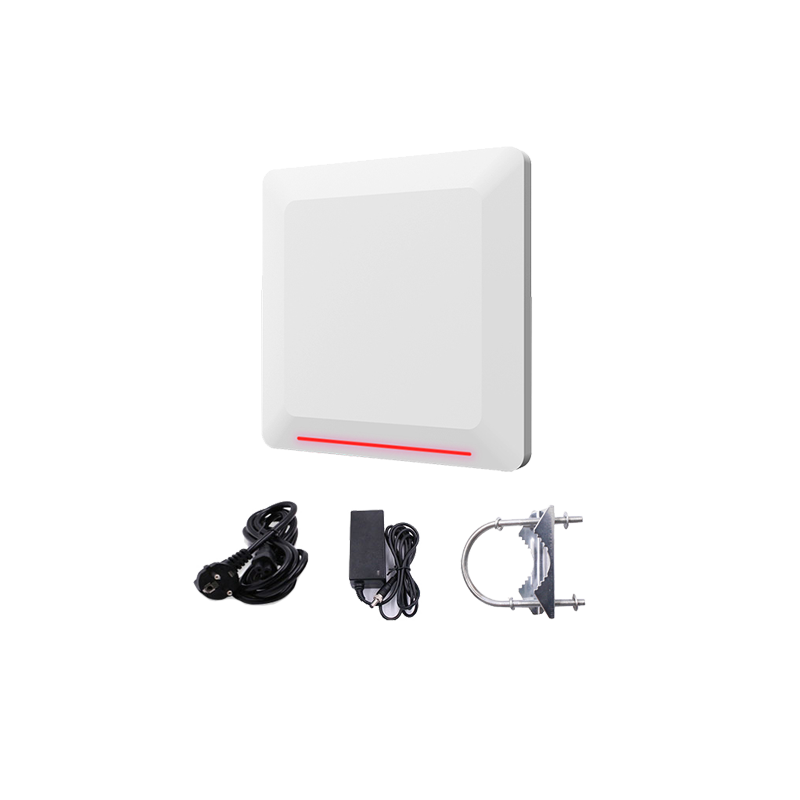

Accessories | Install bracet, power adapter, and plug (US, EU,CHN) | |
Personalization | Pre-print Logo / Barcode / QR / Series number, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHS Approved | |
Application | Parking lot managment, warehouse managment, etc. |
