Our RFID Baggage Tracking solution is designed to revolutionize baggage tracking in airports and transport hubs. Using advanced RFID technology, this system enables real-time tracking of luggage, improving efficiency, reducing loss, and enhancing security throughout the travel process.
Perfect for airports, airlines, and transportation services, RFID Baggage Tracking offers a comprehensive solution to streamline baggage handling, enhance security, and improve the passenger experience.
Physical Specification | ||
|---|---|---|

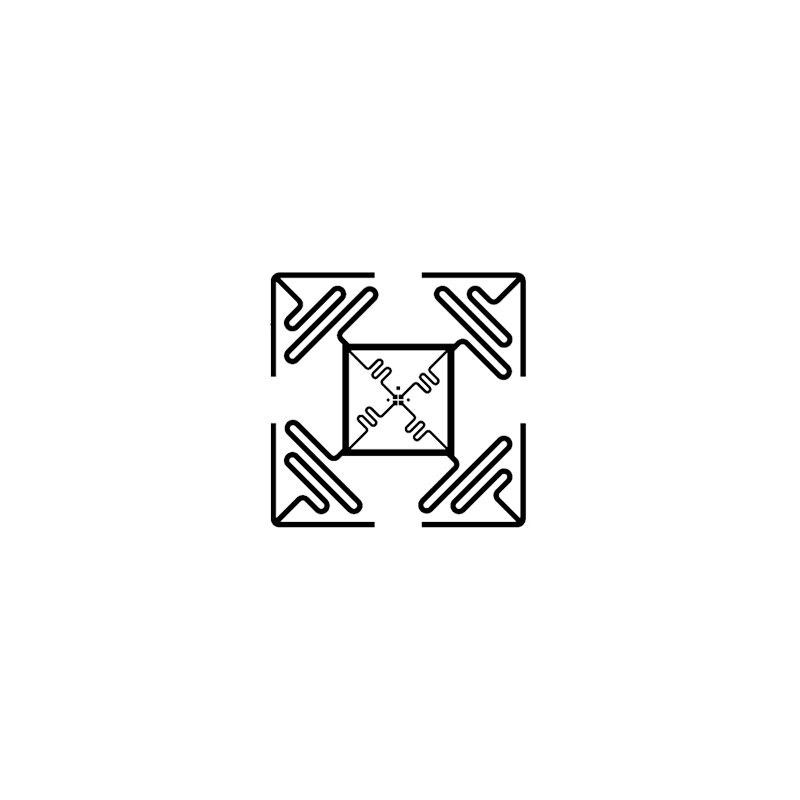

Item | SRU4444 | |
Antenna size | 44*44 mm | |
Tag size | 47*47 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | Impinj Monza 4E, Impinj Monza 4D, Impinj Monza 4i, Impinj Monza 4QT | |
Memory | Monza 4QT: EPC-512 bits; User-128 bits; TID-96 bits Monza 4E: EPC-128 bits; User-496 bits; TID-96 bits Monza 4D: EPC-32 bits; User-128 bits; TID-96 bits Monza 4i: EPC-480 bits; User-512 bits; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 1 m to 7 m | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Used for logistics, clothing, baggage tickets, etc |
