RFID for library books revolutionizes how libraries manage, secure, and track their collections. By embedding compact, high-frequency RFID tags into each book, libraries can automate check-in/out processes, speed up inventory audits, and enhance anti-theft protection — all while improving the reader experience.
These HF (13.56 MHz) RFID tags, compliant with ISO 15693 or ISO 18000-3, are specifically designed to function reliably on paper, hardcover, or softcover surfaces without interfering with the book’s usability or shelf arrangement.
Discreet Design: Ultra-thin, flexible RFID labels that fit inside the front or back cover without affecting readability.
Fast Check-In/Out: Enable self-service kiosks and instant multi-item scans for improved patron convenience.
Automated Inventory: Use handheld RFID readers or fixed systems to scan hundreds of books in seconds — no line-of-sight needed.
Anti-Theft Integration: Seamlessly connects with RFID-enabled EAS (Electronic Article Surveillance) gates at library exits.
Durability & Reusability: Long-lasting, writable memory blocks for item identification, circulation, or even re-tagging.
Public & University Libraries: Manage large-scale collections with minimal manual labor.
School Libraries: Simplify textbook tracking and student checkouts with intuitive RFID systems.
Specialty Archives: Protect and monitor rare or high-value books with traceable digital identity.
Mobile Library Units: Perform instant inventory checks or lending updates on the move.
With RFID technology, libraries gain operational efficiency, accurate reporting, and an enhanced user experience — all while reducing staff workload and improving service delivery.

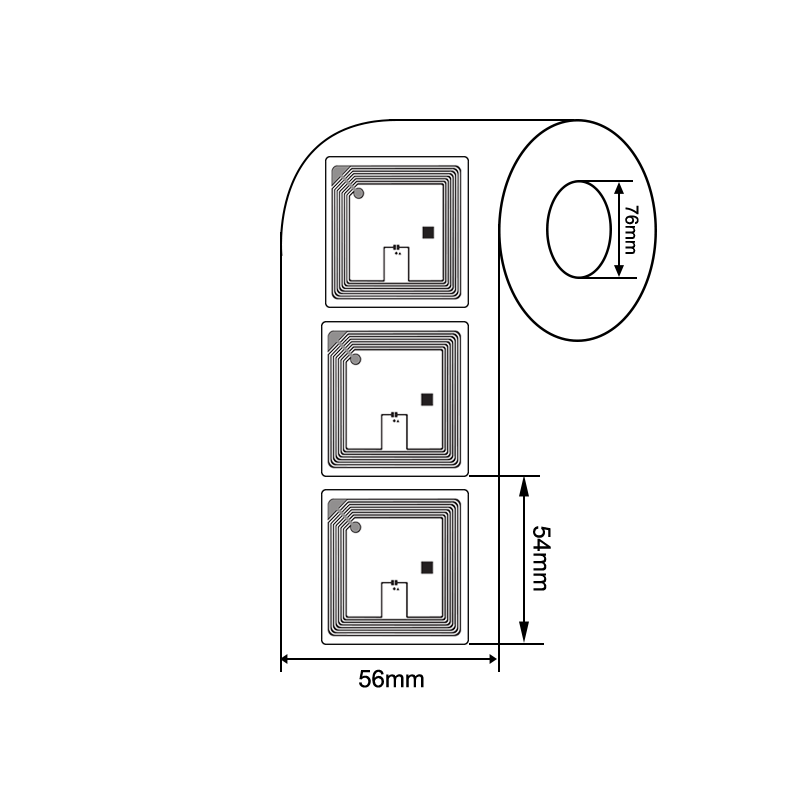

Physical Specification | ||
|---|---|---|
Item | SRH4545 | |
Antenna size | 45*45 mm | |
Tag size | 50*50 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 15693 |
Operating Frequency | 13.56 MHz (HF) | |
IC Type | NXP ICODE SLIX, NXP ICODE SLIX2 | |
Memory | ICODE SLIX: EEPROM-1024 bits (128 bytes) ICODE SLIX2: EEPROM-2560 bits (320 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0.5 m to 0.8 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Libary automate check-in/out , etc. |
