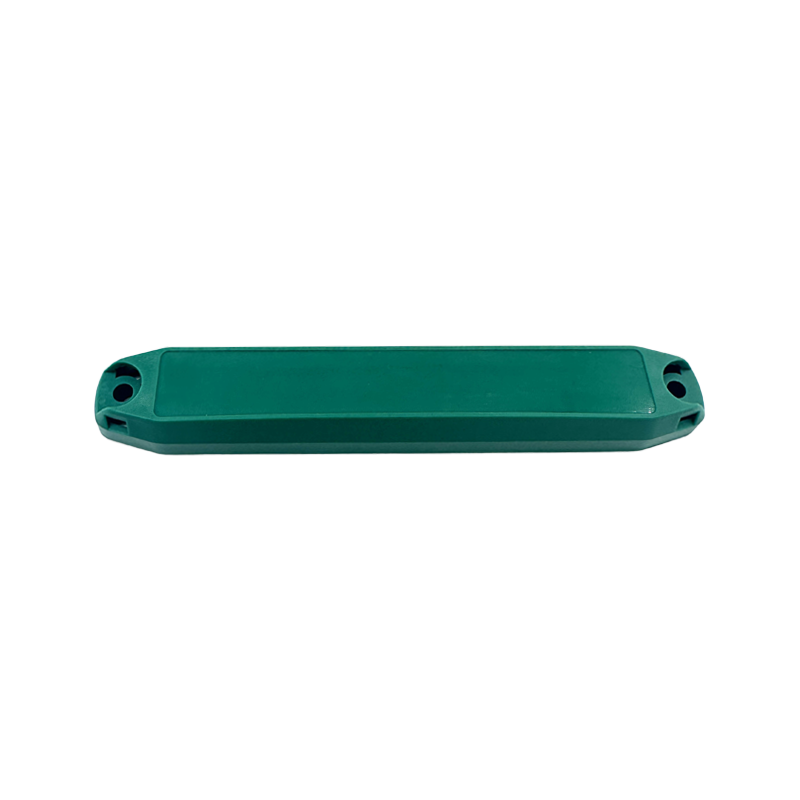

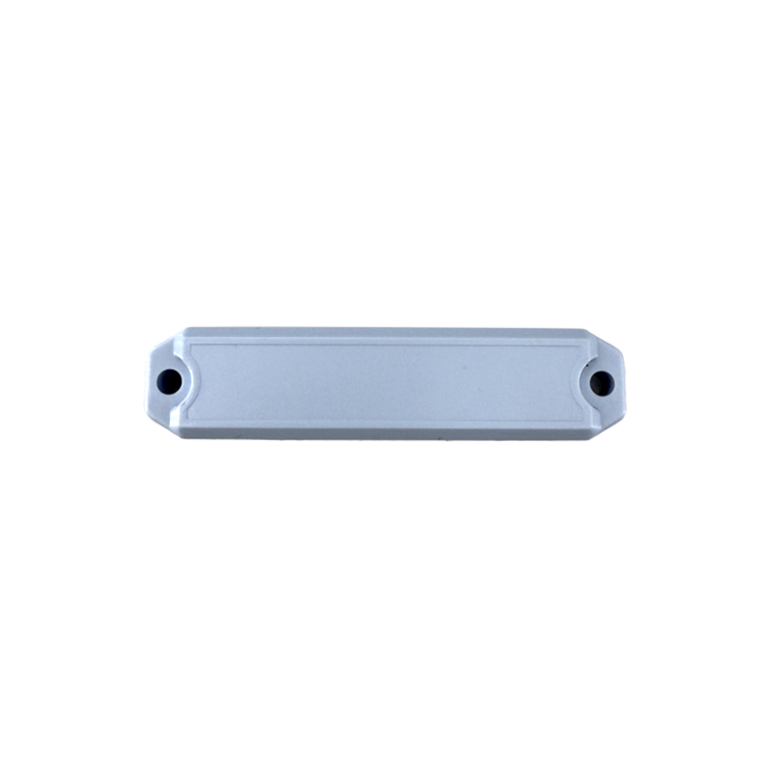

SEIKO’s RFID Metal Labels is a rugged, ultra-high-frequency RFID solution engineered specifically for metal surfaces. Combining advanced RFID technology with industrial-grade materials, it delivers reliable, long-range identification even in the most demanding environments.
Core Advantages:
Metal-Optimized Antenna Design – Patented structure eliminates interference for stable reads
Extended Read Range – Up to 12m (depending on reader configuration)
Extreme Environment Rated
Operating temperature: -40°C to +220°C
IP68 waterproof & dustproof
Chemical/oil resistant coating
Physical Specification | ||
|---|---|---|
Item | SRUHT155527 | |
Tag size | 155*27 mm | |
Thickness | 15 mm | |
Material | ABS | |
Adhesive | 3M 300LSE | |

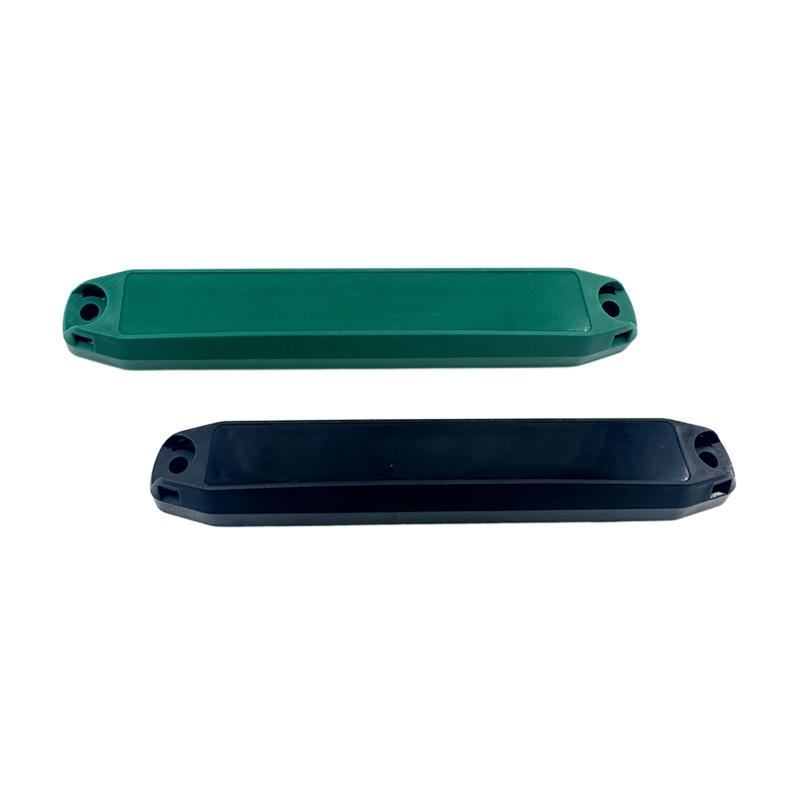

Color | White, Black, Yellow, Green, etc. | |
Weight | 35 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US) | |
IC Type | NXP UCODE 8 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | On metal: 5-20 m (Depend on reader performance and operating environment) | |
Feature | Workable on metallic curved surface | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Screw or backing adhesive |
Package Detail | 50 pcs/bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Basket Management, Shelf Management, Container Management, Equipment Asset Management，etc. |
