Maximize operational efficiency and accuracy in your warehouse with the RFID Transponder Tag, a cutting-edge solution designed for seamless inventory management, asset tracking, and process automation. Ideal for high-paced warehouse environments, this RFID tag offers reliable performance, even in demanding conditions, ensuring that your inventory is always accurate and up-to-date.
Key Features:
Robust & Long-Lasting: Built to endure the harsh conditions commonly found in warehouses, such as exposure to moisture, dust, extreme temperatures, and impact, ensuring longevity and reliable tracking.
Real-Time Data Access: Effortlessly monitor and track inventory movements with real-time data updates, reducing manual effort and human error while improving inventory accuracy.
Efficient Process Automation: Integrates seamlessly with existing Warehouse Management Systems (WMS) to automate stock tracking, order picking, and shipping processes, improving workflow and reducing delays.
Extended Read Range: Capable of being read from greater distances, allowing for fast scanning of goods in large storage areas and on crowded shelves, speeding up operations.
Customizable Designs: Available in a variety of sizes, materials, and performance options to meet the specific needs of different warehouses and industry applications.
Enhanced Security: Ensures data protection with encrypted communication, providing secure and confidential management of inventory data.
Simplify your warehouse management and enhance operational accuracy with our RFID Transponder Tags, designed to provide quick, reliable, and secure tracking for your entire inventory.
Physical Specification | ||
|---|---|---|

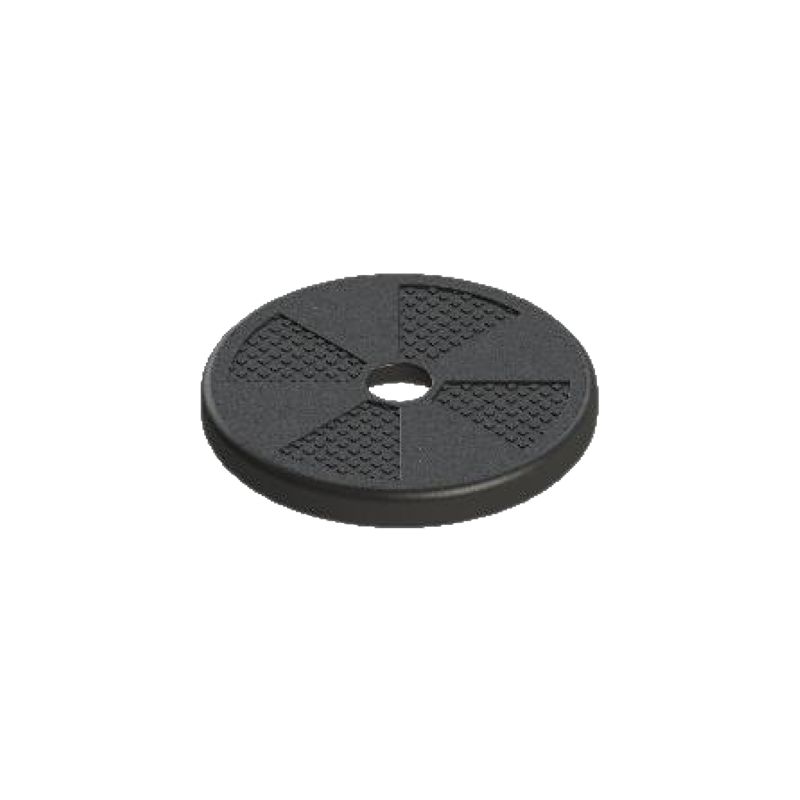

Item | SRTPD3003 | |
Tag size | Diameter 30 mm | |
Thickness | 3 mm | |
Material | PPS | |
Adhesive | 3M 300LSE | |
Color | White, Black, etc. | |
Weight | 3.5 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2, ISO/IEC 15693, ISO/IEC 11784/85 |
Operating Frequency | 902-928 MHz (US), 13.56 MHz (HF), 134.2 KHz (LF) | |
IC Type | NXP UCODE 9, NXP ICODE SLIX, EM4305 | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits, ICODE SLIX: EEPROM-1024 bits (128 bytes), EM4305: EEPROM-512 bits (64 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0-20 cm (Depend on tag performance and operating environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +120 °C / -40 °F to +248 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Screw or backing adhesive |
Package Detail | 100pcs /bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Logistics Tracking Management,Industrial Automation Process Control,Manufacturing Production Process Control,Warehouse Management Oil and Gas Industry,etc. |
