What is the Tag Master Sticker?
The Tag Master Sticker is a versatile, high-performance adhesive tag embedded with either RFID (Radio-Frequency Identification) or NFC (Near Field Communication) technology. It’s a powerful, programmable chip in a sleek, durable sticker form factor, ready to turn any item, document, or surface into a trackable, interactive smart object.
Key Features & Benefits:
Unmatched Versatility: The Tag Master Sticker adheres securely to virtually any surface – from product packaging and file folders to equipment, luggage, and valuable personal items. Its slim profile makes it virtually invisible in application.
Plug-and-Play Programability: Easily encode each Tag Master Sticker with a unique digital identity using a compatible smartphone app or desktop encoder. Link it to digital records, URLs, instructions, or contact information in seconds.
Rapid Bulk Scanning: (RFID Version) Revolutionize your inventory and asset management. Scan hundreds of Tag Master Stickers simultaneously through materials and at a distance without direct line-of-sight, saving countless hours.
Smart Interactive Trigger: (NFC Version) Create engaging experiences. A simple tap from any modern smartphone can open instructional videos, authenticate products, launch loyalty programs, or connect to Wi-Fi—no app required for basic functions.
Industrial-Grade Durability: Designed for real-world use, the Tag Master Sticker is resistant to water, dust, oils, and extreme temperatures, ensuring reliable performance in warehouses, offices, and daily life.
Physical Specification | ||
|---|---|---|

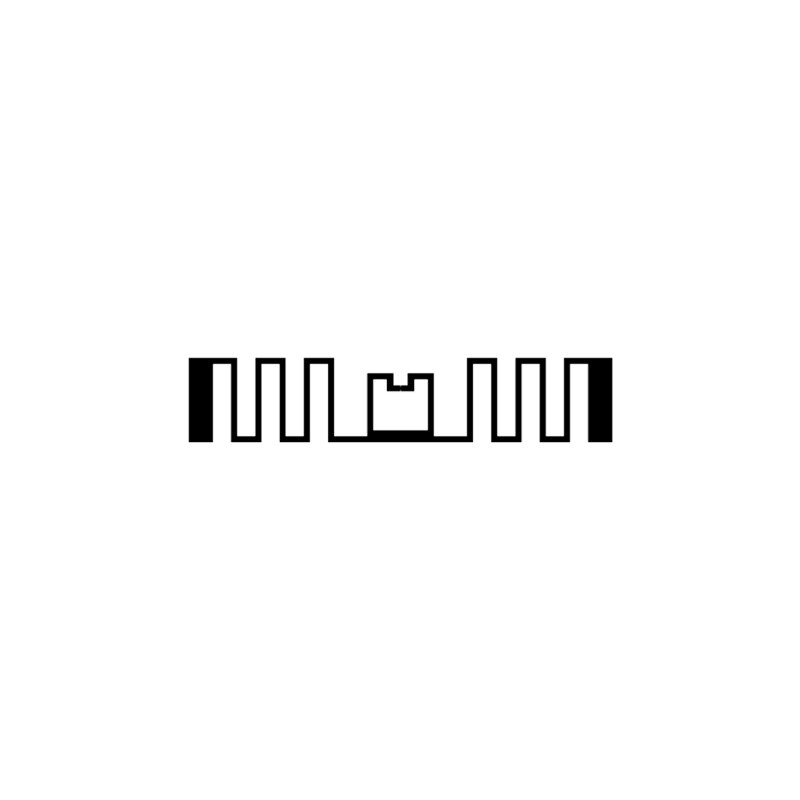

Item | SRU7014 | |
Antenna size | 70*14 mm | |
Tag size | 73*17 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | Qstar-7U | |
Memory | Qstar-7U: EPC-128(UP to 144) bits; User-128 bits; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 6 m to 10 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | CD/DVD Management,etc. |
