An RFID Transponder is a key component in radio frequency identification systems, designed to store and transmit data wirelessly when energized by an RFID reader. It contains a microchip and antenna encapsulated in durable materials, enabling it to perform accurate and contactless identification in a wide range of applications.
Whether used for access control, asset tracking, inventory management, or livestock identification, RFID transponders offer reliable performance, unique ID encoding, and compatibility with various frequency standards such as LF (125kHz), HF (13.56MHz), and UHF (860–960MHz).
Key Features:
Contactless data transmission via radio waves
Unique ID for secure and efficient tracking
Available in LF, HF, and UHF frequency ranges
Durable, waterproof, and tamper-resistant designs
Suitable for various formats: cards, keyfobs, tags, implants, etc.
Widely used in logistics, security, retail, and agriculture
The RFID Transponder is essential to building efficient, intelligent systems for modern identification and tracking needs.
Physical Specification | ||
|---|---|---|
Item | SRTPD330 | |

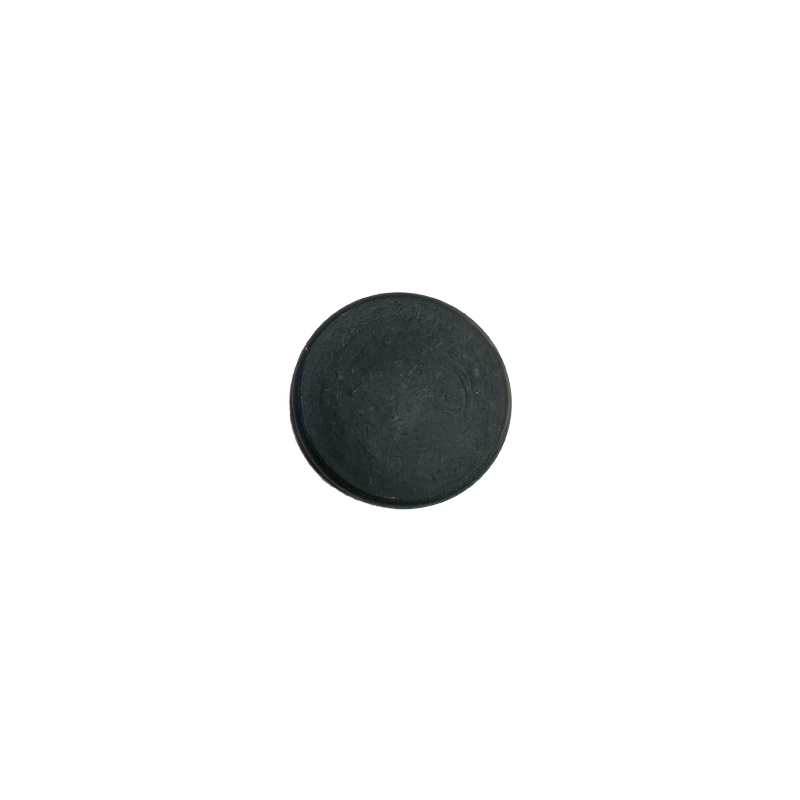

Tag size | Diameter 30 mm | |
Thickness | 3 mm | |
Material | PPS | |
Adhesive | 3M 300LSE | |
Color | White, Black, etc. | |
Weight | 2.5 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2, ISO/IEC 15693, ISO/IEC 14443-A |
Operating Frequency | 902-928 MHz (US), 13.56 MHz (HF) | |
IC Type | NXP UCODE 9, NXP NTAG 213, NXP NTAG 215, NXP NTAG 216, NXP ICODE SLIX | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits, NTAG 213: EEPROM-1440 bits (180 bytes) NTAG 215: EEPROM-4320 bits (540 bytes) NTAG 216: EEPROM-7392 bits (924 bytes), ICODE SLIX: EEPROM-1024 bits (128 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0-20 cm (Depend on tag performance and operating environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +120 °C / -40 °F to +248 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Backing adhesive |
Package Detail | 100pcs /bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Logistics Tracking Management, Industrial Automation Process Control, Manufacturing Production Process Control, Warehouse Management, Oil and Gas Industry，etc. |
