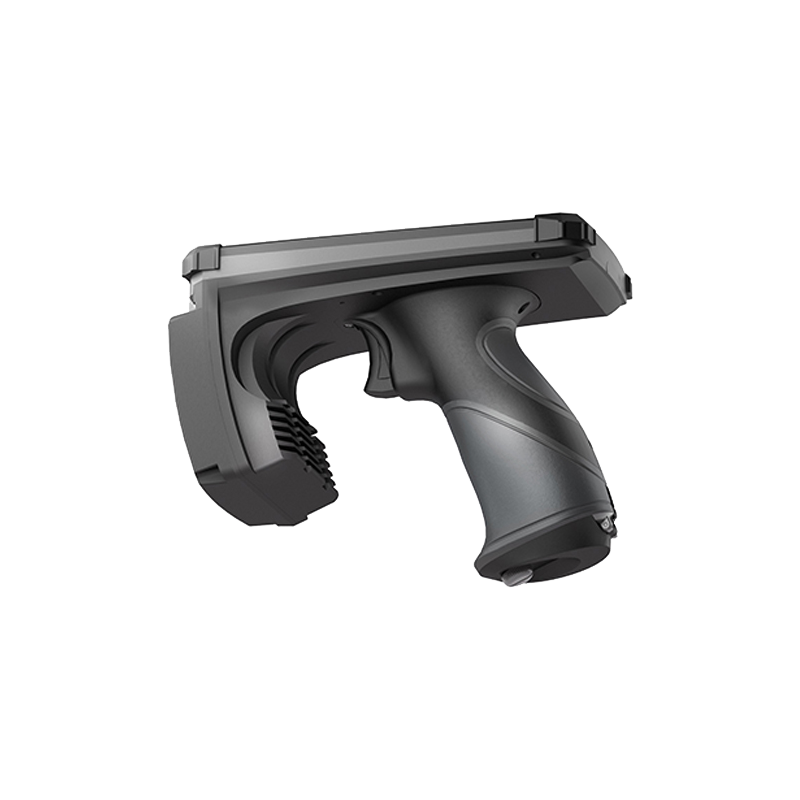

The UHF Handheld Reader is a powerful and portable RFID solution designed for rapid, high-efficiency asset management and tracking. Whether you’re managing inventory, controlling logistics, or monitoring assets across various industries, this handheld device combines advanced UHF technology with an ergonomic design to provide seamless performance and superior mobility.
Key Features:
Long-Range Scanning: Capable of reading RFID tags from a distance, allowing for faster inventory checks and improved asset tracking efficiency.
High-Speed Data Capture: Achieve faster scan times and real-time updates, reducing operational delays and improving workflow productivity.
Portable Design: Lightweight and ergonomic, perfect for fieldwork or environments where mobility is crucial for quick asset retrieval.
Durable Construction: Built to handle industrial conditions with resistance to dust, moisture, and shock, making it ideal for warehouses, manufacturing floors, and outdoor environments.
User-Friendly Interface: Equipped with an intuitive interface for easy operation, even for personnel without advanced technical training.
Versatile Application: From logistics and supply chain management to retail and healthcare, the UHF Handheld Reader can be used across various industries to enhance tracking and inventory processes.
Physical Specification | Material | Cast Aluminium + PC |
|---|---|---|
Dimension | 167*82*130mm, Grip 111*38*47mm | |
Weight | 615g (battery included) | |
Color | Black + Grey | |
System Specification | Operating System | Android 14.0 |
CPU | Octa-core 64-bit Cortex-A55 /up to 2.0 GHz + a 200M RISC-V Co-processor | |
NPU | 2.0 TOPS | |
GPU | G57 MC1 | |
RAM +ROM | 4G+32G / 4G+64G (Optional) | |
LCD | 5.0 inches/ 1280*720 / IPS / 180°view angle | |
Touch Screen | 1.1 mm thickness tempered glass / 10- dot touch / operable with gloves | |
Hotswapping Battery Buttons | Pistol style hotswapping battery system | |
Power / Volume | 3 ALPS buttons/ Operating force 2.5N /
Operating life 1 million cycles | |
Scan Trigger | OMRON button / Operating force 1.27N /
Operating life 10 million cycles | |
Power | 6,000mAh chargeable Ii-polymer battery | |
Card Slots | Nano SIM card slot*1 / TF card slot*1 | |
USB Interface | USB 3.0 TYPE C (OTG supported) | |
Speaker Size | 28*9*3.8mm | |
Vibration | Button style / 10mm diameter | |
Data Collections | 1D Barcode (Optional) | Optional |
1D Support | UPC/EA Symbol SE955N/Code128/
Code39/Code93/Code11/lnterleaved 2 of 5/ Discrete 2 of 5/Chinese 2 of 5/
Codabar/MSI/ RSS, etc. | |
2D Barcode (Optional) | Optional | |
2D Support | Datamatrix/QRCode/PDF417 US Planet/ UK Postal, etc. | |
UHF RFID
Engine | Chinese chip lmpinj E710 chip(Optional) | |
UHF RFID Protocol | EPC Global UHF Class 1 Gen 2 /
ISO 18000-6C / ISO 18000-6B | |
Frequency | US (902-928 MHz) EU (865-868 MHz) | |
Output Power | 0~33dBm | |
Peak Inventory Speed | > 200 tags/s | |
UHF Antenna | 4dBi circularly polarized antenna | |
Read Distance | > 12 m | |
Camera (Optional) | 13 megapixels / automatic focus / flashlight | |
Global positioning system | GPS & GLONASS & Beidou | |
Wireless Communications | WIFI | 2.4G/5G Dual-Band |
Bluetooth | Bluetooth 5.0 | |
4G | Supported | |
Environment Specification | Operating Temperature | -20° ~ +60° |
Recommended Storage | -30° ~ +70° | |
Operating Humidity | 5%RH – 95%RH (non -condensing) | |
Protection Grade | IP64 | |
Safety Drop Height | 1.6m / 5.25ft |
