Transform your operational visibility with our advanced UHF RFID Tags. Engineered for superior performance in the 860-960 MHz frequency range, these tags are the cornerstone of modern, automated identification systems. Unlike traditional barcodes, our passive UHF RFID tags enable rapid, simultaneous reading of dozens of items from a distance—without requiring a direct line of sight. This technology is designed to streamline processes, drastically reduce manual errors, and provide real-time data across your enterprise.
Key Features & Benefits
Long Read Range & Bulk Reading: Our UHF RFID tags can be read from several meters away, and a single reader can capture data from hundreds of tags within its field in seconds. This is ideal for fast-paced environments like warehouse receiving, shipping doors, and retail inventory checks.
High Durability & Variety: We offer a comprehensive portfolio of UHF RFID tags to meet any application need. Choose from flexible labels for boxes, rugged hard tags for reusable assets, on-metal tags for IT equipment or machinery, and specialized laundry tags for textile management.
Global Compliance: Our tags are designed to meet global protocol standards (such as EPCglobal Gen2) and can be configured to operate within regional frequency and power regulations (FCC, ETSI, etc.), ensuring reliable performance worldwide.
Enhanced Data Capacity: Each tag carries a unique electronic product code (EPC), allowing for individual item-level tracking. This provides unparalleled granularity in managing inventory, preventing counterfeits, and optimizing supply chains.
Cost-Effective Automation: By automating data capture, UHF RFID tags reduce labor costs, minimize stockouts and overstock, and accelerate cycle counts from days to hours, delivering a rapid return on investment.
Physical Specification | ||
|---|---|---|
Item | SRUD27 | |

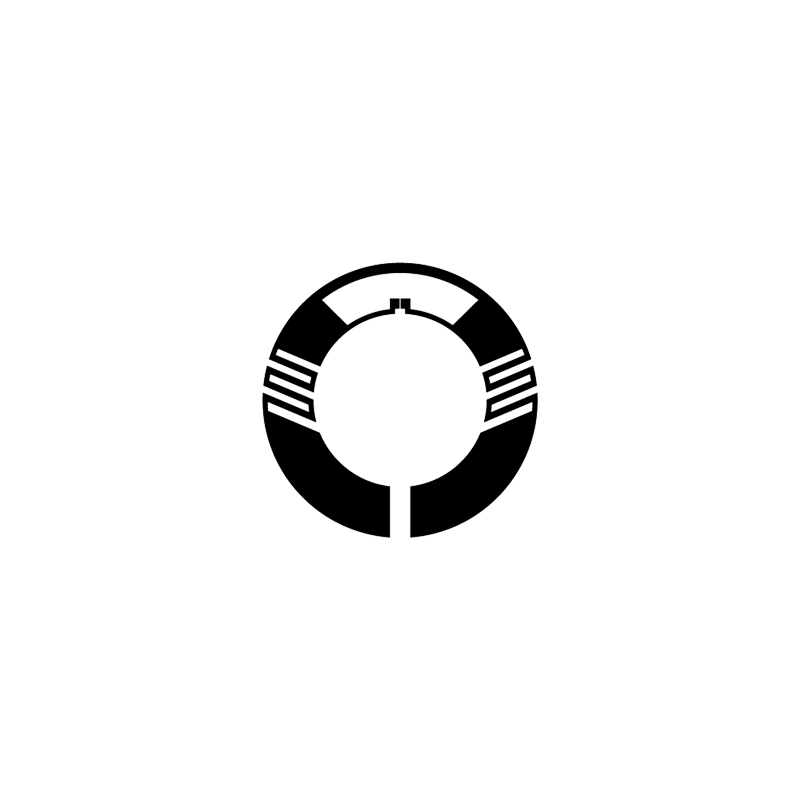

Antenna size | D27 mm | |
Tag size | D30 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | Qstar-7U | |
Memory | Qstar-7U: EPC-128(UP to 144) bits; User-128 bits; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 6 m to 10 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | CD/DVD Management,etc. |
