Search demand for rfid antenna working is rising because more companies now understand that RFID performance is not decided by the tag alone. In warehouses, factories, hospitals, laundries, retail stores, parking systems, and asset rooms, the antenna often determines whether an RFID project reads accurately, reads too widely, misses tags, or creates reliable automation data.
RFID antennas are the bridge between the reader and the tagged item. A reader generates the radio frequency signal, but the antenna controls how that signal is launched into the environment and how tag responses are received. For B2B buyers, understanding RFID antennas is essential before selecting hardware, designing read zones, or comparing supplier proposals.
What Is an RFID Antenna?
An RFID antenna is a device that transmits and receives radio frequency signals in an RFID system. In a typical UHF RFID installation, the reader is connected to one or more external antennas through coaxial cables. The antenna radiates energy into a defined area, activates passive RFID tags, and receives the signal that tags send back. In some compact readers, the antenna may be integrated inside the reader housing.
There are two antenna roles to understand. The reader antenna belongs to the infrastructure. It creates the read field and captures tag replies. The tag antenna is built into the RFID label, hard tag, card, laundry tag, or metal tag. It collects energy from the reader field and helps the chip communicate. Both antennas must work together for stable RFID performance.

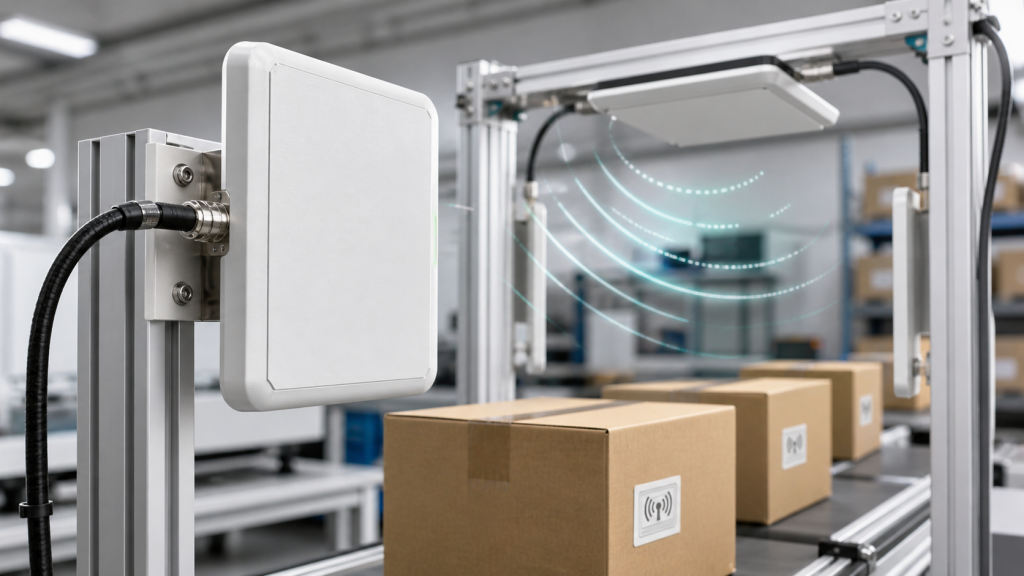

For fixed UHF RFID projects, a product such as 9dBi RFD Reader Panel Antenna is commonly evaluated when the application needs a controlled read zone, longer read distance, and stable coverage for cartons, pallets, shelves, or portal installations.
RFID Antenna Working in a Passive UHF System
In a passive UHF RFID system, the reader sends an electrical signal to the reader antenna. The antenna converts that electrical signal into an electromagnetic wave. When a passive RFID tag enters the read zone, the tag antenna captures part of that energy. The energy powers the tag chip for a short moment. The chip then returns its stored identifier by changing how it reflects the signal. This return communication is commonly called backscatter.
The reader antenna receives the reflected signal and sends it back to the reader for decoding. The reader software then reports the tag ID to a connected system such as WMS, ERP, MES, POS, CMMS, or an asset tracking platform. Industry references from GS1 and Impinj describe this same basic system: a reader, antenna, and tag work together so product or asset identifiers can be captured wirelessly without line-of-sight scanning.
This process may sound simple, but real-world RFID antenna working depends on the environment. Metal racks, liquids, dense cartons, tag orientation, reader power, cable loss, antenna gain, polarization, and nearby objects all affect whether tags respond reliably.
Reader Antenna vs Tag Antenna
The reader antenna is usually larger, powered by the reader, and installed at a strategic point. Examples include dock doors, warehouse portals, conveyor stations, retail checkout counters, smart cabinets, gates, production lines, and shelf zones. Its job is to create the correct coverage pattern for the business process.
The tag antenna is much smaller and is tuned for the label or tag structure. It may be printed or etched from aluminum, copper, or other conductive material. Its shape is not decorative. The antenna geometry affects how well the tag collects RF energy, how far it can be read, and how it behaves on cardboard, plastic, textile, glass, metal, or liquid-filled products.
A strong reader antenna cannot fully compensate for a poorly selected tag antenna. Likewise, a high-performance tag cannot solve an incorrectly installed reader antenna. Reliable RFID requires matching both sides of the wireless link.
Important RFID Antenna Parameters
Frequency. Antennas must match the RFID frequency band. UHF RFID antennas are typically used for logistics, retail, manufacturing, and asset tracking because they support longer read ranges and fast bulk reading. HF and NFC antennas are used for shorter-range applications.
Gain. Antenna gain describes how strongly the antenna focuses energy in a direction. Higher gain can support longer read distance, but it can also make the read zone narrower. A high-gain antenna is not automatically better if the application needs wide or close-range coverage.
Polarization. Linear polarized antennas can deliver strong performance when tag orientation is controlled. Circular polarized antennas are often more forgiving when tags may face different directions. Choosing the wrong polarization can create missed reads even when the reader power is high.
Beamwidth. Beamwidth describes the shape of antenna coverage. A narrow beam can target a specific lane, conveyor, or dock door. A wider beam can cover a broader shelf or work area. The correct choice depends on process design.
Connector and cable loss. Long or low-quality coaxial cables reduce RF power before it reaches the antenna. In fixed installations, cable length, connector quality, and mounting location should be planned together.
Common Types of RFID Antennas
Panel antennas. Panel antennas are common in warehouse portals, gates, shelves, and fixed reader systems. They are available in different gains and polarization types. They help create controlled read zones for cartons, pallets, and assets.
Near-field antennas. Near-field antennas are designed for short-range, controlled reading. They are useful for item-level applications, document stations, jewelry, small products, pharmaceuticals, and locations where the system must avoid reading tags too far away.
Integrated reader antennas. Some desktop, handheld, and compact fixed readers include an internal antenna. These are easier to deploy but may offer less flexibility than external antennas.
Specialized antennas. Rugged outdoor antennas, shelf antennas, floor antennas, gate antennas, and custom antenna structures can be used when a standard panel antenna does not fit the workflow.
Why RFID Antenna Design Matters
RFID antenna design controls the read zone. In a dock door, the system should read only the tagged items passing through that doorway, not items sitting nearby. On a conveyor, the antenna should read the target carton at the right moment without capturing unrelated tags behind it. In a smart cabinet, the antenna should detect items inside the cabinet, not items on the table outside.
If the antenna field is too weak, tags may be missed. If the field is too strong or poorly aimed, the reader may detect tags from the wrong location. Both problems create data errors. This is why professional RFID projects include site testing, antenna tuning, reader power adjustment, and software filtering.
Advantages of Well-Designed RFID Antennas
Higher read accuracy. Proper antenna selection improves the probability that the right tags are read at the right time.
Better process automation. Fixed antennas can automate receiving, shipping, tool checkout, production verification, retail counting, and access control when the read zone is controlled.
Reduced manual scanning. Instead of requiring staff to scan every barcode individually, RFID antennas can collect tag data as items pass through a defined area.
Improved inventory visibility. Antennas installed at shelves, gates, cabinets, and portals help businesses know where assets or products are moving.
Scalable deployment. A fixed reader can often support multiple antennas, allowing one reader system to cover several points when the layout is designed correctly.
Applications of RFID Antennas
Warehouse portals. Antennas mounted around dock doors can identify cartons and pallets as they enter or leave a facility.
Conveyor tracking. RFID antennas can verify cartons, parcels, parts, or totes at specific process points without stopping the line.
Retail inventory. Shelf or handheld reader antennas can support stock counts, replenishment, and checkout workflows.
Manufacturing. Antennas at workstations can track tools, components, work-in-progress, molds, fixtures, and finished goods.
Healthcare and laboratories. RFID antennas can support smart cabinets, asset rooms, sample tracking, and controlled inventory points.
Parking and access systems. Long-range reader antennas can identify authorized vehicles or access credentials when properly aligned.
How to Select an RFID Antenna
B2B buyers should begin with the workflow, not the catalog. The first question is where the tag must be read and where it must not be read. The second question is whether tag orientation is predictable. The third question is what materials surround the tag. These answers help determine antenna gain, polarization, mounting height, angle, beamwidth, cable routing, and reader power settings.
For example, a high-gain panel antenna may be suitable for a dock portal where cartons pass through a defined lane. A lower-gain antenna may be better for a short-range workstation. A circular polarized antenna may help when tags face multiple directions. A linear antenna may perform better when every tag orientation is controlled. Testing is the fastest way to confirm the right choice.
Installation and Tuning Tips
Map the read zone. Test where tags are detected and where they are not. Adjust antenna angle, height, power, and filtering before launch.
Control reflections. Metal surfaces can reflect RF energy and create unexpected reads. Portal frames, shelves, forklifts, conveyors, and nearby equipment should be considered during testing.
Use the right cable. Avoid unnecessary cable length and choose cables that match the power and frequency requirements.
Test real tags on real items. Antenna performance in an empty room can be very different from performance with packed cartons, liquids, metal racks, or dense clothing stacks.
Measure business results. Read rate is important, but the real goal is fewer missed shipments, faster receiving, better inventory accuracy, reduced labor, or more reliable asset control.
Common Mistakes to Avoid
One mistake is choosing the highest-gain antenna without understanding the read zone. Another is mounting antennas too close to metal without testing reflections. A third mistake is using reader power to solve every problem. More power may increase read distance, but it can also create cross-reads from neighboring areas. Good antenna design is about control, not only strength.
Companies should also avoid treating the antenna as a minor accessory. In many RFID projects, the antenna layout decides whether the software receives trustworthy data. A carefully selected antenna can make the difference between a useful RFID system and a system that requires constant manual correction.
Market Outlook
As RFID adoption expands across retail, logistics, manufacturing, healthcare, laundry, parking, and asset management, antenna design is becoming a more strategic buying topic. Companies are moving from basic tag trials to fixed infrastructure, and fixed infrastructure depends on repeatable read zones. This makes RFID antennas central to project reliability.
For buyers researching rfid antenna working, the practical conclusion is clear: RFID antennas are not just hardware add-ons. They define coverage, accuracy, and automation quality. The right antenna choice should be based on workflow, tag type, item material, read distance, mounting constraints, and real-world testing.
FAQ
What is RFID antenna working?
RFID antenna working describes how an antenna transmits radio frequency energy, activates RFID tags, receives tag responses, and helps the reader identify tagged items.
What does an RFID reader antenna do?
An RFID reader antenna radiates the reader signal into a defined read zone and receives signals returned from RFID tags. It controls coverage, read distance, and directional performance.
What is the difference between a reader antenna and a tag antenna?
The reader antenna is part of the infrastructure and creates the RF field. The tag antenna is built into the RFID tag or label and helps the chip collect energy and communicate back.
Which RFID antenna is best for warehouses?
Many warehouse portals use UHF panel antennas, but the best choice depends on read distance, door width, tag orientation, pallet material, cable length, and whether the system must avoid cross-reads.
Does higher antenna gain always mean better RFID performance?
No. Higher gain can increase read distance, but it can also narrow the read zone or cause unintended reads. The right gain depends on the workflow and installation layout.
