SRUTEMPM18

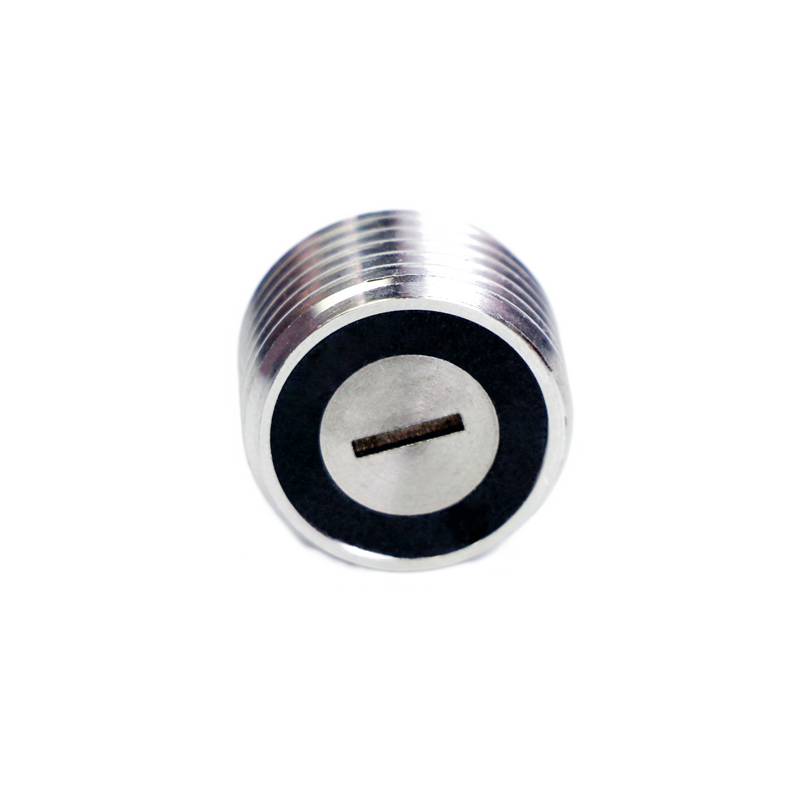

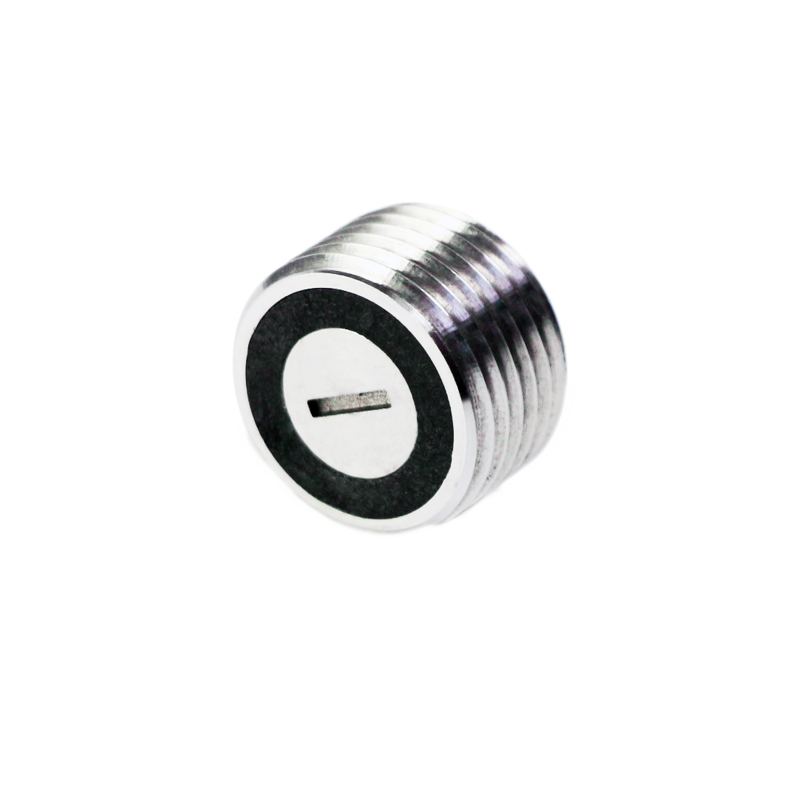

260°C High Temperature RFID Screw tags

Our 260°C High Temperature RFID Screw Tags are specifically engineered for permanent asset identification in extreme heat environments. Featuring a rugged screw-mount design, these UHF RFID tags withstand continuous exposure to 260°C (500°F) while maintaining reliable performance on metal surfaces in foundries, engine compartments, and industrial heating systems.

Key Features & Benefits

  • Industrial Screw Mounting – M6/M8 stainless steel screw provides secure permanent attachment
  • Extreme Heat Resistance – Continuous operation at 260°C (500°F), peak resistance to 300°C (572°F)
  • Optimized Metal Performance – Special ferrite layer prevents RF interference on metal surfaces
  • Long-Range UHF RFID – Up to 8m read distance (dependent on reader configuration)
  • Rugged Construction – High-purity alumina ceramic housing withstands thermal shock
  • Maintenance-Free – No performance degradation after repeated heat cycles
INQUIRY
INQUIRY
Datasheet
Physical Specification
Item
SRUTEMPM18
Tag size
D18 mm
Thickness
11 mm
Material
304 stainless steel
Adhesive
N/A
Color
White, etc.
Weight
13.5 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
NXP UCODE 8
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
90 cm, US (902-928MHz)
80 cm, EU (865-868MHz)
Read Range
Handheld Reader
35 cm, US (902-928MHz),
35 cm, EU (865-868MHz)
Feature
High Temperature resistance
Environmental Specification
Operating Temperature
-50°С to +260°С / -58 °F to +500 °F
Survival Temperature
-50°С to +260°С, +300 °С 100 hour
Peak Temperature
a. Withstand 300°С for 100 hours continuously without damage.
b. Withstand 280°С for 1000 hours continuously without damage.
c. Withstand 260°С for 2000 hours continuously without damage.
d. Withstand -20°С for 8 hours then 260°С for 16 hours per day, 80 days continuously without damage.
e. Withstand from 150°С to -40°С, 7.5 cycles per day, 80 days continuously with total 600 cycles without damage.
f. Withstand 260°С for 100 hours continuously then soaking in 2 meters depth water for 48 hours, without seepage or damage
IP Rating
IP68
Other Specification
Installation
Screw
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
NOT Free
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Mould processing, Automotive Production, Industrial Manufacturing, etc
