SRUTEMP2626

Chemical Resistant And Anti Metal RFID Tag

Our Chemical Resistant & Anti-Metal RFID Tags combine durable material engineering with high-performance UHF RFID technology to deliver reliable asset tracking in the most demanding industrial environments. Specifically designed to withstand chemical exposure while maintaining optimal performance on metal surfaces, these tags are ideal for oil & gas, chemical processing, manufacturing, and other challenging applications.

Key Features:

  • Chemical Resistance – Withstands exposure to oils, solvents, acids, and alkalis without degradation
  • Anti-Metal Design – Specialized backing eliminates interference for stable read performance on metal assets
  • High Temperature Tolerance – Operates in temperatures up to 150°C+ (custom high-temp versions available)
  • Rugged Construction – IP67/IP68-rated housing protects against moisture, dust, and physical impacts
  • Long-Range UHF Performance – Read distances up to 8-12 meters (depending on environment and reader)
INQUIRY
INQUIRY
Datasheet

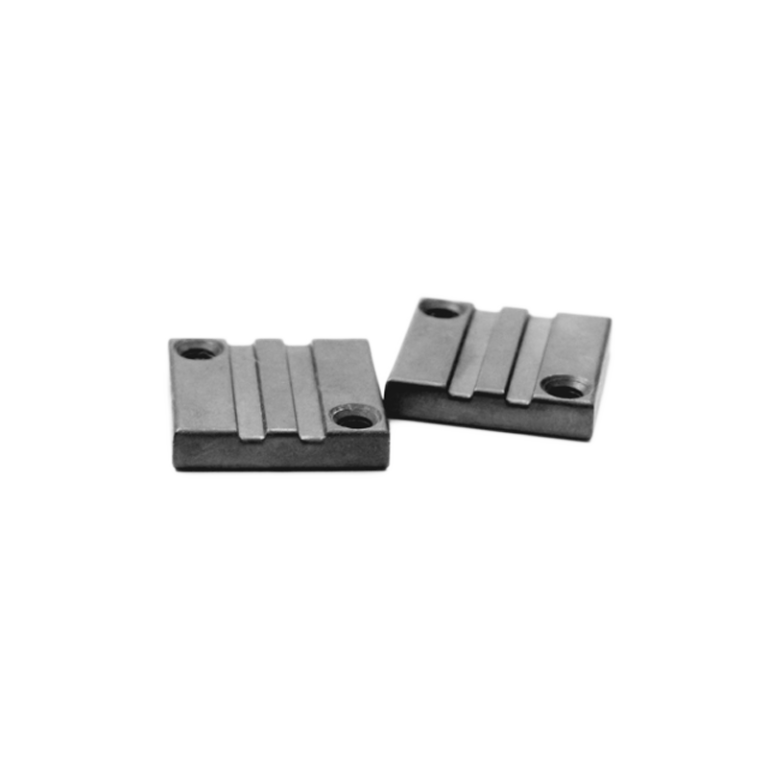

Chemical Resistant And Anti Metal RFID Tag
Physical Specification
Item
SRUTEMP2626
Tag size
26*26 mm,Hole: D4 mmx2
Thickness
5.5 mm
Material
PPS
Adhesive
N/A
Color
Black, etc.
Weight
6.6 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
Alien Higgs 3
Memory
Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
US: 260 cm; EU: 250 cm, On metal
US: 130 cm; EU: 120 cm, Off metal
Read Range
Handheld Reader
US: 190 cm; EU: 150 cm, On metal
US: 100 cm; EU: 90 cm, Off metal
Feature
High Temperature resistance, Resist fuel B, mineral oil, petroleum, salt mist, vegetable oil
Environmental Specification
Operating Temperature
-40 °C to +100 °C / -40 °F to +212 °F
Survival Temperature
230°С for 30 minutes, 180°С for 120minutes
Peak Temperature
NOT Available
IP Rating
IP68
Other Specification
Installation
Screw
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Mould processing, Automotive Production, Industrial Manufacturing, etc
