As a professional RFID factory specializing in heat resistant tags, we manufacture rugged RFID solutions engineered for the most extreme environments — including metal-processing, sterilization, food-grade steam systems, and high-temperature industrial settings.
Our heat resistant RFID tags are built using ceramic, PPS, PEEK, or stainless steel housings, delivering consistent performance up to 260°C. We offer a full range of on-metal and off-metal options, with customizable form factors, frequencies, and chip types to meet your OEM, ODM, or private label requirements.
With in-house design, tooling, and testing, we help businesses worldwide source durable, precision-built RFID tags that thrive in high-heat environments.
ISO-certified RFID tag production facility
Materials: PPS, Ceramic, PEEK, Stainless Steel, FR4
Full support for custom dimensions, encoding, printing & chip integration
Heat resistance from -40°C to 260°C (short-term peaks higher)
On-metal & anti-interference designs for reliable signal transmission
High-volume capacity + rapid prototyping for pilot projects
Physical Specification | ||
|---|---|---|

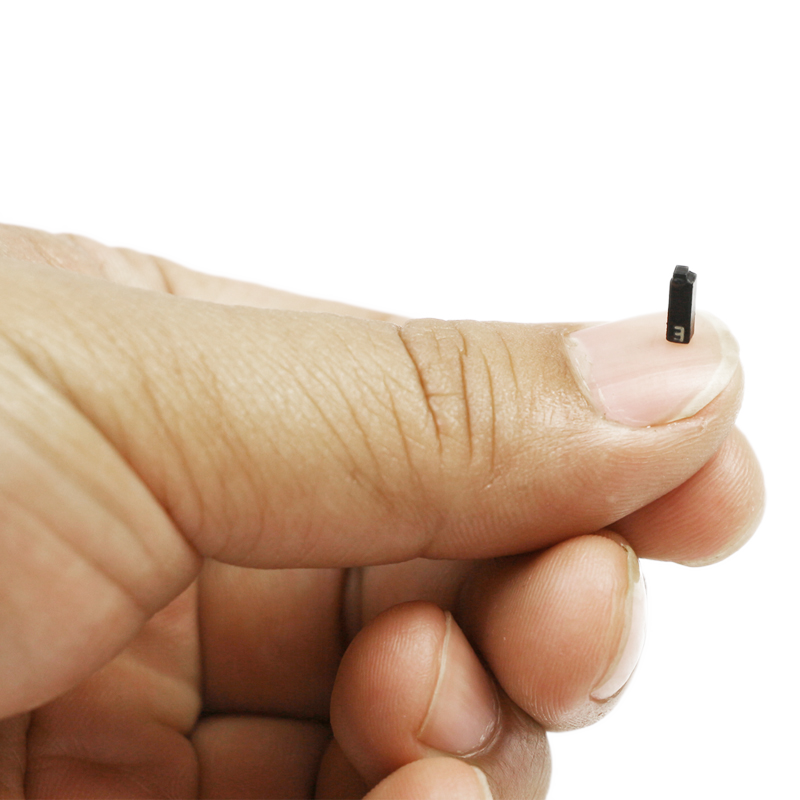

Item | SRUCER0602 | |
Tag size | 6*2 mm | |
Thickness | 2 mm | |
Material | Ceramic | |
Adhesive | 3M 300LSE, N/A | |
Color | Black, etc. | |
Weight | 0.3 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US), 865-868 MHz (EU) | |
IC Type | NXP UCODE 8, Alien Higgs 3 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits , Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed Reader) | Up to 30 cm, (US) 902-928MHz, On Metal Up to 30 cm, (EU) 865-868MHz, On Metal | |
Read Range Handheld Reader | Up to 20 cm, (US) 902-928MHz, On Metal Up to 20 cm, (EU) 865-868MHz, On Metal | |
Feature | Bulk identification, Workable on metal surface, High Temperature resistance | |
Environmental Specification | Operating Temperature | -40 °C to +150 °C / -40 °F to +302 °F |
Peak Temperature | 150° C (302° F), 100 hour | |
IP Rating | IP68 | |
Other Specification | Installation | Backing adhesive |
Package Detail | 200 pcs/ESD bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Tool Tracking in Industrial Workshops,Medical Instrument Identification, etc. |
