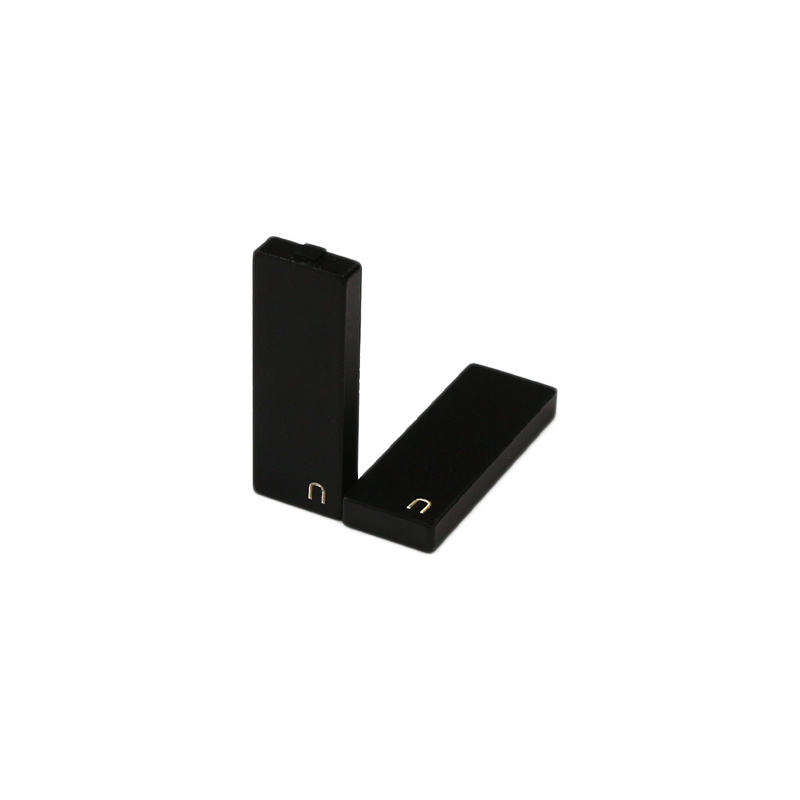

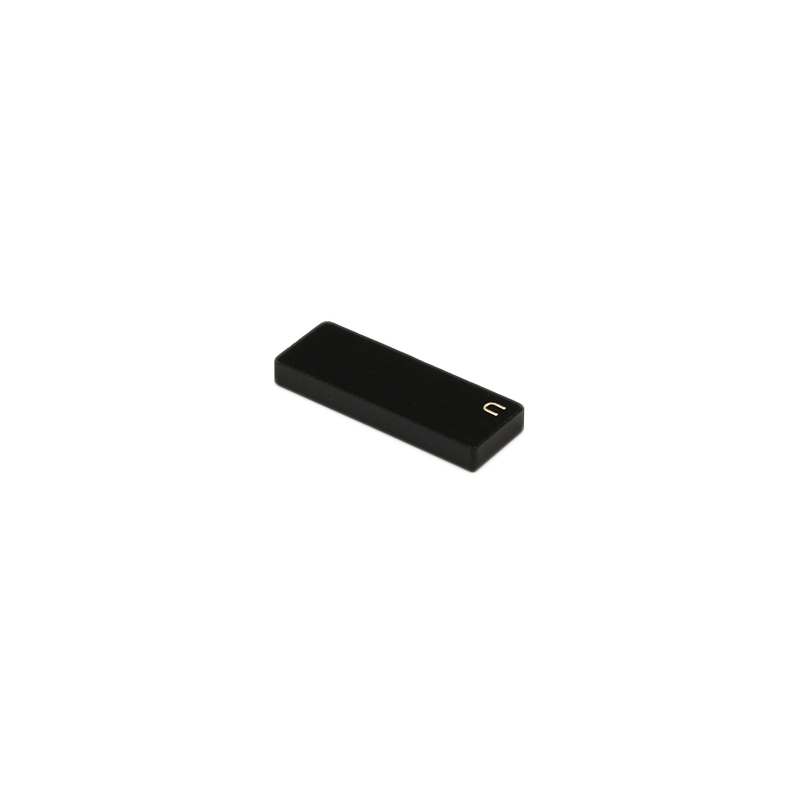

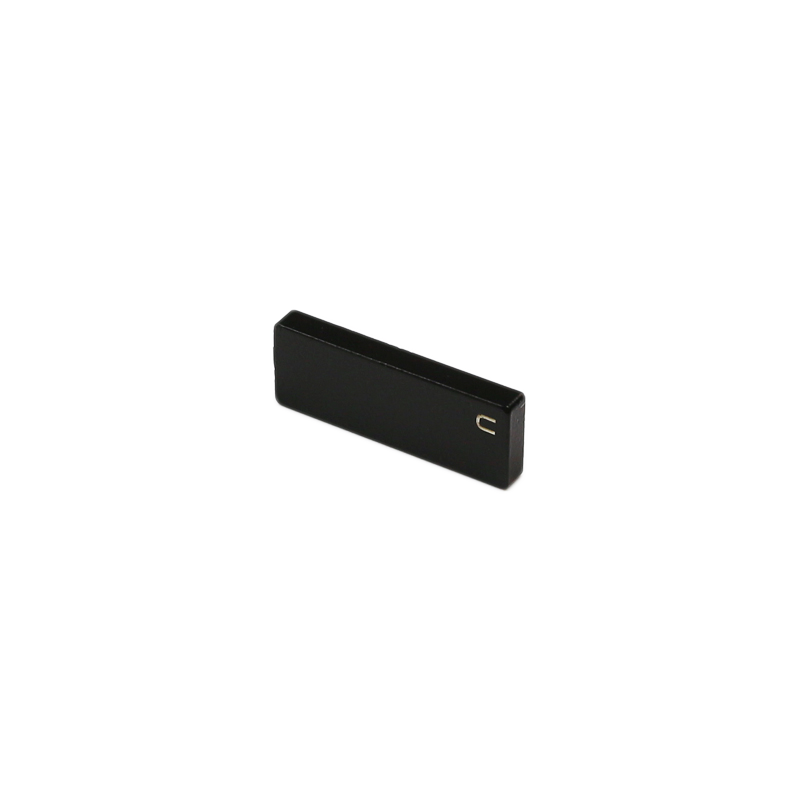

Ceramic Industrial RFID Tags are rugged, high-performance identifiers built for the most demanding environments. Engineered with industrial-grade ceramic materials, these tags deliver exceptional resistance to heat, pressure, chemicals, and metal interference—making them ideal for asset tracking in industries like aerospace, automotive, defense, oil & gas, and medical sterilization.
Available in UHF and HF frequencies, ceramic RFID tags are typically small in size yet capable of withstanding temperatures up to 250°C, aggressive cleaning processes, and prolonged exposure to metal surfaces—without signal degradation. Their compact form factor makes them perfect for embedding in tools, equipment, surgical trays, and metallic surfaces where traditional RFID fails.
High-Temperature Resistance – Operates reliably in environments up to 250°C
Optimized for Metal – Ceramic substrate allows direct-on-metal mounting with high readability
IP68 Protection – Waterproof, chemical-resistant, and pressure-washable
Compact & Discreet – Ideal for embedding in small tools and surgical instruments
Durable Bonding – Can be affixed with industrial adhesives, rivets, or embedded in cavities
Stable Signal – Consistent performance despite interference from metal or fluids
Physical Specification | ||
|---|---|---|
Item | SRUCER2509 | |
Tag size | 25*9 mm | |
Thickness | 3 mm | |
Material | Ceramic | |
Adhesive | 3M 300LSE, N/A | |
Color | Black, etc. | |
Weight | 3.8 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US), 865-868 MHz (EU) | |
IC Type | NXP UCODE 8, Alien Higgs 3 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits , Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed Reader) | Up to 420 cm, (US) 902-928MHz, On Metal Up to 420 cm, (EU) 865-868MHz, On Metal | |
Read Range Handheld Reader | Up to 290 cm, (US) 902-928MHz, On Metal Up to 290 cm, (EU) 865-868MHz, On Metal | |
Feature | Bulk identification, Workable on metal surface, High Temperature resistance | |
Environmental Specification | Operating Temperature | -40 °C to +150 °C / -40 °F to +302 °F |
Peak Temperature | 150° C (302° F), 100 hour | |
IP Rating | IP68 | |
Other Specification | Installation | Backing adhesive |
Package Detail | 200 pcs/ESD bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Tool Tracking in Industrial Workshops,Medical Instrument Identification, etc. |
