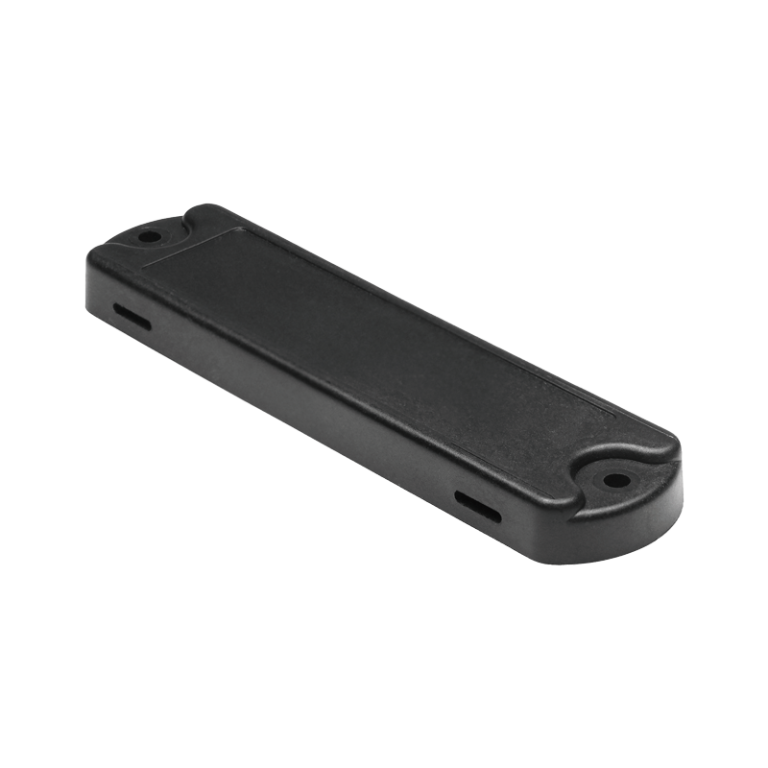

The Mini RFID Metal Tag is a compact, high-performance RFID tag designed for seamless tracking and identification of metal surfaces. Engineered with durable metal construction, it offers excellent resistance to harsh environments, including extreme temperatures, moisture, and physical impact.
Featuring high-frequency (HF) or ultra-high-frequency (UHF) RFID technology, this tag ensures reliable and long-range data transmission, making it ideal for industrial asset management, logistics, tool tracking, and equipment monitoring. Its small size allows for discreet placement without compromising performance.
Key Features:
Enhance your asset management system with the Mini RFID Metal Tag – the smart, reliable solution for industrial and commercial tracking needs.
Physical Specification | ||
|---|---|---|
Item | SRUHT4012 | |
Tag size | 40*12 mm | |
Thickness | 5 mm | |
Material | PPS | |
Adhesive | 3M 300LSE | |
Color | Black, Yellow, Green, etc. | |
Weight | 3 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US) | |
IC Type | NXP UCODE 8 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | On metal: 3-5 m (Depend on reader performance and operating environment) | |
Feature | Workable on metal surface | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Screw or backing adhesive |
Package Detail | 50 pcs/bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Robotic Arm Control, Production Line Control, Equipment Asset Management, Railway Pipeline Management, Paint Plating,etc. |
