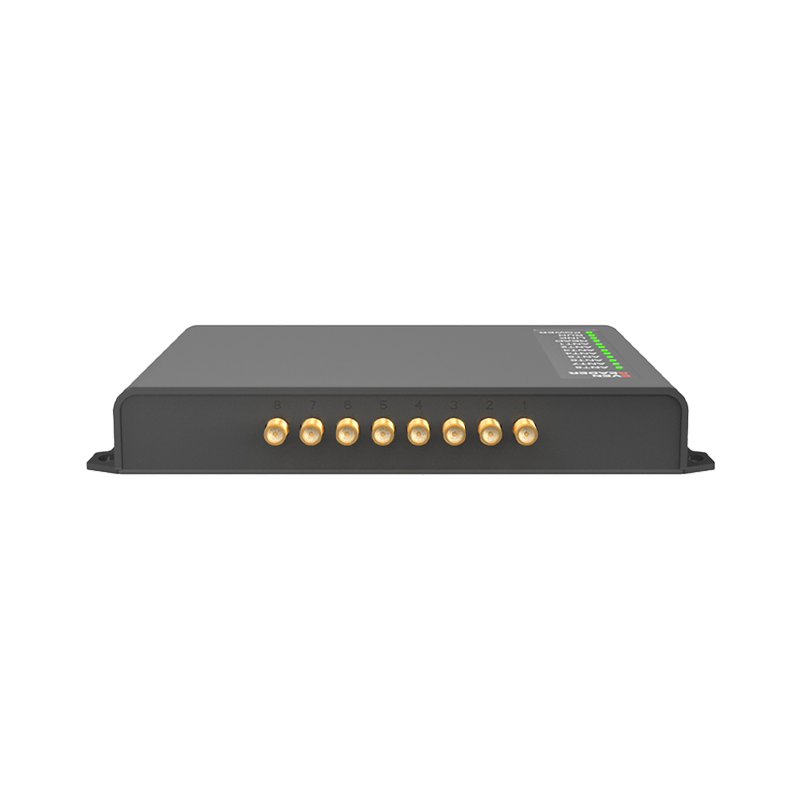

The Passive RFID Tag Reader is a cost-effective solution for asset tracking, inventory management, and access control applications that require non-powered RFID tags. Designed to read tags without needing batteries, the reader uses radio frequency waves to power the passive tags, making it an ideal solution for environments where a low-maintenance, battery-free solution is required.
With UHF and HF frequency support, our passive RFID tag readers offer a long read range, depending on the antenna used, and can easily integrate with your existing RFID infrastructure. This makes it an optimal choice for retail, warehouse management, supply chain visibility, and security systems.
Key Features:
Reads passive RFID tags without the need for batteries or power in the tag
Frequency support: UHF (860-960 MHz)
Long read range (up to 6 meters for UHF, depending on environment)
Real-time asset tracking for inventory, logistics, and manufacturing processes
Compact and durable design for use in retail, warehouse, and industrial settings
Seamless integration with Warehouse Management Systems (WMS) and other inventory software
Cost-effective and low-maintenance, as the passive tags require no battery
Physical Specification | Dimension | 184*147*26 mm |
|---|---|---|
Material | Die Cast Aluminum | |
Weight | 0.6 kg | |
Color | Black | |
RFID Specificiation | Air Interface Protocol | EPC Global UHF Class 1 Gen 2, ISO 18000-6C |
Operating Frequency | US (902-928 MHz) EU (865-868 MHz) | |
RF Output Power | 0-33 dbm (Adjustable) | |
Reading speed | 200 tags/s | |
Data cache | 600pcs @ 128bits EPC | |
Reading Distance | 0-15 meters (Depend on tag performance and operating environment) | |
Anti-collision | Quick polling and inventory of multiple antenna ports | |
Working Mode | Active mode Answer mode Trigger mode (optional) | |
RSSI | Support | |
Data Communication | Standard Interface | USB, RS232, TCP/IP, GPIO |
Optional Interface | POE (Mode A/B af), WiFi | |
GPIO Interface | 2 sets of GPI & 2 sets of GPO | |
Antenna Port | 8 SMA female | |
Power Supply | 12V 2A | |
Current consumption | 0.5~1.2A | |
Environment Specification | Mounting Methods | Screw |
IP Rating | IP 55 | |
Operating Temperature | -10°С to +60 °С | |
Storage Temperature | -20°С to +75°С | |
Other Specification | Package | 1 pc/box |
Accessories | Power adapter, plug (US, EU,CHN), Serial cable, USB cable | |
Personalization | Pre-print Logo / Barcode / QR / Series number, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHS Approved | |
Application | Parking lot managment, warehouse managment, etc. |
Related Products
Impinj E710 RFID Fixed Reader | High-Performance Asset Tracking & Inventory Management

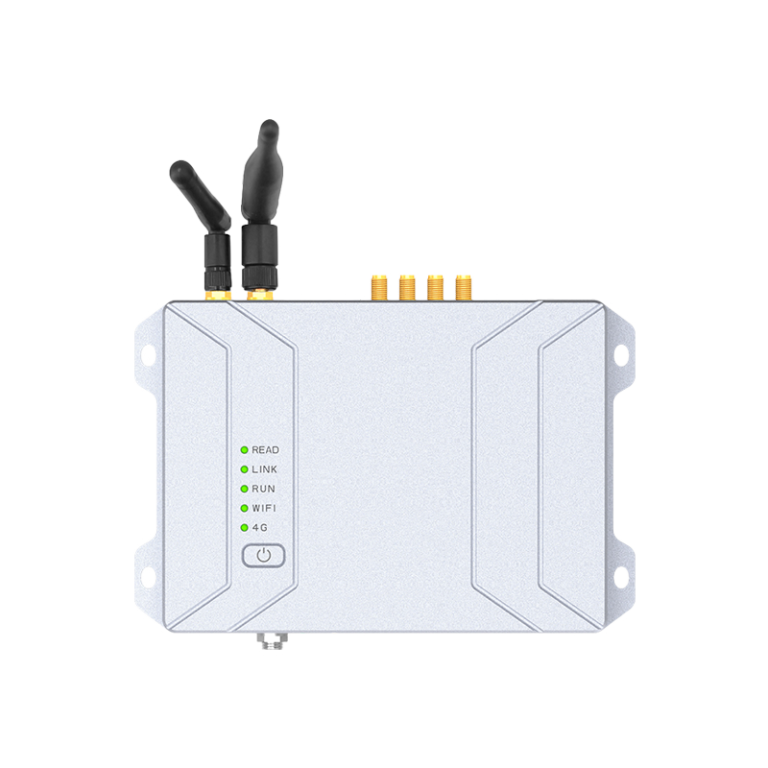

Android OS UHF RFID Fixed Reader

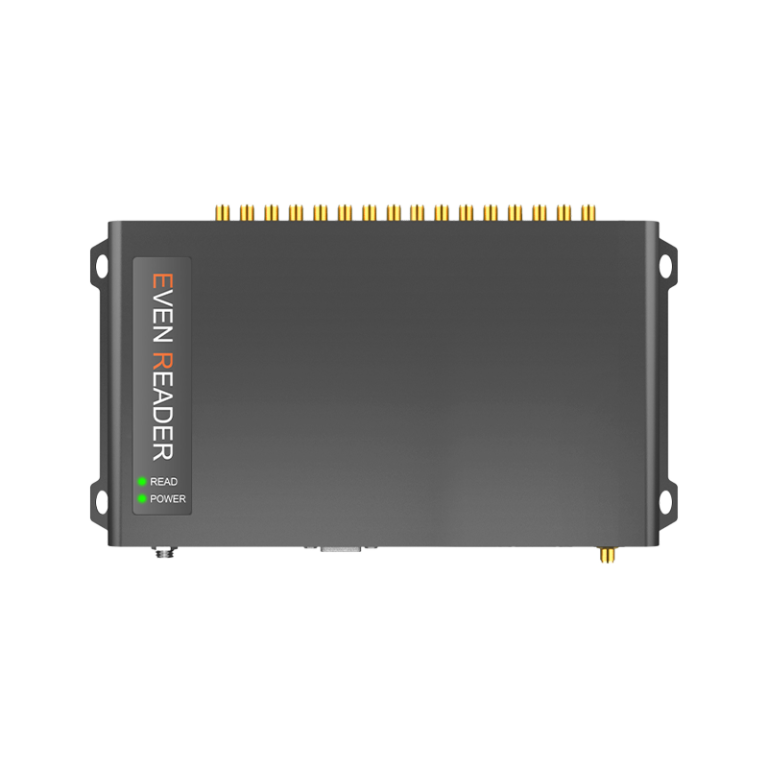

16 Port RFID UHF Tag Reader with Impinj E710
