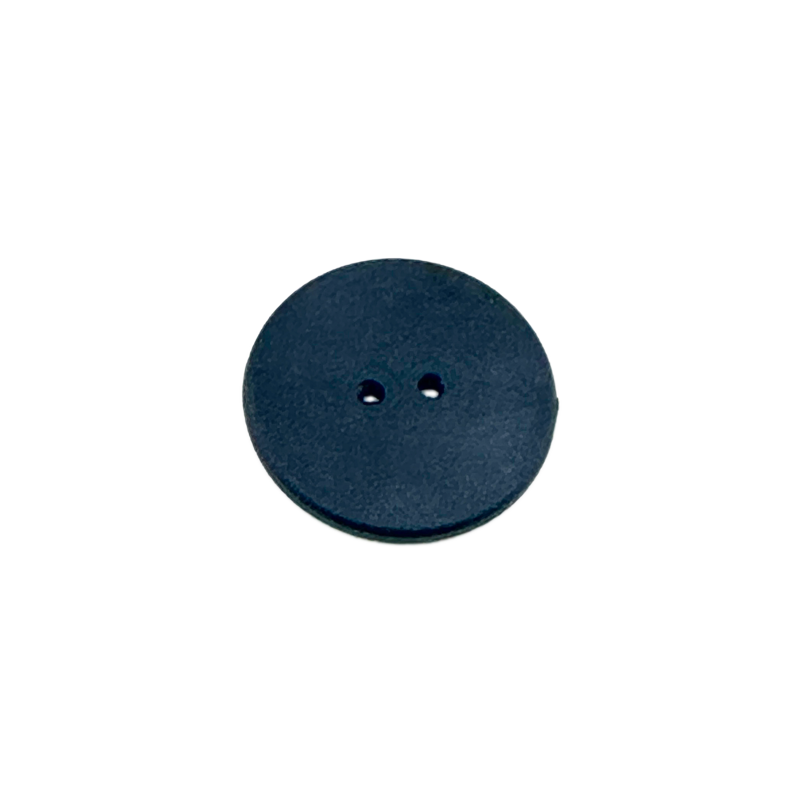

SRTPD325

Passive RFID Transponder

Unlock the potential of seamless asset tracking and inventory management with our Passive RFID Transponder. This cost-effective, efficient RFID solution is perfect for a wide range of applications, from supply chain management to asset tracking in industries like logistics, healthcare, and retail. Operating without the need for a battery, these passive transponders are lightweight, durable, and environmentally friendly, making them a sustainable choice for businesses looking to enhance operational efficiency.

Key Features:

  • No Battery Required: Powered by the energy from the RFID reader’s signal, our passive RFID transponders eliminate the need for a battery, reducing maintenance costs and offering a longer lifespan.

  • Cost-Effective: Passive RFID transponders are an affordable solution for high-volume applications, offering significant cost savings compared to active RFID tags.

  • Reliable Data Transmission: These transponders offer stable and reliable data transmission, ensuring fast and accurate asset identification and tracking in a variety of environments.

  • Durable & Long-Lasting: Built to withstand harsh conditions, these RFID transponders are resistant to moisture, dust, and temperature fluctuations, making them suitable for use in warehouses, factories, or outdoor environments.

  • Compact Design: With a small and lightweight form factor, the passive RFID transponder is ideal for embedding into products, packaging, or labels without adding bulk.

  • Wide Range of Applications: Passive RFID transponders are compatible with a variety of industries, enabling a broad range of use cases such as inventory management, access control, and asset tracking.

  • Extended Read Range: Designed for reliable performance over medium to long ranges, our passive RFID tags offer efficient tracking and easy scanning from a distance, even in complex or cluttered environments.

Enhance operational efficiency and streamline tracking processes with our Passive RFID Transponder, a reliable, cost-effective solution for businesses looking to embrace RFID technology.

Physical Specification
Item
SRTPD325
Tag size
Diameter 25.5 mm
Thickness
2.6 mm
Material
PPS
Adhesive
3M 300LSE
Color
White, etc.
Weight
3 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US)
IC Type
NXP UCODE 9
Memory
UCODE 9: EPC-96 bits; User-N/A; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
0-20 cm
(Depend on tag performance and operating environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +120 °C / -40 °F to +248 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification
Installation
Backing adhesive, Sewing
Package Detail
100pcs /bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Industrial Automation Process Control, Washing Machines, Garment Management,etc.
