The RFID Cylindrical Equipment Tracking is a high-performance, durable RFID (Radio Frequency Identification) tag designed for seamless tracking, inventory management, and asset identification. Its compact circular shape ensures easy attachment to various surfaces, making it ideal for retail, logistics, warehousing, and industrial applications.
Key Features:
✔ High-Frequency (HF) or Ultra-High-Frequency (UHF) – Supports fast and accurate data transmission.
✔ Durable Construction – Made from robust materials (e.g., ABS, PVC, or epoxy) for resistance to water, dust, and harsh environments.
✔ Long Read Range – Ensures reliable scanning from a distance (range varies by model).
✔ Customizable Memory – Supports EPC, TID, and user memory for flexible data storage.
✔ Adhesive or Embedding Options – Can be attached via adhesive backing, screws, or embedded into objects.
✔ ISO Compliance – Meets industry standards (e.g., ISO 15693, ISO 18000-3 for HF; ISO 18000-6C for UHF).
Applications:
Retail & Inventory Management – Track products, prevent theft, and streamline checkout.
Asset Tracking – Monitor equipment, tools, and high-value items.
Access Control – Secure entry systems for offices or events.
Industrial Automation – Integrate with IoT and smart manufacturing systems.
Why Choose Our RFID Circular Tag?
✅ Cost-Effective – Bulk pricing available for large deployments.
✅ Customizable – Print logos, barcodes, or QR codes on the surface.
✅ Global Compatibility – Works with most RFID readers worldwide.
Order Now:
Available in bulk quantities with customizable options. Contact us for OEM/ODM solutions!
Physical Specification | ||
|---|---|---|
Item | SRUHTD48 | |

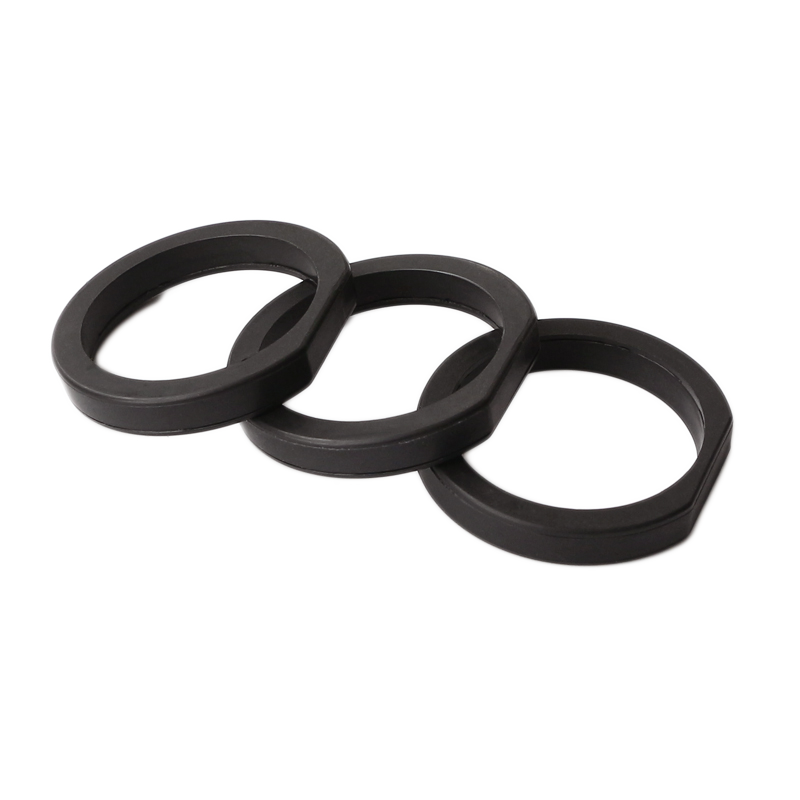

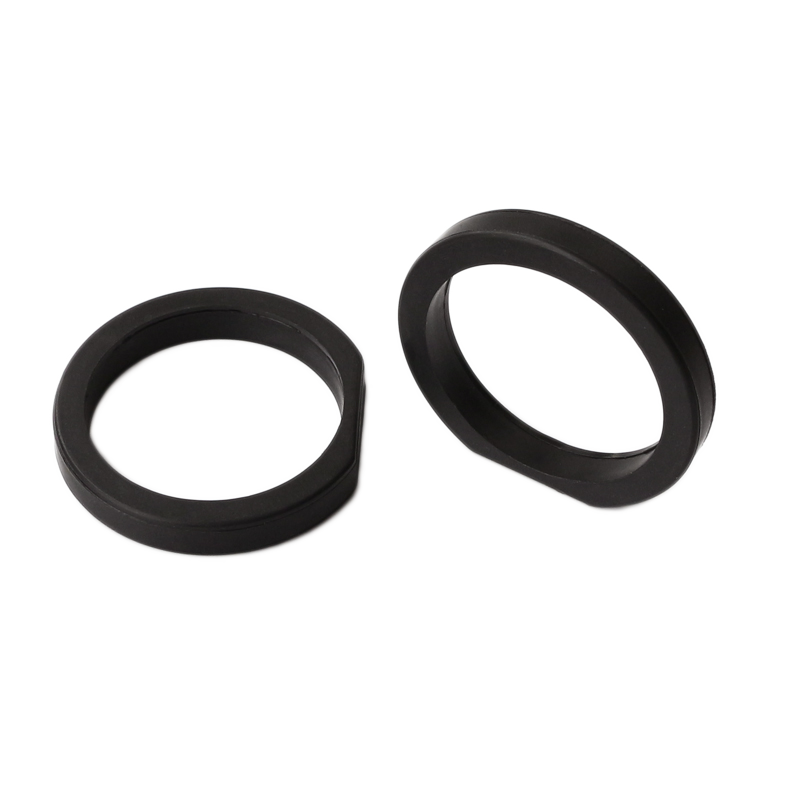

Tag size | D48 mm | |
Thickness | 7 mm | |
Material | PC | |
Adhesive | N/A | |
Color | Black, etc. | |
Weight | 4.5 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US) | |
IC Type | NXP UCODE 8 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range
(Fixed Reader) | Up to 3.8m, (US) 902-928MHz, on metal | |
Read Range
(Handheld Reader) | Up to 2.3m, (US) 902-928MHz, on metal | |
Feature | Workable on metal surface | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Topping-on |
Package Detail | 50 pcs/ESD bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Mould processing, Automotive Production, Industrial Manufacturing, etc |
