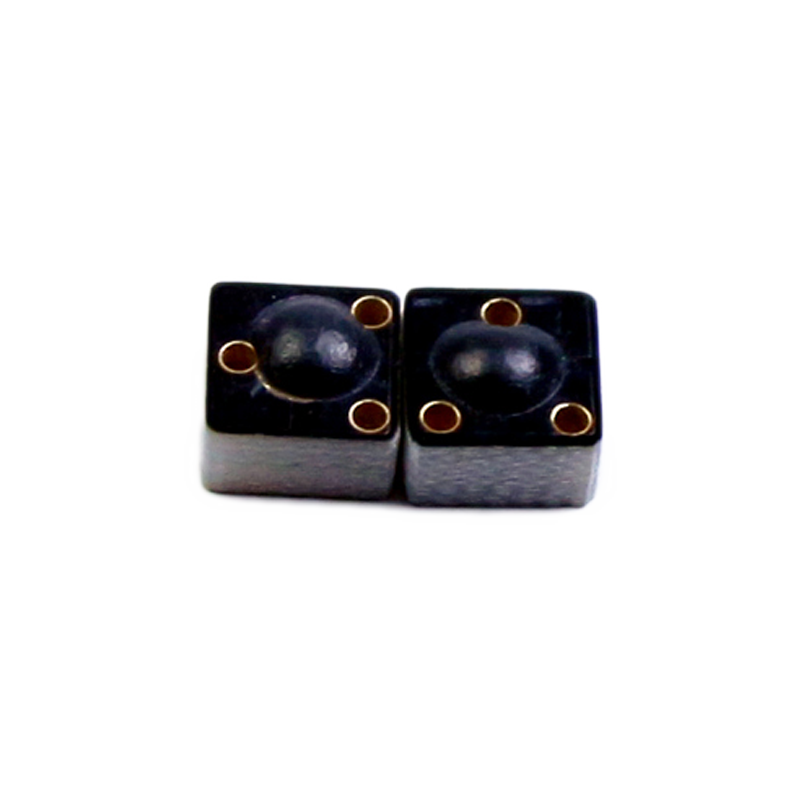

SRUPCB0606

RFID for Weapons Tracking

RFID for Weapons Tracking delivers real-time visibility, control, and accountability for firearms and tactical gear. By integrating RFID tags into weapons and using fixed or handheld readers at armories, checkpoints, or vehicles, this solution helps security forces maintain strict control over weapon issuance, return, and movement—minimizing risk, ensuring compliance, and improving audit readiness.

Key Benefits:

  • Real-Time Inventory Monitoring: Automatically detect and log every weapon inside an armory, vehicle, or secured facility—no manual scanning required.

  • Access Control Integration: Link weapon issuance with biometric or RFID-based personnel ID for secure check-out/check-in.

  • Audit Trail & Compliance: Maintain an irrefutable digital log of who accessed which weapon, when, and where—critical for forensic traceability and regulatory compliance.

  • Loss & Theft Prevention: Instant alerts for unauthorized movement, missing weapons, or breaches of geo-fenced zones.

  • Ruggedized Tagging: Use specially designed metal-mount or embedded RFID tags that endure recoil, weather, vibration, and harsh environments.

Ideal Use Cases:

  • Military Armories: Manage thousands of weapons, night vision devices, and gear with automated accountability.

  • Police Stations & Tactical Units: Track handguns, tasers, radios, and body armor issued to officers on duty.

  • Private Security Firms: Secure armory operations, limit access, and monitor asset movements across locations.

  • Correctional Facilities: Prevent internal misuse and ensure precise tracking of lethal and non-lethal equipment.

With RFID-based Weapons Tracking, you gain a digital, real-time view into your firearm inventory and movement history—strengthening operational control, enhancing personnel safety, and ensuring mission readiness.

Physical Specification
Item
SRUPCB0606
Tag size
6*6 mm
Thickness
4 mm
Material
PCB
Adhesive
3M 300LSE
Color
White, Black, etc.
Weight
0.5 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
NXP UCODE 8, Alien Higgs 3, Alien Higgs 9
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
, Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
110 cm, (US) 902-928MHz, On Metal
110 cm, (EU) 865-868MHz, On Metal
Read Range
Handheld Reader
80 cm, (US) 902-928MHz, On Metal
80 cm, (EU) 865-868MHz, On Metal
Feature
Workable on metal surface
Environmental Specification
Operating Temperature
-40 °C to +150 °C / -40 °F to +302 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification
Installation
Screw or backing adhesive
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, Reach Approved, etc.
Application
Military Armories Tracking, Police Stations & Tactical Units Management, Private Security Firms Equipment, etc.
