SRUG100

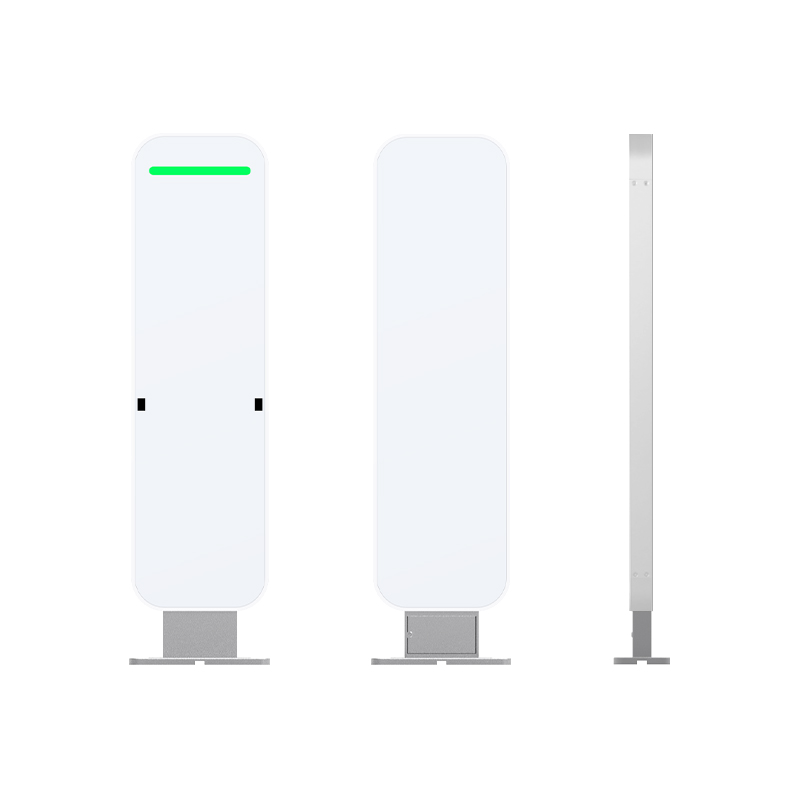

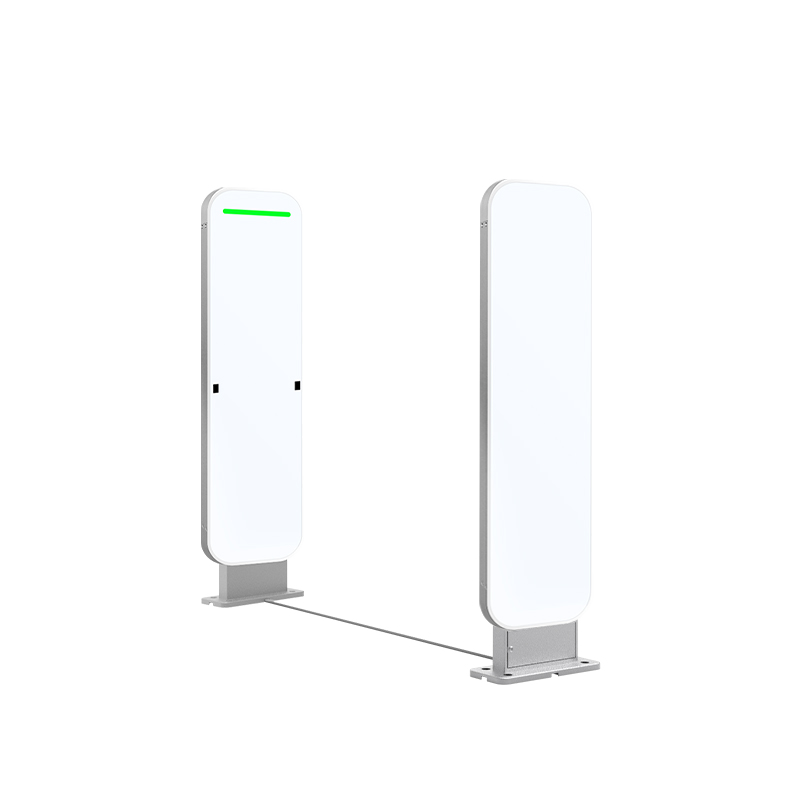

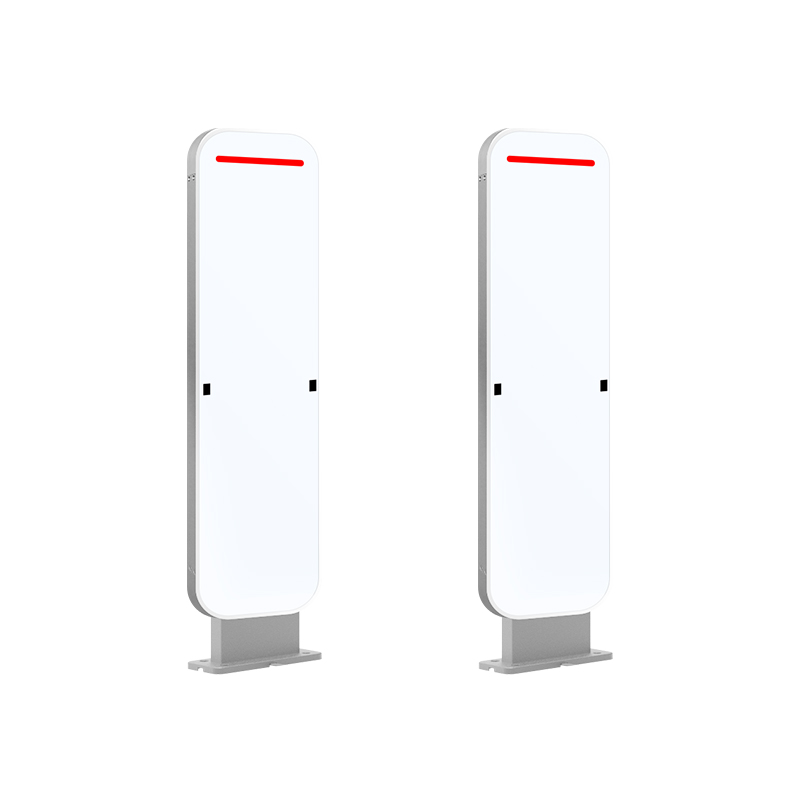

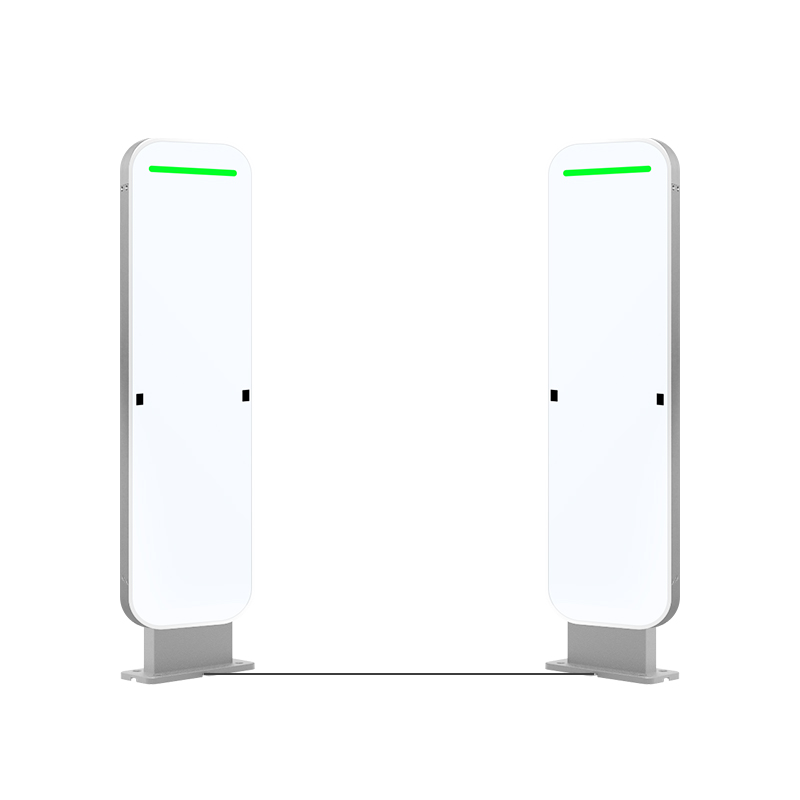

RFID Gate Reader

The RFID Gate Reader is a high-performance UHF portal reader engineered for efficient, hands-free identification and tracking of tagged assets and personnel. Equipped with multiple antenna ports and powerful read capability, it ensures accurate data capture across wide detection zones. This reader is ideal for applications such as warehouse management, logistics tracking, and access control systems. With its rugged design and easy network integration, the RFID Gate Reader provides a reliable and scalable solution for real-time monitoring in industrial and commercial environments.

Physical Specification
Dimension
1500*365*150 mm
Material
Aluminum + Acrylic
Weight
40 kg
Color
White
RFID Specificiation
Air Interface Protocol
EPC Global UHF Class 1 Gen 2, ISO 18000-6C
Operating Frequency
US (902-928 MHz)
EU (865-868 MHz)
RF Output Power
0-33 dbm (Adjustable)
Built In Antenna
4x 8dbi panel antenna
Polarization
Circular
Maximum query speed
400tag/s
Reading Distance
1.8-2.2 m between two doors
(Depend on tag performance and operating environment)
In and Out Detection Method
Infrared beaming
Millimeter wave radar (optional)
Working Mode
Channel mode
EAS mode
RSSI
Support
Data Communication
Standard Interface
TCP/IP, Power port
Optional Interface
RS232, POE, WIFI
Power Supply
220V+10%55HZ
Reading Alarm
Buzzer
Indicator Light
Strip light (Red and Green)
Environment Specification
Mounting Methods
Expansion screw
Operating Temperature
-10°С to +60 °С
Storage Temperature
-30°С to +75°С
Humidity
5%~95% RH
Other Specification
Package
1 pc/box
Accessories
Power adapter, and plug (US, EU,CHN)
Personalization
Pre-print Logo / Barcode / QR / Series number, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHS Approved
Application
Parking lot managment, warehouse managment, etc.
