Our RFID Integrated Reader offers a robust and scalable approach to real-time asset tracking and management. With advanced RFID technology, this solution enables organizations to streamline their operations by automating data capture and improving accuracy. Whether you’re in logistics, manufacturing, or inventory management, our integrated reader provides reliable and efficient performance across various industries.
Key Features:
Seamless Integration: Easily integrates with your existing IT infrastructure to enhance real-time data processing.
High Efficiency: Achieve high-speed data capture for quick processing and reduced operational delays.
Versatility: Suitable for a wide range of applications, including supply chain management, inventory control, and asset tracking.
Durable Design: Built to withstand industrial environments, ensuring long-lasting performance even under challenging conditions.
Real-Time Monitoring: Gain access to instant updates on asset locations, movement, and status, optimizing operational efficiency.
Transform your asset tracking and management with our RFID Integrated Reader, and drive better decision-making with accurate, real-time data. Improve your workflow efficiency, reduce errors, and accelerate productivity.
Physical Specification | Dimension | 445*445*80 mm |
|---|---|---|
Material | ABS+ Die cast aluminum | |
Weight | 3.1 kg | |
Color | White | |
RFID Specificiation | Air Interface Protocol | EPC Global UHF Class 1 Gen 2, ISO 18000-6C |
Operating Frequency | US (902-928 MHz) EU (865-868 MHz) | |
RF Output Power | 0-26 dbm (Adjustable) | |
Built In Antenna | 12 dBi | |
Polarization | Linear | |
Reading Distance | 0-15 meters (Depend on tag performance and operating environment) | |
Special Functions | Support password/mask function | |
Working Mode | Active mode Answer mode Trigger mode | |
RSSI | Support | |
Data Communication | Standard Interface | RS232, Wiegand, Relay |
Optional Interface | TCP/IP, POE, WIFI, USB, TTL, RS485, etc. | |
Power Supply | 12V 2A | |
Reading Alarm | Buzzer | |
Indicator Light | Red and Green | |
Environment Specification | Mounting Methods | Screw, bracket |
IP Rating | IP 65 | |
Operating Temperature | -10°С to +55 °С | |
Storage Temperature | -20°С to +75°С | |
Other Specification | Package | 1 pc/box |

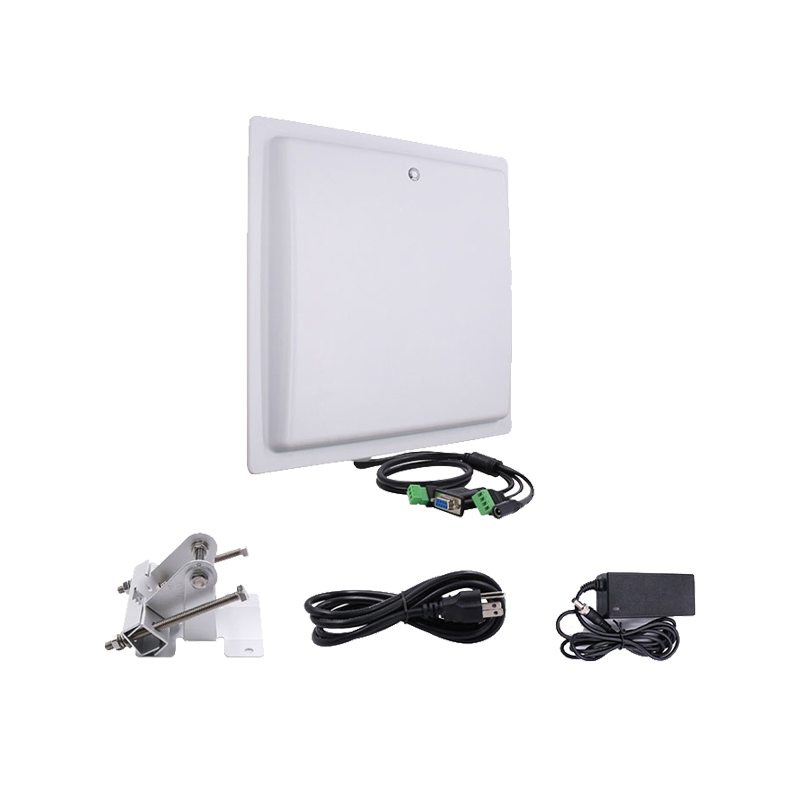

Accessories | Install bracet, power adapter, and plug (US, EU,CHN) | |
Personalization | Pre-print Logo / Barcode / QR / Series number, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHS Approved | |
Application | Parking lot managment, warehouse managment, etc. |
