SRU9929

RFID Label Cost

Introducing our premium RFID Labels, the ultimate solution for efficient asset management, inventory control, and supply chain automation. Designed for durability, reliability, and exceptional read rates, these labels empower businesses to streamline operations with cutting-edge RFID technology.

Key Features & Benefits:

  • Optimal Performance: Engineered with high-quality inlays and chips (Impinj, NXP, Alien compatible) for consistent, long-range readability in various environments.

  • Durability & Versatility: Constructed with durable materials suitable for demanding applications. Available in multiple sizes, adhesives (permanent, removable), and surfaces (paper, synthetic) for use on retail items, warehouse bins, logistics containers, and assets.

  • Easy Integration: Compatible with all major UHF RFID readers and printers. Perfect for encoding and printing on-demand with RFID-enabled printers.

  • Enhanced Security & Data Capacity: Store significant data securely, enabling unique item identification, anti-counterfeiting, and detailed tracking beyond traditional barcodes.

INQUIRY
INQUIRY
Datasheet
RFID Label Cost
RFID Label Cost
RFID Label Cost
RFID Label Cost
Physical Specification
Item
SRU9929
Antenna size
22.5*22.5 mm

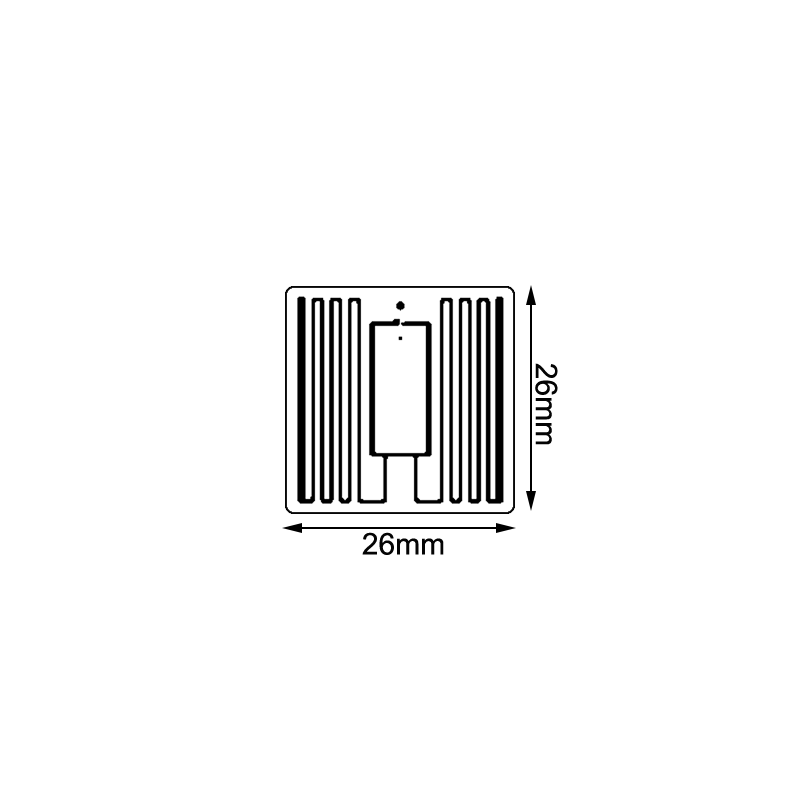

Tag size
26*26 mm
Thickness
11–18 mils / 279–463 microns
Material
Paper / PP / PET or customized
Adhesive
Solvent free permanent acrylic adhesive
Color
White, Transparent, etc.
Weight
0.01 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
Alien Higgs 9
Memory
Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
6 m to 10 m (Depend on reader and environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Operating Humidity
20% to 60% RH
Recommended Storage
+25°C / 77°F, 40% RH
Bend Diameter
> 1.97” / 50 mm
Pressure
< 5N/mm2
Drop Resistance
Per ASTM D5276
Shelf Life
2 years at +25°C / +77°F, 40% RH
ESD Voltag Immunity
±2 kV peak HBM
Other Specification
Package Detail
3000 pcs/reel, vacuumed in ESD bag or customized
Core Size
76.2 mm / 3 in, etc.
Delivery Format
On reel for dry inlay, wet inlay, label
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested, defective tags marked
Certification
CE Approved, RoHs Approved, etc.
Application
CD/DVD Management,etc.
