SRU3075

RFID Paper Labels

Transform your inventory tracking, supply chain logistics, and asset management with our high-performance RFID Paper Labels. More than just a label, they are the gateway to seamless, automated, and accurate data capture.

What are RFID Paper Labels?
Our RFID Paper Labels are innovative, cost-effective tags that integrate a thin, flexible RFID inlay into a durable paper substrate. They combine the easy printability and disposability of paper with the powerful wireless tracking capabilities of RFID (Radio-Frequency Identification) technology. Each RFID Paper Label contains a unique digital identifier that can be read instantly, without line-of-sight, from a distance using an RFID reader.

Key Features & Benefits:

  • Superior Efficiency & Accuracy: Automate data collection and eliminate manual scanning errors. Read dozens of RFID Paper Labels simultaneously, dramatically speeding up processes like inventory counts, shipment verification, and item identification.

  • Robust & Reliable Performance: Designed for everyday use, our labels offer consistent read rates. The paper facestock is optimized for reliable RFID signal transmission and can be coated for protection against mild moisture and abrasion.

  • Seamless Integration: Easily encode and print variable data (such as barcodes, text, and graphics) onto the label surface using standard RFID-enabled printers, while the chip stores critical digital information. Perfect for compliance and dual-mode (RFID + Barcode) systems.

  • Cost-Effective & Sustainable: As a lightweight, paper-based solution, RFID Paper Labels provide an affordable entry point into RFID technology. They are also more eco-friendly than plastic tags, often made from recyclable materials.

  • High Customizability: Available in various sizes, chip frequencies (UHF Gen2 for long-range, NFC for short-range interaction), and adhesive strengths to suit your specific application—from retail item-level tagging to pallet and case labeling.

Physical Specification
Item
SRU3075

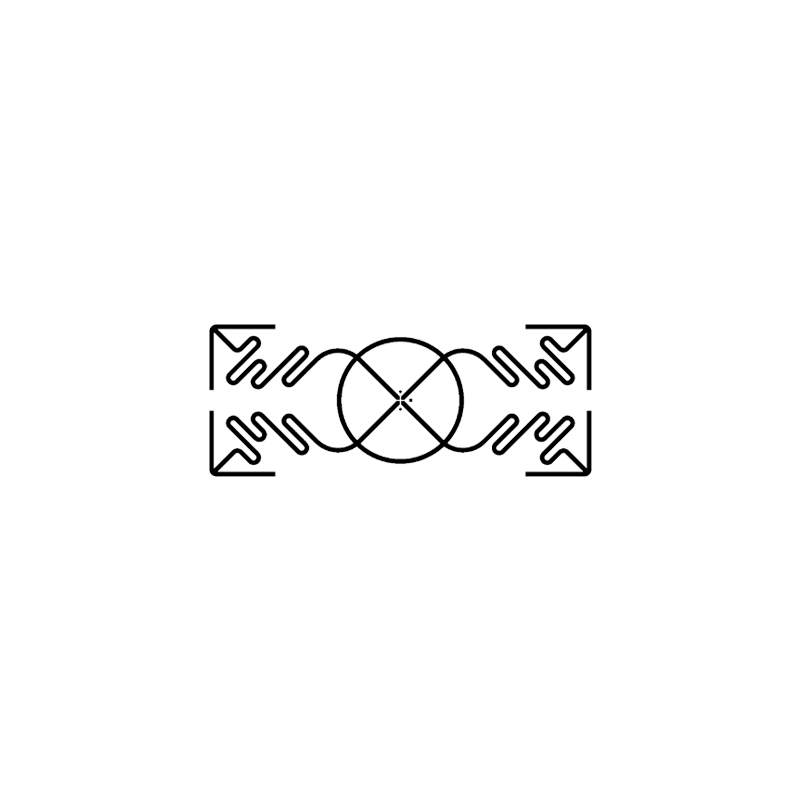

Antenna size
30*75 mm
Tag size
33*78 mm
Thickness
11–18 mils / 279–463 microns
Material
Paper / PP / PET or customized
Adhesive
Solvent free permanent acrylic adhesive
Color
White, Transparent, etc.
Weight
0.01 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
Qstar-73GB-O
Memory
Qstar-73GB-O: EPC-128 bits; User-512 bits; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
6 m to 10 m (Depend on reader and environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Operating Humidity
20% to 60% RH
Recommended Storage
+25°C / 77°F, 40% RH
Bend Diameter
> 1.97” / 50 mm
Pressure
< 5N/mm2
Drop Resistance
Per ASTM D5276
Shelf Life
2 years at +25°C / +77°F, 40% RH
ESD Voltag Immunity
±2 kV peak HBM
Other Specification
Package Detail
3000 pcs/reel, vacuumed in ESD bag or customized
Core Size
76.2 mm / 3 in, etc.
Delivery Format
On reel for dry inlay, wet inlay, label
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested, defective tags marked
Certification
CE Approved, RoHs Approved, etc.
Application
CD/DVD Management,etc.
