SRAE-006

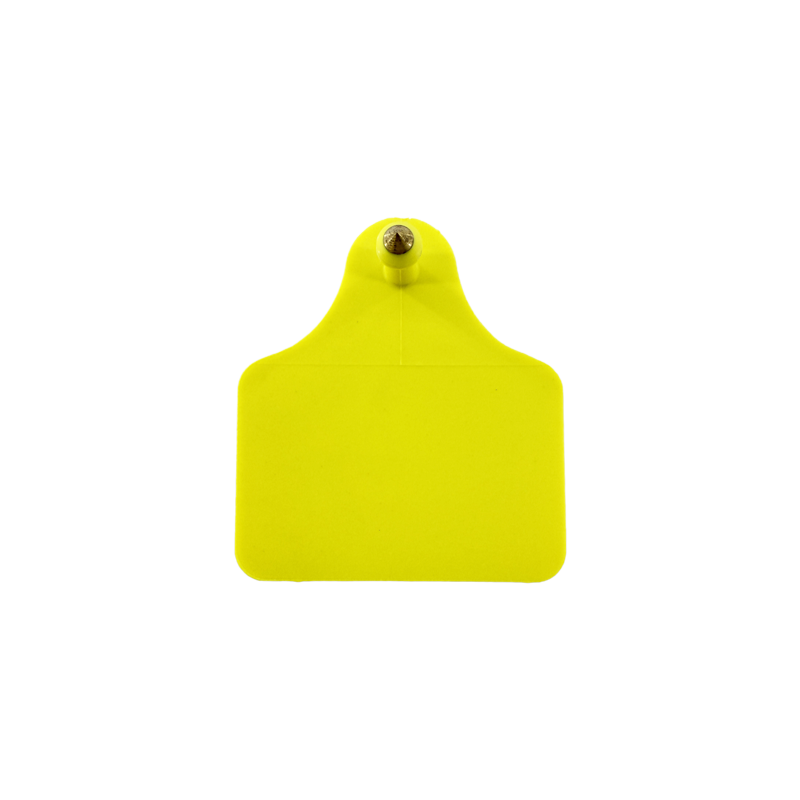

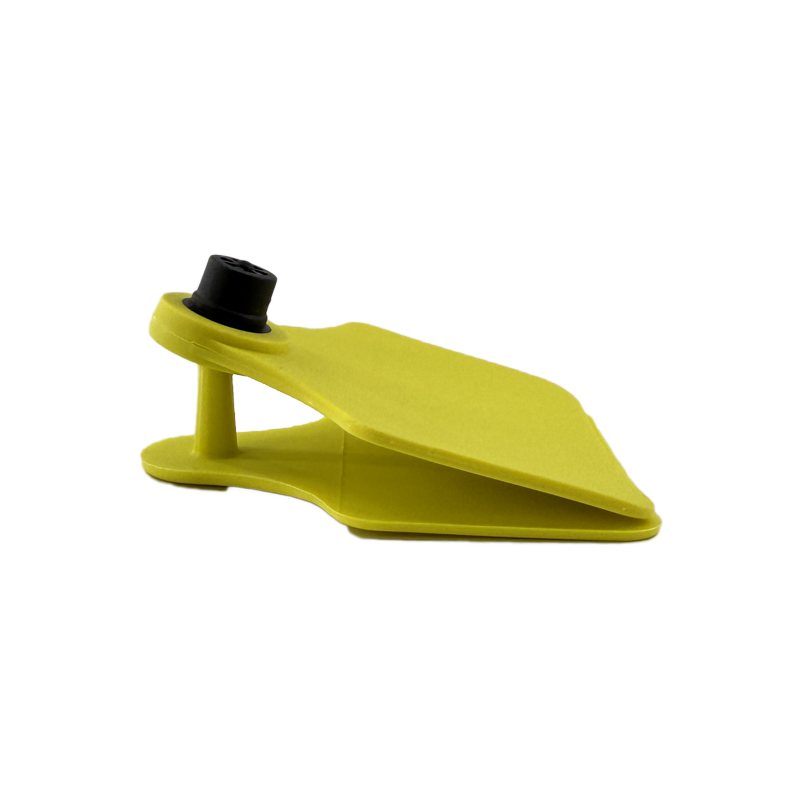

UHF 860-960 MHz Livestock RFID Ear Tag

The UHF 860–960 MHz livestock RFID ear tag is an advanced animal identification device designed for long-range, high-speed data capture in large-scale livestock operations. Built with an embedded UHF RFID chip, these tags enable hands-free identification of cattle, pigs, sheep, and goats—dramatically improving farm efficiency, traceability, and compliance.

Unlike traditional LF tags that require close-range scanning, UHF ear tags can be read from up to 6 meters away using stationary or mobile RFID readers. This makes them ideal for automated systems, such as walk-through gates, sorting stations, and feedlots, where real-time herd tracking and minimal labor intervention are critical.


Key Features:

  • Long-Range Reading (Up to 6m): Perfect for drive-by or walk-through livestock identification

  • EPC Gen2 / ISO 18000-6C Compliance: Globally accepted UHF RFID standard ensures interoperability

  • Rugged Design: Made from UV-resistant, biocompatible TPU or polyurethane for harsh environments

  • Tamper-Proof Lock: Secure, anti-fall-off design suitable for active livestock

  • Custom Printing: Add serial numbers, QR codes, logos, and color-coded farm IDs

  • Fast Multi-Tag Reading: Read hundreds of animals in seconds—ideal for large herds

  • Data Connectivity: Seamlessly integrates with livestock software for health, weight, and movement records

Physical Specification
Item
SRAE-006
Tag size
Female: 72*64mm, Male: 72*64mm or D30mm
Thickness
Female: 14mm, Male: 25mm or 23mm
Material
TPU
Color
Yellow, Green, Blue, Red, etc.
Weight
7 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US)
IC Type
NXP UCODE 8
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
Up to 6 m (Depend on reader and environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Recommended Storage
+25°C / 77°F, 40% RH
Anti-collision Standard
IEC 68-2-27
Vibrating Standard
IEC 68-2-6
Max Tension
350 N
IP Rating
IP68
Other Specification
Tagging Methods
Ear tag applicator tool
Package Detail
100pcs /bag or customized
Delivery Format
One Pair
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Livestock Identification & Traceability, Feeding & Weight Monitoring, etc.
