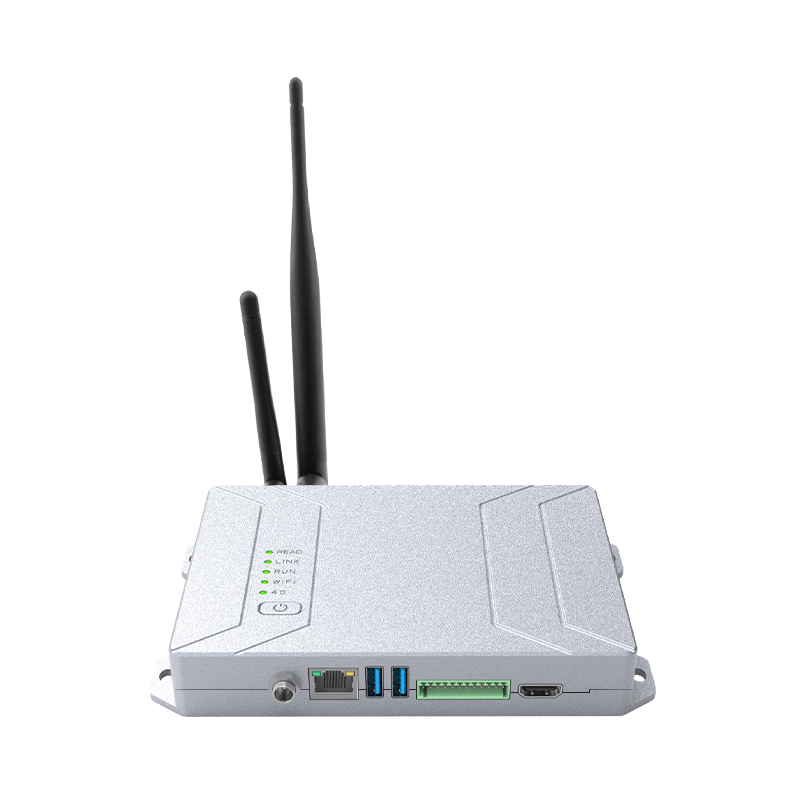

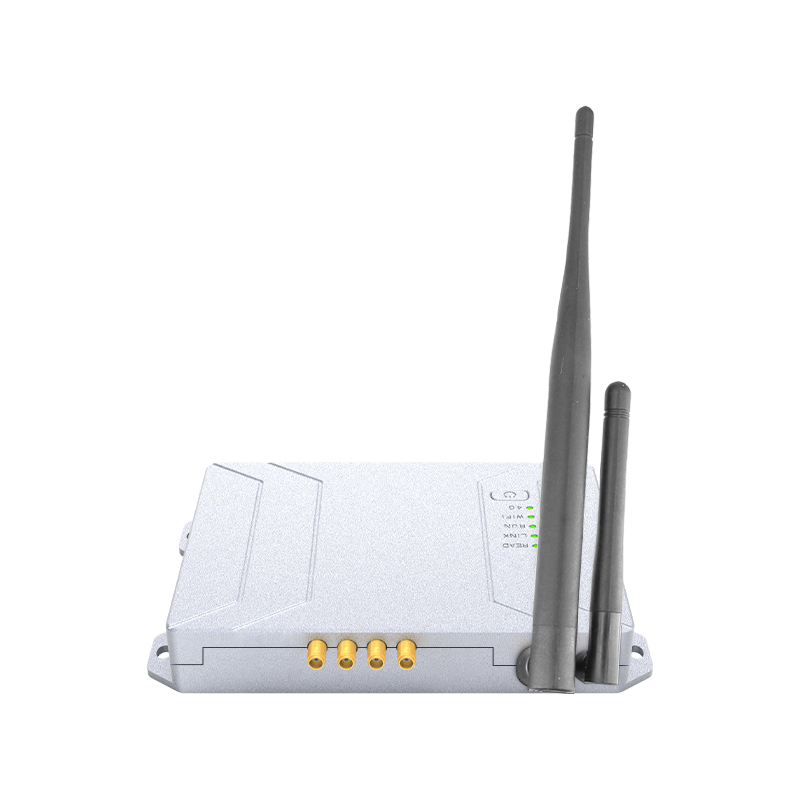

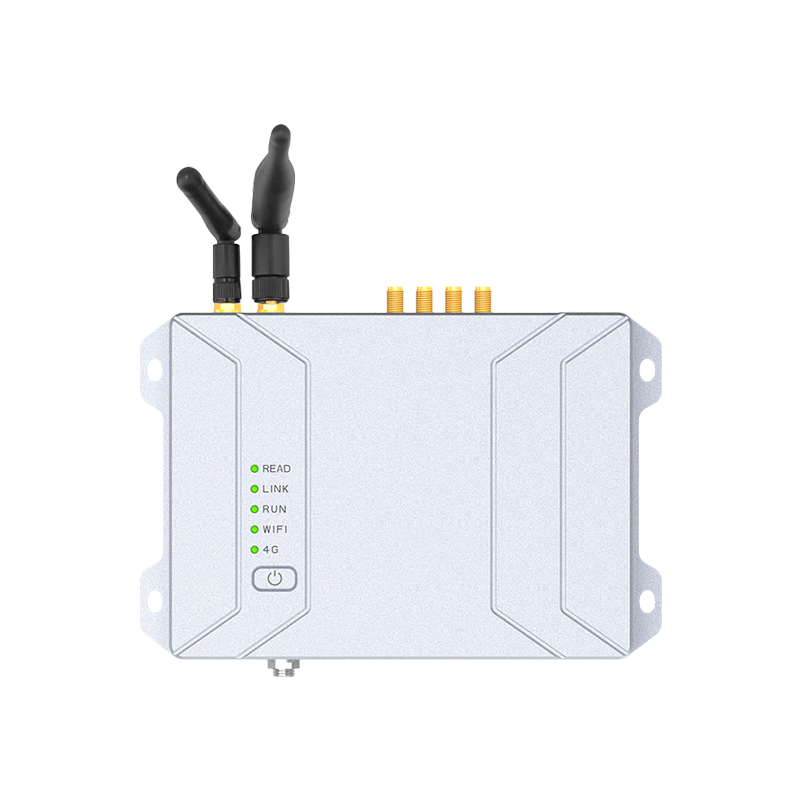

The Android OS UHF RFID Fixed Reader combines high-performance UHF RFID technology with the flexibility and ease of Android OS, making it the ideal solution for automated asset tracking, inventory management, and logistics monitoring. The Android operating system ensures seamless integration with Android-based devices and cloud applications, providing a user-friendly interface and real-time data collection.
Perfect for warehouses, distribution centers, and manufacturing environments, this reader supports UHF RFID tags (860-960 MHz), delivering long-range reading capabilities and multi-tag processing for efficient and accurate asset management. Whether you’re handling inventory management, supply chain tracking, or security access, the Android OS UHF RFID Fixed Reader ensures seamless operation across large facilities.
Key Features:
Android OS Integration: The built-in Android operating system provides a user-friendly interface and seamless integration with Android-based devices, apps, and cloud systems
High-Performance UHF RFID: Supports UHF (860-960 MHz) RFID tags with long read ranges, ensuring quick and accurate asset tracking
Multi-Tag Reading: Simultaneously reads multiple tags, enabling high-speed tracking in high-density environments
Real-Time Data Collection: Instantly captures and syncs data with connected devices, cloud platforms, or ERP/WMS systems
PoE (Power over Ethernet): Simplifies installation by eliminating the need for additional power sources and reducing cabling complexity
Durable & Industrial-Grade: Built for rugged environments, offering IP65 protection against dust and water
Wide Compatibility: Fully compatible with Android-based applications, making it easy to integrate with existing systems
Physical Specification | Dimension | 180*129*27 mm |
|---|---|---|
Material | Die Cast Aluminum | |
Weight | 0.6 kg | |
Color | White | |
RFID Specificiation | Air Interface Protocol | EPC Global UHF Class 1 Gen 2, ISO 18000-6C |
Operating Frequency | US (902-928 MHz) EU (865-868 MHz) | |
RFID Engine | Impinj E710 chip | |
RF Output Power | 0-33 dbm (Adjustable) | |
Reading speed | 800 tags/s | |
Reading Distance | 0-25 meters (Depend on tag performance and operating environment) | |
Receiver sensitivity upper limit | -88 dBm | |

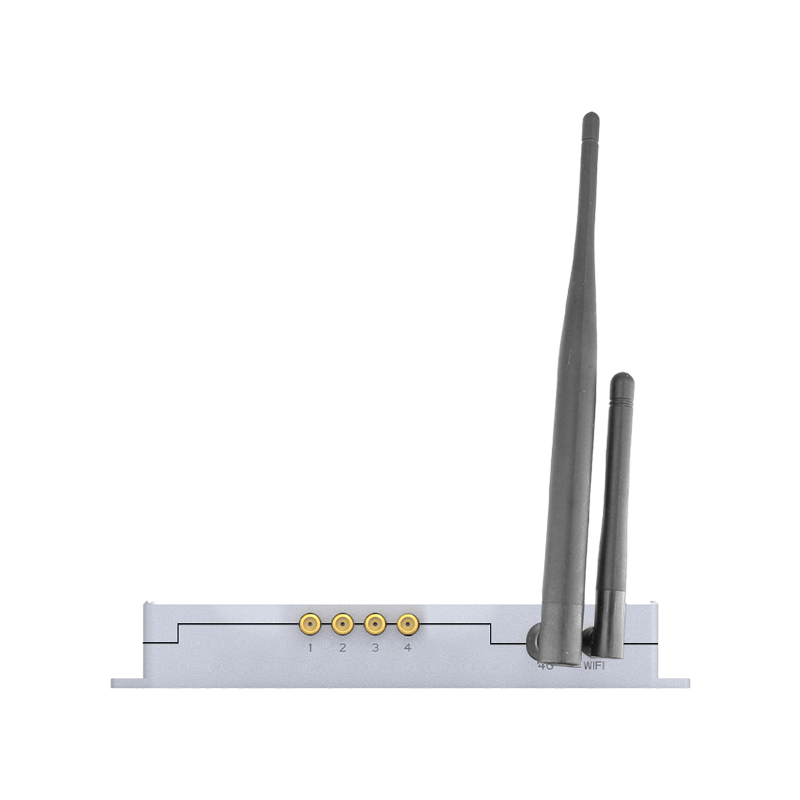

Data Communication | Antenna port | 4 SMA-K female |

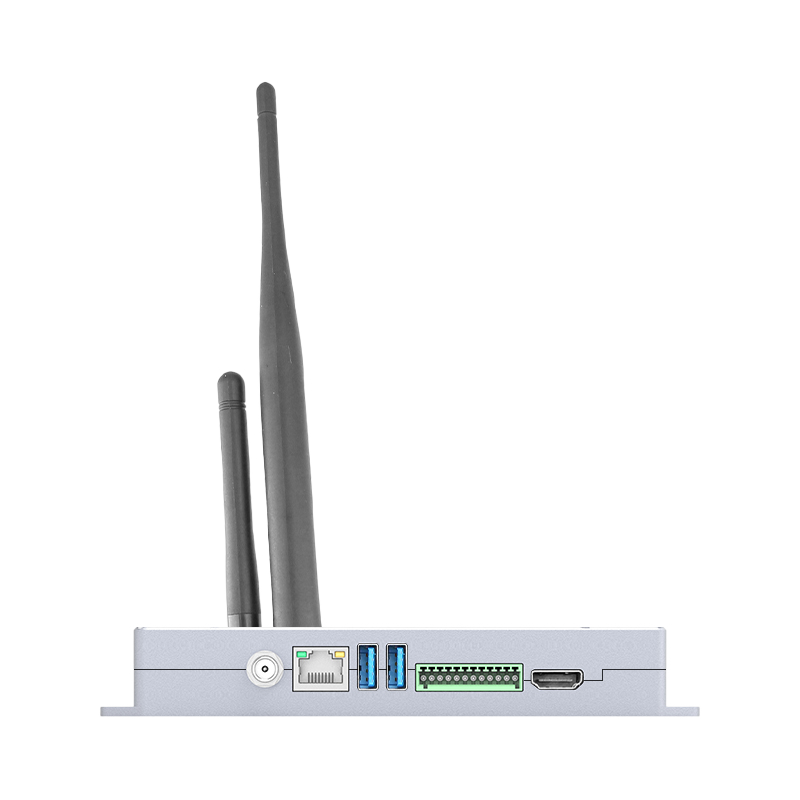

Interface | RJ45, 2 USB3.0 Type A, supports USB Host (one supports OTG), RS232/ RS485 | |
Power Supply | Support DC 9-30V input, default DC 24V input | |
General Purpose I/O | 2 inputs, 2 outputs, optocoupler isolation (terminals) | |
Management Protocol | HDMI Type A, supports 1080p HD video output | |
CPU | Quad-core Cortex-A55 Main frequency 2.0GHz | |
RAM + ROM | 2 + 16GB | |
Operating System | Android 12.0 | |
Firmware Upgrade | Support local USB upgrade | |
4G | Default is Europe, optional for China, America, etc. | |
WIFI | 2.4G/5G dual-band, support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, IPV4, IPV6 | |
Environment Specification | Mounting Methods | Screw |
IP Rating | IP 53 | |
Operating Temperature | -10°С to +60 °С | |
Storage Temperature | -20°С to +75°С | |
Other Specification | Package | 1 pc/box |
Accessories | Power adapter, plug (US, EU,CHN), Serial cable, USB cable | |
Personalization | Pre-print Logo / Barcode / QR / Series number, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHS Approved | |
Application | Parking lot managment, warehouse managment, etc. |
