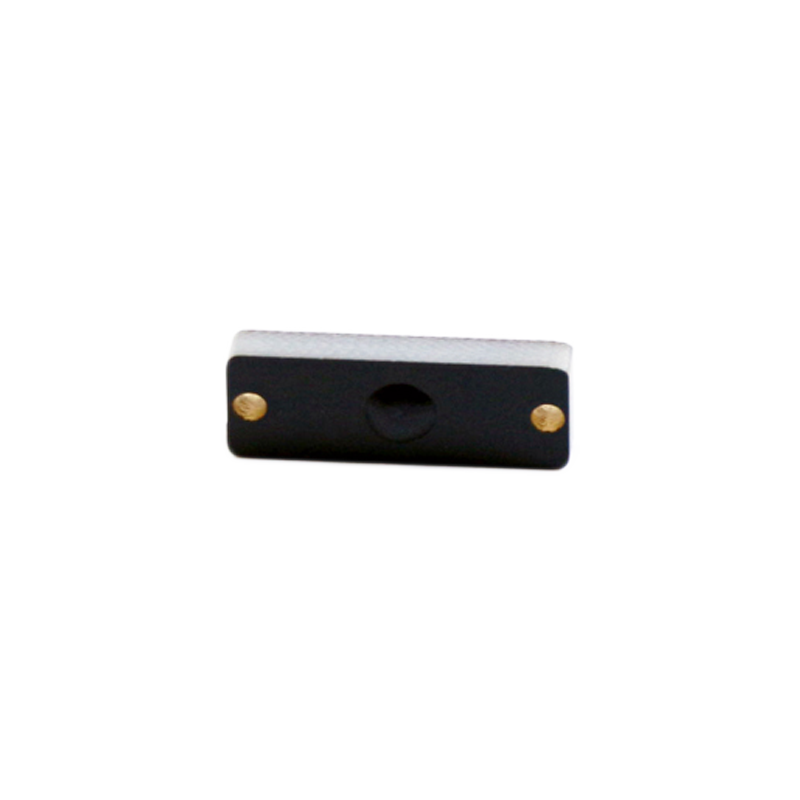

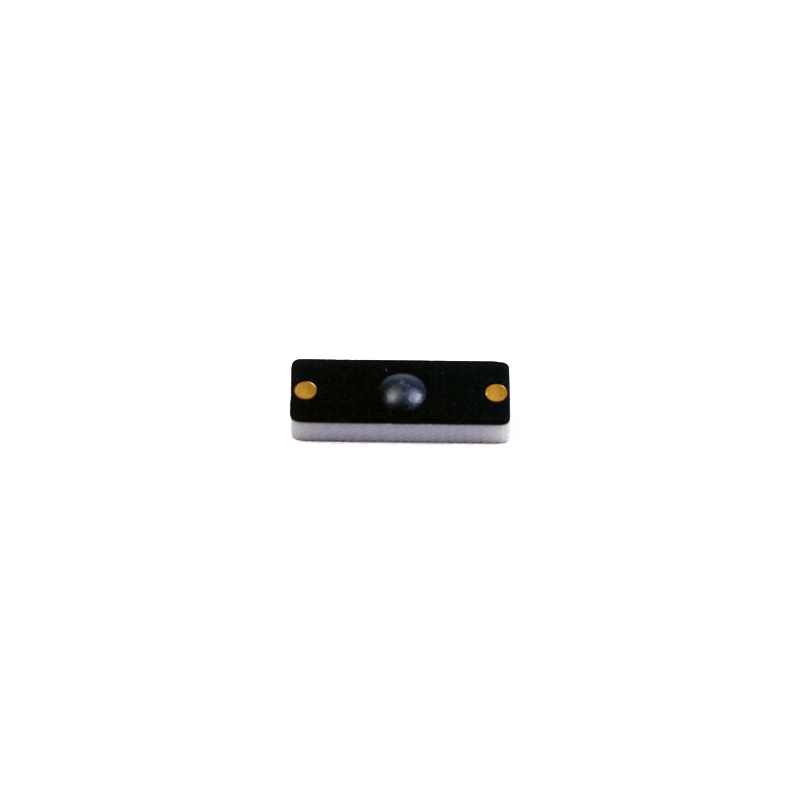

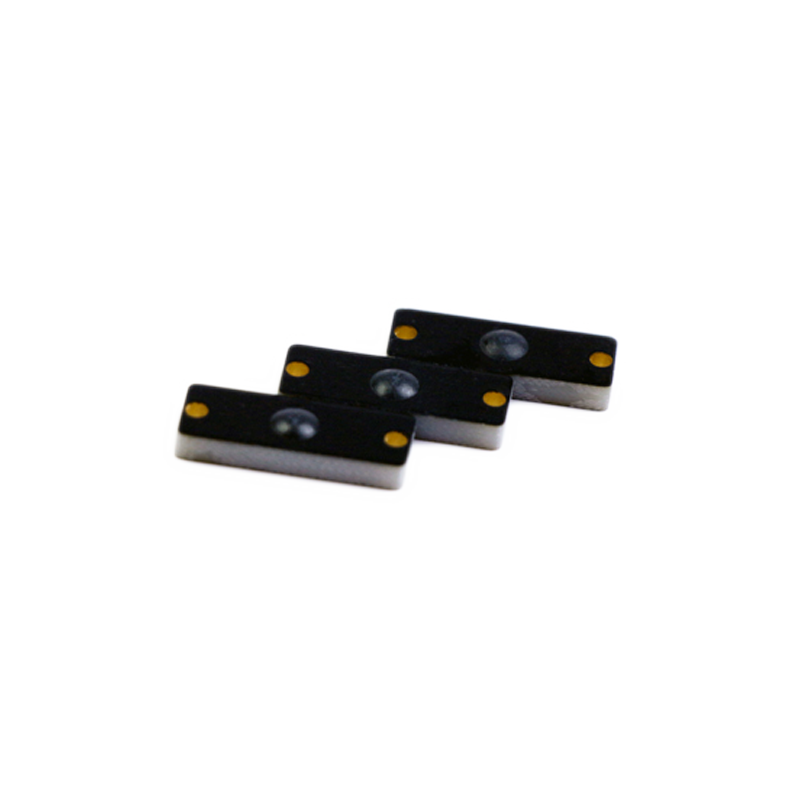

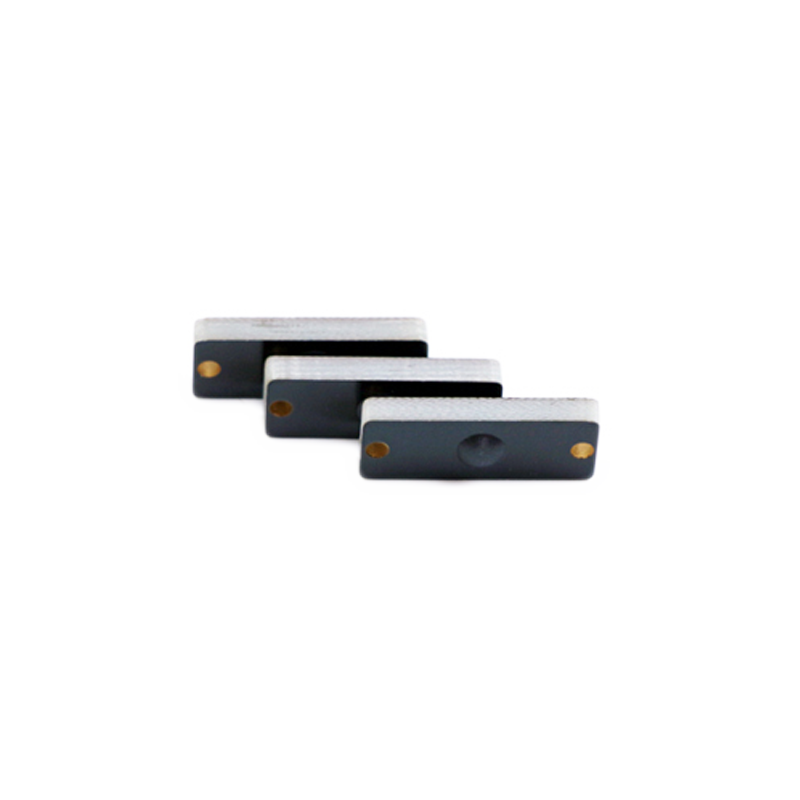

SRUPCB2208

Anti Metal RFID Tag Manufacturers

Anti-metal RFID tag manufacturers specialize in producing RFID tags that are engineered to operate effectively on or near metal surfaces—where standard tags typically fail. These manufacturers design solutions using advanced materials like ferrite layers, spacer foam, or tuned antennas that eliminate signal interference caused by conductive surfaces.

Ideal for industries such as manufacturing, logistics, oil & gas, construction, IT asset tracking, and aerospace, anti-metal RFID tags ensure consistent data capture directly on steel, aluminum, or alloy surfaces.

Key Capabilities of Leading Manufacturers:

  • Custom tag design for specific applications (curved surfaces, high-temp, compact form)

  • Production of UHF (860–960 MHz), HF (13.56 MHz), and NFC tags optimized for metal

  • Tags with adhesive, screw, magnetic, or rivet mounting options

  • Durable IP-rated enclosures for outdoor or industrial environments

  • Serialization, encoding, and private label/OEM services

  • Global compliance with EPC Gen2, ISO 18000-6C, and ISO 15693 standards

INQUIRY
INQUIRY
Datasheet
Physical Specification
Item
SRUPCB2208
Tag size
22*8 mm
Thickness
3.8 mm
Material
PCB
Adhesive
3M 300LSE
Color
White, Black, etc.
Weight
1.2 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
NXP UCODE 8, Alien Higgs 3, Alien Higgs 9
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
, Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
450 cm, (US) 902-928MHz, On Metal
470 cm, (EU) 865-868MHz, On Metal
Read Range
Handheld Reader
260 cm, (US) 902-928MHz, On Metal
300 cm, (EU) 865-868MHz, On Metal
Feature
Workable on metal surface
Environmental Specification
Operating Temperature
-40 °C to +150 °C / -40 °F to +302 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification
Installation
Screw or backing adhesive
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, Reach Approved, etc.
Application
Military Armories Tracking, Police Stations & Tactical Units Management, Private Security Firms Equipment, etc.
