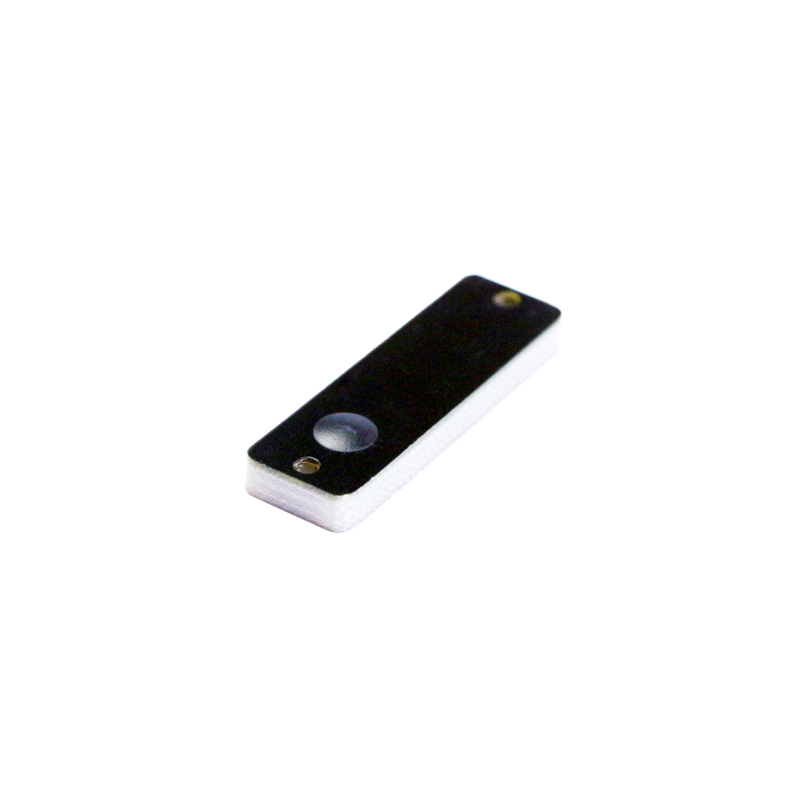

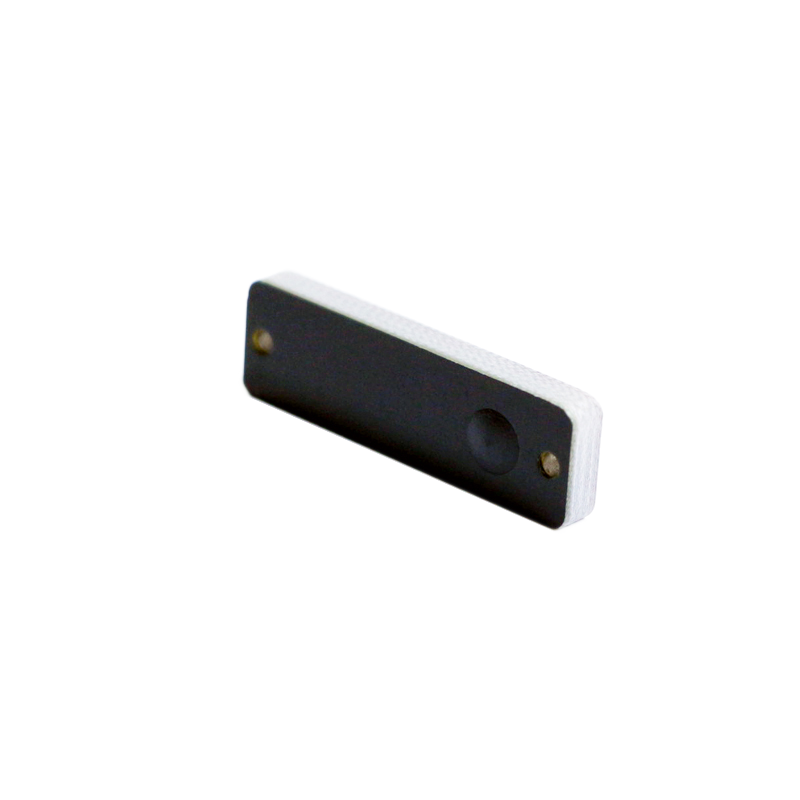

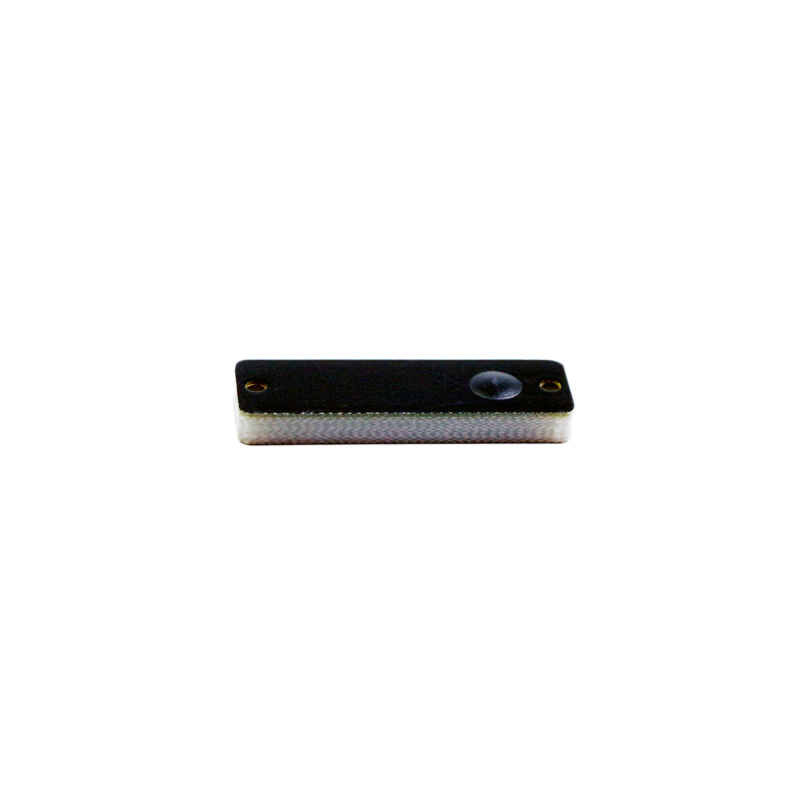

SRUPCB3310

UHF PCB RFID Metal Tag

A UHF PCB RFID metal tag is a compact and rugged RFID tag constructed with a printed circuit board (PCB) substrate and tuned specifically for reliable operation on metal surfaces. The PCB structure provides a stable antenna layout, excellent durability, and high manufacturing precision—making these tags ideal for space-constrained, industrial, and high-value asset tracking applications.

Optimized for the UHF frequency band (860–960 MHz), these tags deliver strong read performance while maintaining a low-profile form factor. They are especially effective in environments with frequent exposure to vibration, heat, or chemicals.

Key Features:

  • UHF Gen2 / ISO 18000-6C compliant

  • Built on durable FR4 or ceramic-backed PCB substrate

  • Designed specifically for mounting on conductive surfaces

  • Available in ultra-compact sizes with stable read range

  • Resistant to temperature, water, and industrial wear

  • Mounting options include adhesive, screw, or embedded placement

INQUIRY
INQUIRY
Datasheet
Physical Specification
Item
SRUPCB3310
Tag size
33*10 mm
Thickness
3.5 mm
Material
PCB
Adhesive
3M 300LSE
Color
White, Black, etc.
Weight
1.2 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
NXP UCODE 8, Alien Higgs 3, Alien Higgs 9
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
, Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
420 cm, (US) 902-928MHz, On Metal
350 cm, (EU) 865-868MHz, On Metal
Read Range
Handheld Reader
280 cm, (US) 902-928MHz, On Metal
250 cm, (EU) 865-868MHz, On Metal
Feature
Workable on metal surface
Environmental Specification
Operating Temperature
-40 °C to +150 °C / -40 °F to +302 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification
Installation
Backing adhesive
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, Reach Approved, etc.
Application
Military Armories Tracking, Police Stations & Tactical Units Management, Private Security Firms Equipment, etc.
