Our Custom RFID Laundry Tags are designed to provide efficient, long-lasting, and precise tracking for laundry items across a variety of industries, including hospitality, healthcare, and uniform management. These tags are fully customizable to meet your specific needs and are engineered to withstand frequent washing, drying, and handling.
With our Custom RFID Laundry Tags, streamline your laundry operations, improve efficiency, and maintain accurate inventory management, all while offering a personalized solution tailored to your specific needs.
Physical Specification | ||
|---|---|---|
Item | SRULAD5512 | |

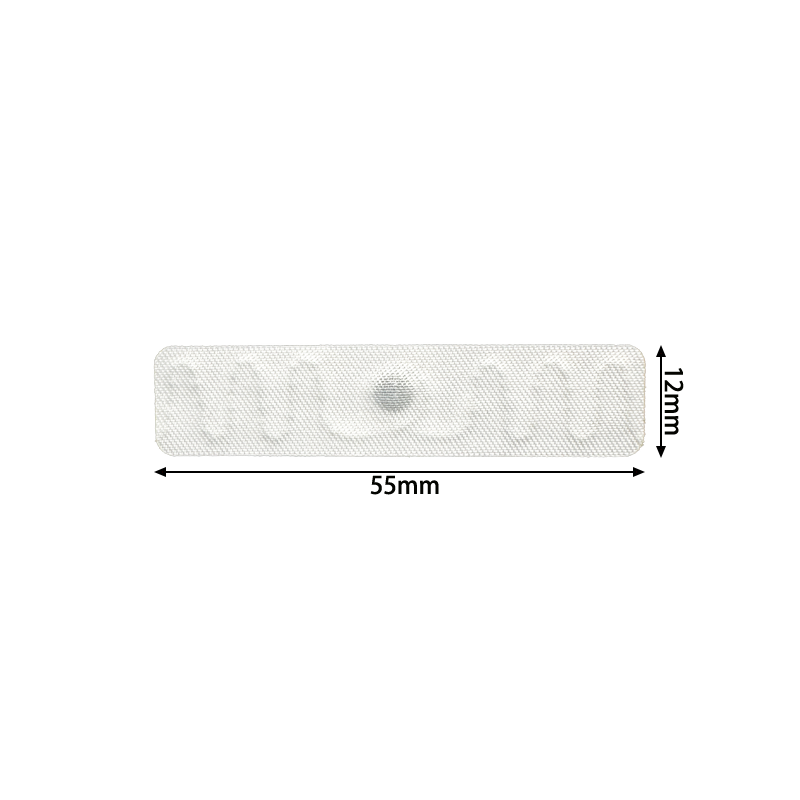

Tag Size | 55*12 mm | |
Thickness | 1.5 mm | |
Material | Polyester | |
Color | White, etc. | |
Weight | 0.6 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | NXP UCODE 8, NXP UCODE 9 | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed reader) | Up to 6 m (Depend on reader and environment) | |
Read Range (Handheld reader) | Up to 2 m (Depend on reader and environment) | |
Operating Specification | Typical washing cycle | Washing: +90°C (I94°F), 15 minutes Drying: +I80°C (356°F), 3 minutes lroner: +200°C (392°F), 12 seconds Water Extractor: 60 bar, 80 seconds |
Autoclave | Air removal: +I00°C (+212°F), 5 minutes, 0.1 bar Sterilizing: +134°C (+273°F), I0 minutes, 3.25 bar Drying: +45°C (+113°F), 15 minutes, 0.2 bar | |
Patching Instructions | +204°C (399°F), 12 seconds, 0.5 kg/cm2 | |
Chemical Resistance | All Chemicals common to the washing process | |
Feature | 200 washing cycles with water extractors up to 60 bar | |
Installation | Sewn inside the hem or pouch | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
Other Specification | Package Detail | 200 pcs/ESD bag or customized |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Industrial washing management, Rental laundry management, Uniforms management, Medical apparel management, Military clothing management | |
