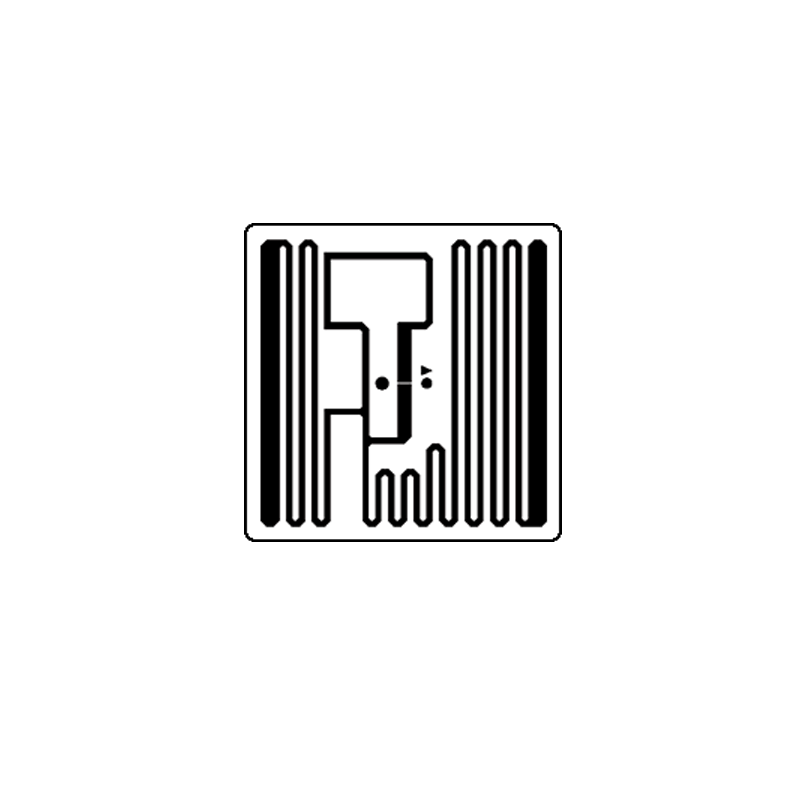

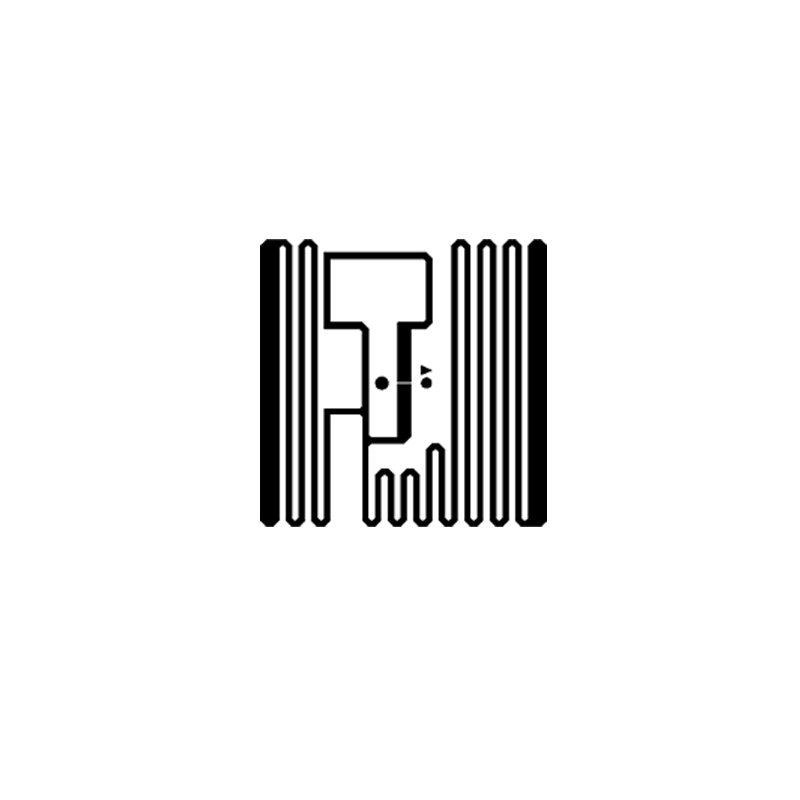

GRILLE RFID U9 Tags with square shape Discover the power of precision and efficiency with our square-shaped GRILLE RFID tags. Unleash the potential for seamless inventory management, asset tracking, and supply chain optimization. Our innovative square design ensures versatile applicability across various industries, providing reliable and accurate data capture. Elevate your business operations to new heights with these cutting-edge RAIN RFID tags, where form meets function for unparalleled performance.
Physical Specification | ||
|---|---|---|
Item | SRU2323 | |
Antenna size | 22.5*22.5 mm | |
Tag size | 25*25 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global), 902-928 MHz (US) | |
IC Type | NXP UCODE 8, NXP UCODE 9 | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0.5 m to 1 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Used for apparel retail, jewelry, packaging boxes, logistics, medical, books, etc. |
