SRULAD7520

Laundry RFID tracking

Our Laundry RFID Tracking Solutions are designed to optimize the management of textiles and garments in high-demand environments such as hospitality, healthcare, and industrial laundries. By integrating RFID technology, you can streamline operations, enhance inventory accuracy, and reduce manual labor.

Applications:

  • Hotels and Resorts: Manage linens, towels, and uniforms efficiently.
  • Hospitals and Clinics: Track bedsheets, patient gowns, and other medical textiles seamlessly.
  • Uniform Rental Services: Enhance tracking and management of rental garments and workwear.
  • Industrial Laundries: Streamline processes for high-volume textile handling.

With our Laundry RFID Tracking Solutions, you can revolutionize your laundry operations, achieving greater efficiency, accuracy, and control while delivering exceptional service quality.

INQUIRY
INQUIRY
Datasheet
Physical Specification
Item
SRULAD7520

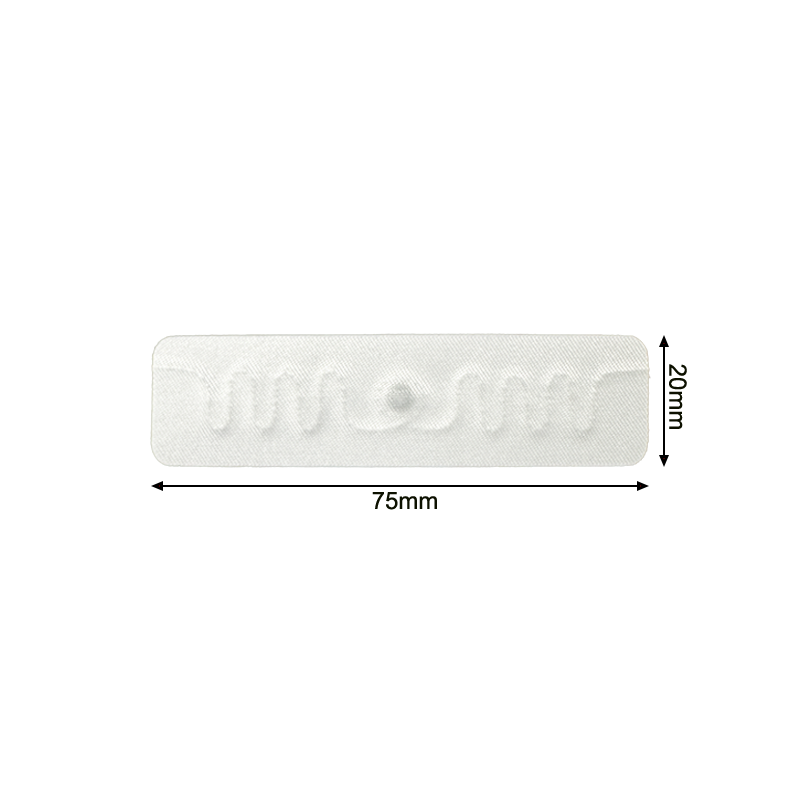

Tag Size
75*20 mm
Thickness
1.5 mm
Material
Polyester
Color
White, etc.
Weight
0.6 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
NXP UCODE 8, NXP UCODE 9
Memory
UCODE 9: EPC-96 bits; User-N/A; TID-96 bits
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range (Fixed reader)
Up to 6 m (Depend on reader and environment)
Read Range (Handheld reader)
Up to 2 m (Depend on reader and environment)
Operating Specification
Typical washing cycle
Washing: +90°C (I94°F), 15 minutes
Drying: +I80°C (356°F), 3 minutes
lroner: +200°C (392°F), 12 seconds
Water Extractor: 60 bar, 80 seconds
Autoclave
Air removal: +I00°C (+212°F), 5 minutes, 0.1 bar
Sterilizing: +134°C (+273°F), I0 minutes, 3.25 bar
Drying: +45°C (+113°F), 15 minutes, 0.2 bar
Patching Instructions
+204°C (399°F), 12 seconds, 0.5 kg/cm2
Chemical Resistance
All Chemicals common to the washing process
Feature
200 washing cycles with water extractors up to 60 bar
Installation
Heat Sealing
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
Other Specification
Package Detail
200 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Industrial washing management, Rental laundry management, Uniforms management, Medical apparel management, Military clothing management
