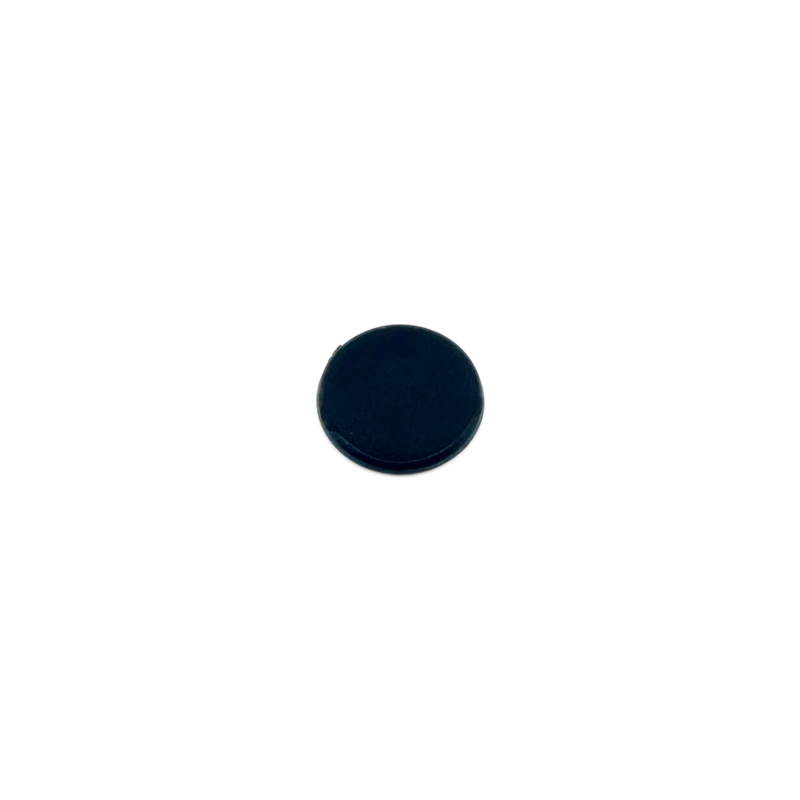

The Micro RFID Transponder is a compact, high-performance RFID device designed for seamless integration into a variety of applications requiring discreet, reliable identification and tracking. With its ultra-small form factor, this transponder is ideal for use in medical devices, animal tagging, high-value asset tracking, and miniature electronic equipment.
Engineered for durability and precision, the Micro RFID Transponder operates on industry-standard frequencies (LF/HF/UHF) and supports both read and write capabilities. Its robust encapsulation ensures resistance to harsh environmental conditions, including moisture, temperature fluctuations, and mechanical stress.
Whether embedded or surface-mounted, the Micro RFID Transponder delivers consistent performance, long read ranges (relative to its size), and a long operational lifespan, making it a trusted choice for mission-critical identification systems.
Key Features:
Ultra-compact size for seamless integration
Available in LF (125 kHz), HF (13.56 MHz), or UHF (860–960 MHz) options
Read/write functionality with secure data storage
Biocompatible and sterilizable (medical-grade models)
Resistant to water, chemicals, and temperature extremes
Ideal for asset tracking, animal ID, medical tools, and more
Physical Specification | ||
|---|---|---|
Item | SRTPD313 | |
Tag size | Diameter 13 mm | |
Thickness | 2 mm | |
Material | PPS | |
Adhesive | 3M 300LSE | |
Color | White, Black, etc. | |
Weight | 1.5 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 15693, ISO/IEC 14443-A |
Operating Frequency | 13.56 MHz (HF) | |
IC Type | NXP NTAG 213, NXP NTAG 215, NXP NTAG 216, NXP ICODE SLIX | |
Memory | NTAG 213: EEPROM-1440 bits (180 bytes) NTAG 215: EEPROM-4320 bits (540 bytes) NTAG 216: EEPROM-7392 bits (924 bytes), ICODE SLIX: EEPROM-1024 bits (128 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0-20 cm (Depend on tag performance and operating environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +120 °C / -40 °F to +248 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Backing adhesive |
Package Detail | 100pcs /bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | Logistics Tracking Management,Industrial Automation Process Control,Manufacturing Production Process Control,Warehouse Management Oil and Gas Industry,etc. |
