Passive RFID Tags on Metal are specially engineered for use on metallic surfaces, delivering reliable, battery-free identification where standard tags fail. Built with anti-metal shielding or ferrite substrates, these tags eliminate detuning caused by conductive materials—making them ideal for rugged, industrial, or high-metal environments.
Because they are passive, these tags require no internal power source, offering a low-maintenance and cost-efficient solution for large-scale asset tracking on or near metal.
Key Features:
Metal-Safe Design: Engineered with insulation or ferrite backing to maintain signal performance when mounted on steel, aluminum, or alloys.
UHF & HF Options: Available in UHF (860–960 MHz) for long-range scanning or HF/NFC (13.56 MHz) for secure, close-range applications.
100% Passive: No batteries required—powered by the reader’s radio waves, making them long-lasting and maintenance-free.
Rugged & Weather-Resistant: Withstands exposure to chemicals, water, dust, and vibration—suitable for indoor and outdoor use.
Mounting Flexibility: Adhesive-backed, screw-mount, riveted, or magnetic versions for easy installation.
Physical Specification | ||
|---|---|---|

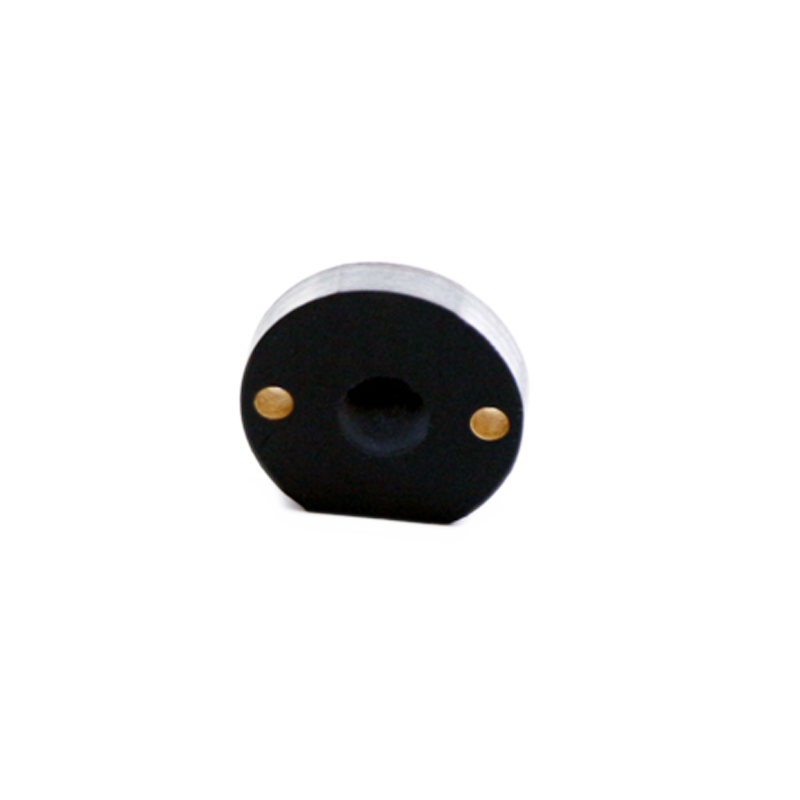

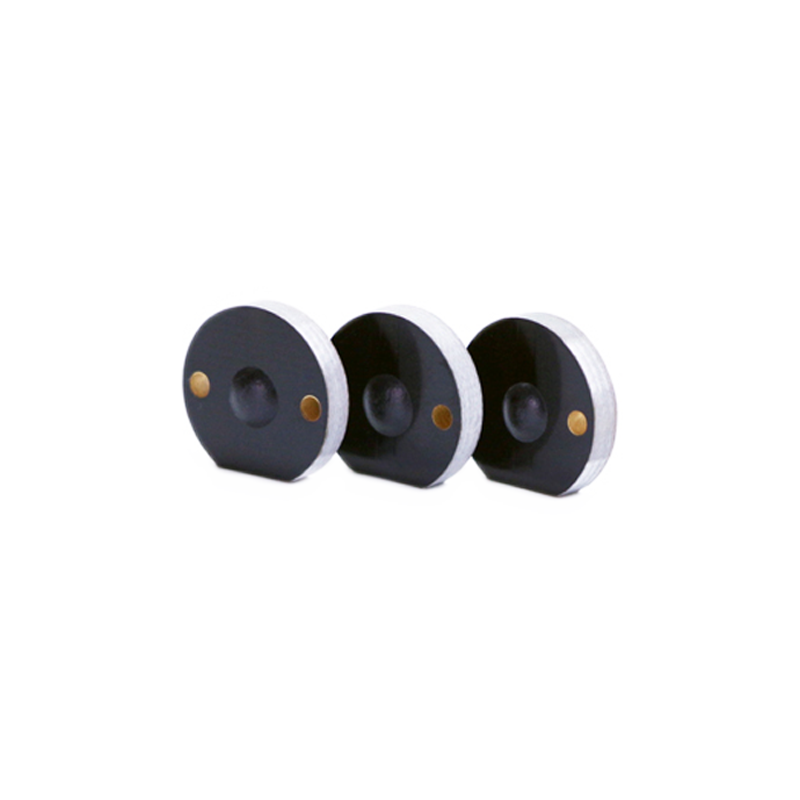

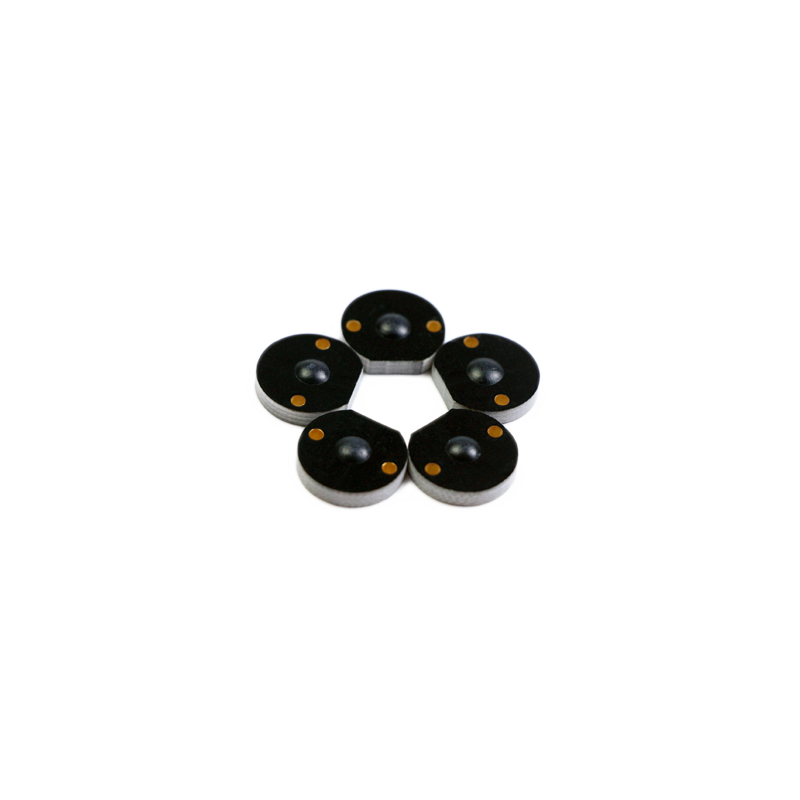

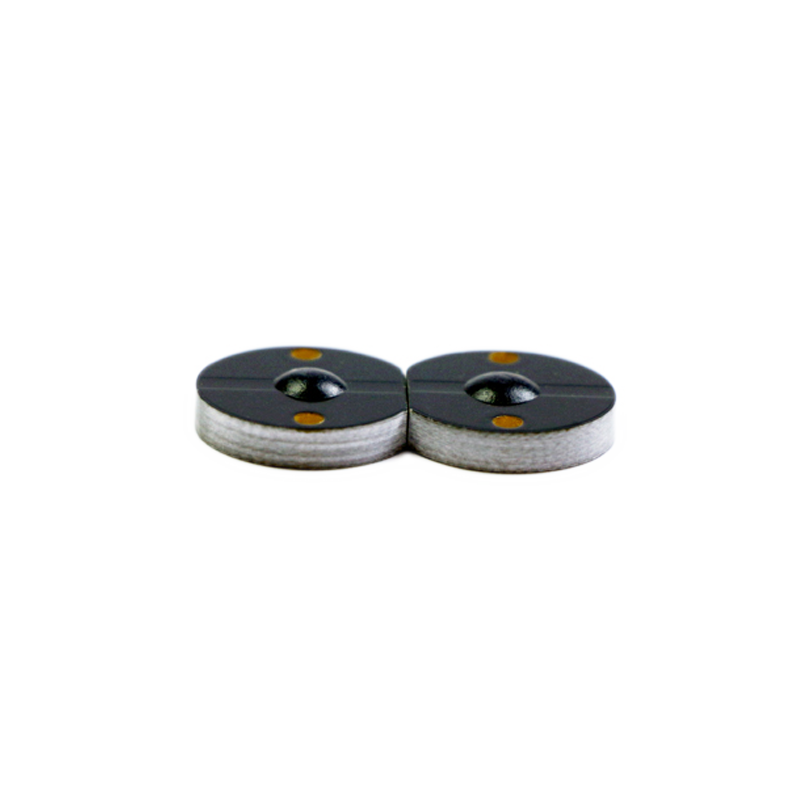

Item | SRUPCBD16 | |
Tag size | D16 mm | |
Thickness | 3.8 mm | |
Material | PCB | |
Adhesive | 3M 300LSE | |
Color | White, Black, etc. | |
Weight | 0.5 | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 902-928 MHz (US), 865-868 MHz (EU) | |
IC Type | NXP UCODE 8, Alien Higgs 3, Alien Higgs 9 | |
Memory | UCODE 8: EPC-128 bits; User-N/A; TID-96 bits , Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range (Fixed Reader) | 260 cm, (US) 902-928MHz, On Metal 240 cm, (EU) 865-868MHz, On Metal | |
Read Range Handheld Reader | 160 cm, (US) 902-928MHz, On Metal 150 cm, (EU) 865-868MHz, On Metal | |
Feature | Workable on metal surface | |
Environmental Specification | Operating Temperature | -40 °C to +150 °C / -40 °F to +302 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP68 | |
Other Specification | Installation | Screw or backing adhesive |
Package Detail | 50 pcs/ESD bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHs Approved, Reach Approved, etc. | |
Application | Tooling Tracking, IT Asset Management, Medical Equipment, etc. |
