SRUHT6920

RFID Metal Band Tag

The RFID Metal Band Tag is a rugged, high-performance RFID solution designed for secure and efficient tracking of metal assets, tools, and equipment. Built with durable stainless steel or aluminum casing, it delivers exceptional resistance to harsh industrial environments, including extreme temperatures, moisture, and mechanical wear.

Equipped with UHF (Ultra-High Frequency) or HF (High Frequency) RFID technology, this tag ensures reliable long-range scanning and seamless integration with automated inventory systems. Its flexible band design allows for easy attachment to cylindrical objects, pipes, valves, and machinery, making it ideal for oil & gas, manufacturing, construction, and logistics applications.

Key Features:

  • Metal-Optimized Performance – Strong anti-interference design for stable readability on metal surfaces.
  •  Industrial-Grade Durability – Resistant to corrosion, high heat, and physical impact.
  •  Secure & Tamper-Proof – Permanent attachment with locking mechanism for asset protection.
  •  Long Read Range – Supports fast, hands-free scanning in challenging environments.
  •  Customizable Options – Available in different sizes, frequencies (UHF/HF), and memory

Enhance your asset visibility and control with the RFID Metal Band Tag – the ultimate solution for industrial tracking, maintenance management, and anti-theft applications.

Physical Specification
Item
SRUHT6920
Tag size
69*20 mm
Thickness
8 mm
Material
PPS
Adhesive
3M 300LSE
Color
White, Black, Yellow, etc.
Weight
12.5 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US)
IC Type
NXP UCODE 8
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
On metal: 3-5 m
(Depend on reader performance and operating environment)
Feature
Workable on metal surface
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification

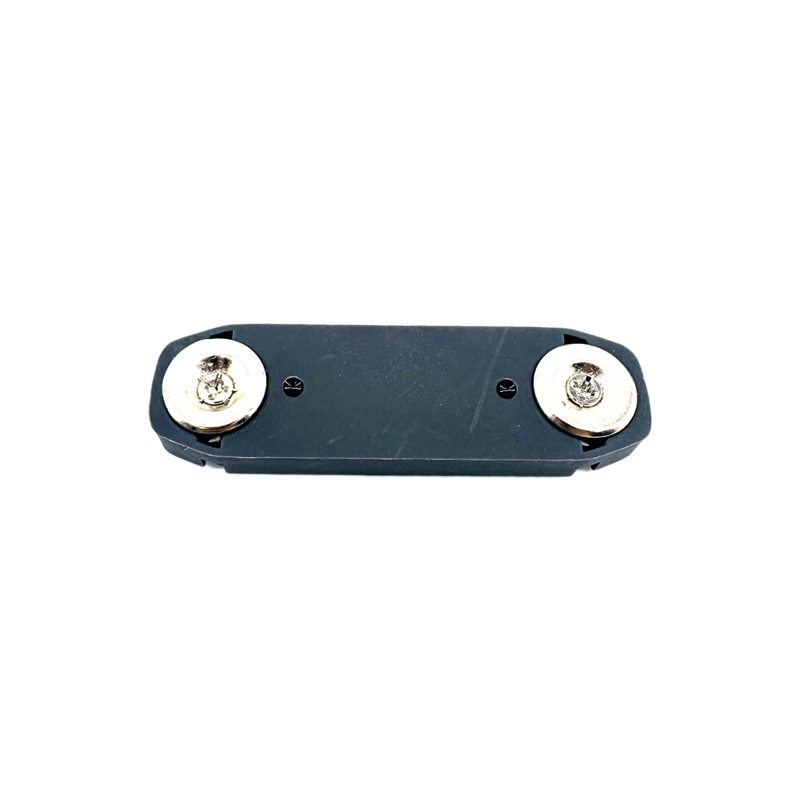

Installation
Screw or backing adhesive
Package Detail
50 pcs/bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Basket Management, Shelf Management, Container Management, Equipment Asset Management,etc.
