SRUSIL5512

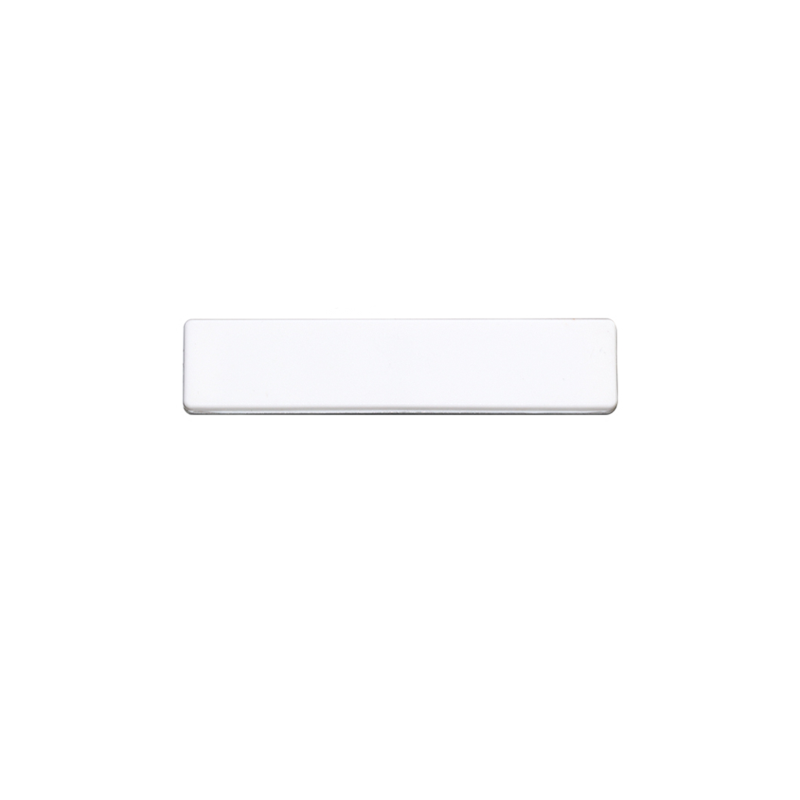

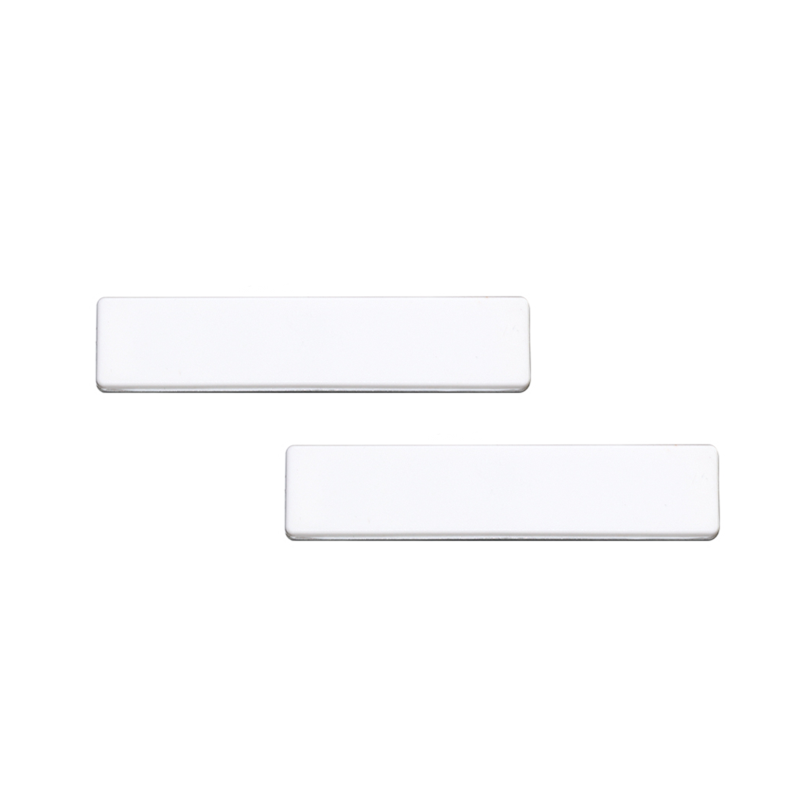

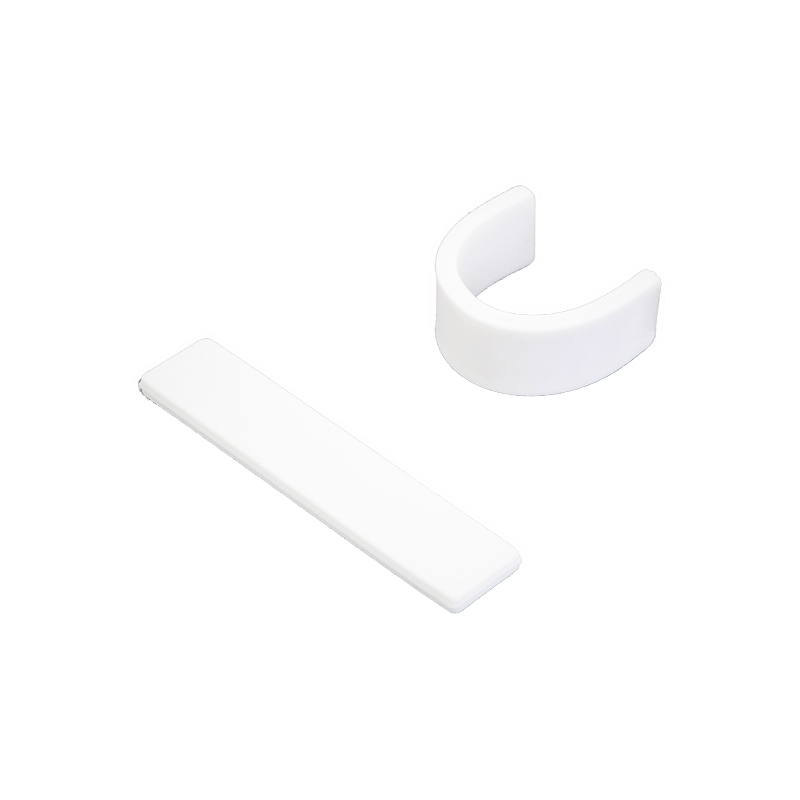

RFID Silicone Laundry Tag

The RFID Silicone Laundry Tag is a high-performance, waterproof RFID tag designed for laundry and textile management. Made from flexible and durable silicone, this tag is built to withstand harsh washing cycles, high temperatures, and industrial drying processes, ensuring long-term reliability.

Key Features:

  • Waterproof & Heat-Resistant – Survives repeated washing (up to XX°C) and drying without damage.
  • Durable Silicone Material – Soft, flexible, and resistant to bending, cracking, or tearing.
  • Reusable & Long-Lasting – Can be used thousands of times, reducing replacement costs.
  • RFID Technology – Enables efficient tracking, sorting, and inventory management for laundries, hotels, hospitals, and uniform services.
  • Tamper-Resistant Design – Secure attachment loop prevents accidental loss during washing.
  • Multiple Frequency Options – Supports LF (125 kHz), HF (13.56 MHz), or UHF (860-960 MHz) RFID chips for compatibility with various systems.

Why Choose Our RFID Laundry Tag?
Unlike traditional RFID tags that degrade in wet conditions, our silicone laundry tag is specifically engineered for extreme laundry environments. Its robust construction ensures reliable performance, while the flexible design prevents discomfort when attached to garments.

Physical Specification
Item
SRUSIL5512

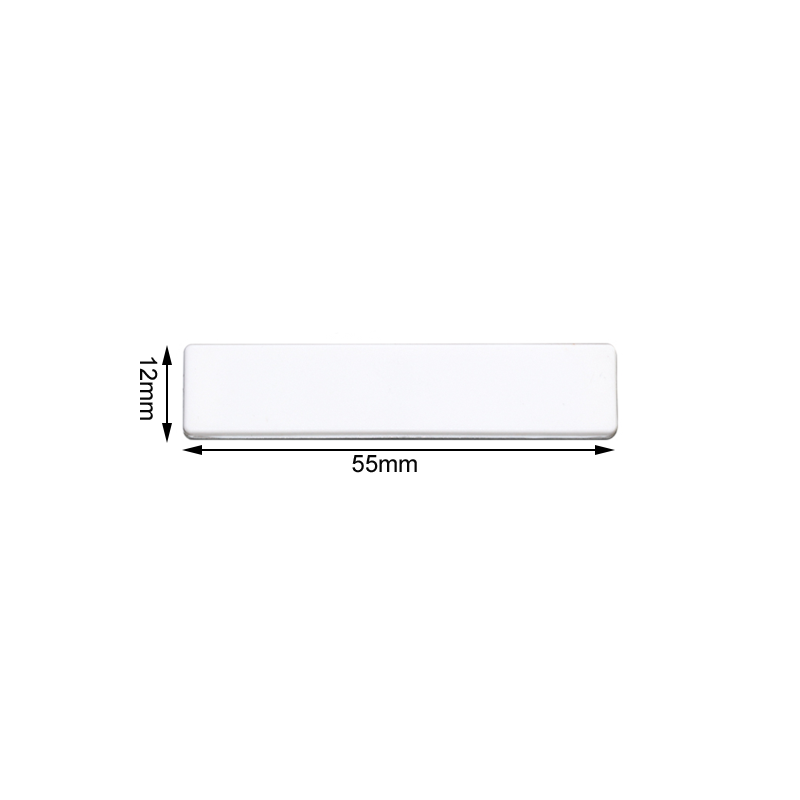

Tag Size
55*12 mm
Thickness
2.5 mm
Material
Silicone
Color
White, etc.
Weight
3 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
NXP UCODE 9, Impinj Monza 4QT
Memory
UCODE 9: EPC-96 bits; User-N/A; TID-96 bits, Monza 4QT: EPC-512 bits; User-128 bits; TID-96 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range (Fixed reader)
Up to 6 m (Depend on reader and environment)
Read Range (Handheld reader)
Up to 3 m (Depend on reader and environment)
Operating Specification
Typical washing cycle
Washing: +90°C (I94°F), 15 minutes
Drying: +I80°C (356°F), 3 minutes
lroner: +200°C (392°F), 12 seconds
Water Extractor: 60 bar, 80 seconds
Autoclave
Air removal: +I00°C (+212°F), 5 minutes, 0.1 bar
Sterilizing: +134°C (+273°F), I0 minutes, 3.25 bar
Drying: +45°C (+113°F), 15 minutes, 0.2 bar
Patching Instructions
+204°C (399°F), 12 seconds, 0.5 kg/cm2
Chemical Resistance
All Chemicals common to the washing process
Feature
200 washing cycles with water extractors up to 60 bar
Installation
Sewn inside the hem or pouch
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
Other Specification
Package Detail
200 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, etc.
Application
Industrial washing management, Rental laundry management, Uniforms management, Medical apparel management, Military clothing management
