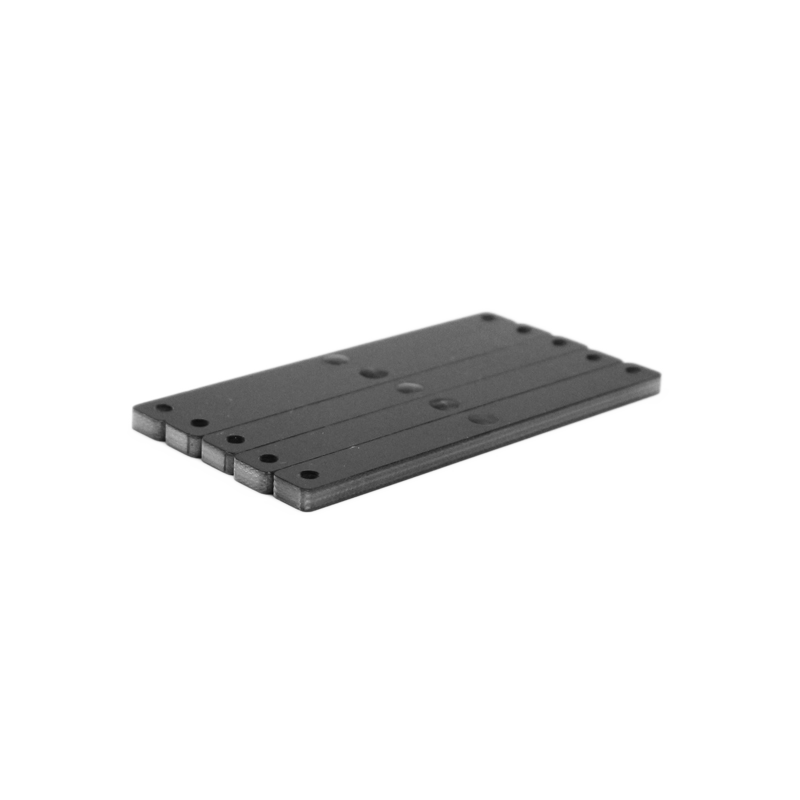

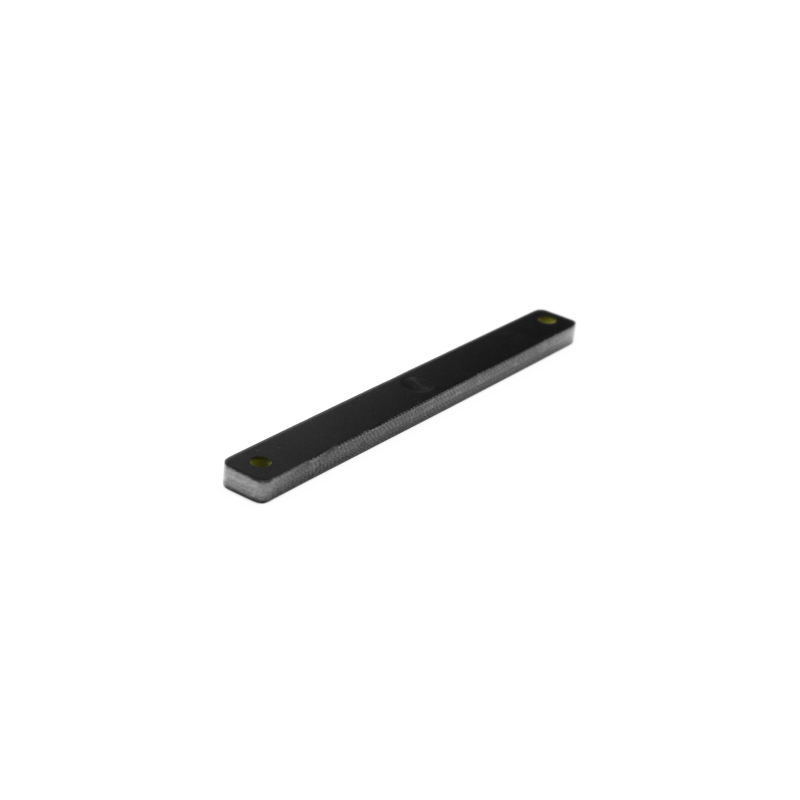

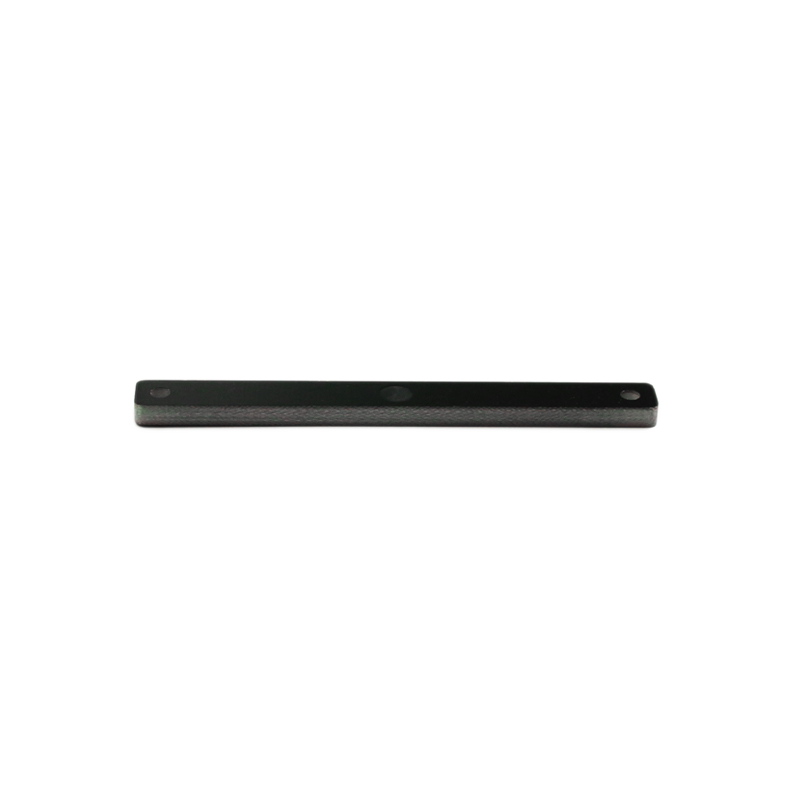

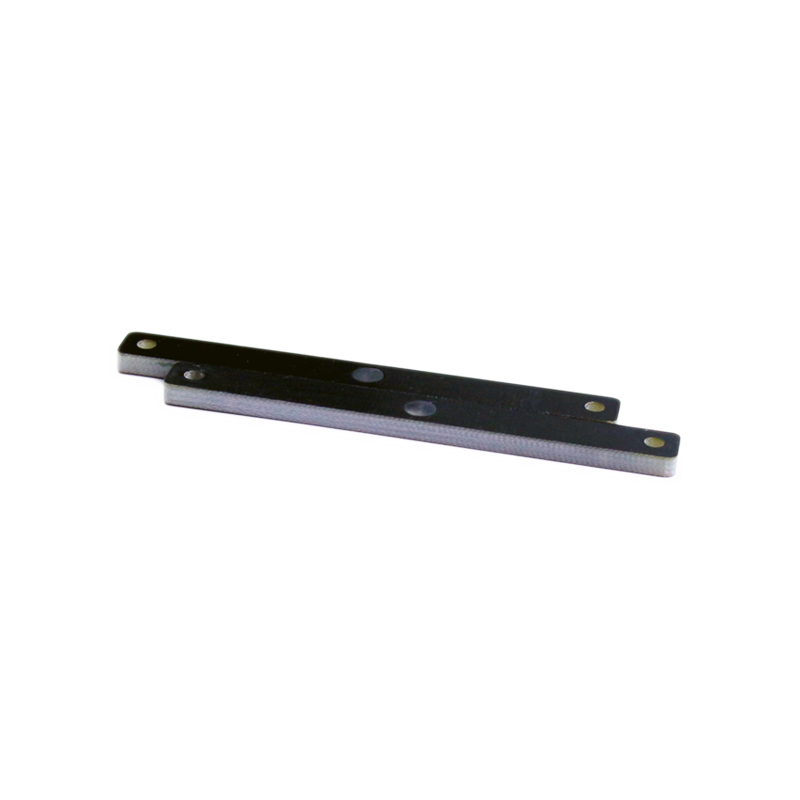

SRUPCB8008

RFID Tag Warehouse

An RFID tag warehouse refers to the use of RFID tags to manage and track inventory, assets, and equipment within a warehouse environment. RFID tags offer significant advantages over traditional barcode systems, including faster processing, real-time updates, and a reduction in human error. Whether you’re managing stock in a high-density warehouse, tracking assets in an industrial facility, or handling inventory in a retail distribution center, RFID tags improve speed, accuracy, and visibility across all your operations.

RFID tags come in various formats, including passive, active, and semi-passive, and can be integrated into pallets, individual items, shelves, and even the warehouse infrastructure itself for a fully automated solution. UHF (Ultra High Frequency) and HF (High Frequency) tags are commonly used, depending on the range and application needs.

Key Features of RFID Tags for Warehouses:

  • Fast & Accurate Inventory: RFID tags enable instant scanning and real-time tracking of products, with no line-of-sight required.

  • Seamless Integration: Compatible with existing warehouse management systems (WMS) for easy integration into your operations.

  • Real-Time Data: Provides continuous updates to inventory levels, minimizing human error and optimizing stock levels.

  • Durability: Designed to withstand warehouse conditions, with options for moisture resistance, temperature tolerance, and rugged durability.

  • Flexible Mounting Options: RFID tags can be applied to products, pallets, shelves, or even infrastructure like gates and docks.

  • Reduced Labor Costs: Automation of inventory management reduces the need for manual counting and scanning, freeing up valuable resources.

Physical Specification
Item
SRUPCB8008
Tag size
80*8 mm
Thickness
3.5 mm
Material
PCB
Adhesive
3M 300LSE
Color
White, Black, etc.
Weight
1.2 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
902-928 MHz (US), 865-868 MHz (EU)
IC Type
NXP UCODE 8, Alien Higgs 3, Alien Higgs 9
Memory
UCODE 8: EPC-128 bits; User-N/A; TID-96 bits
, Higgs 3: EPC-96(up to 480) bits; User-512 bits; TID-64 bits, Higgs 9: EPC-96(up to 496) bits; User- up to 688 bits; TID-48 bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
(Fixed Reader)
650 cm, (US) 902-928MHz, On Metal
590 cm, (EU) 865-868MHz, On Metal
Read Range
Handheld Reader
340 cm, (US) 902-928MHz, On Metal
310 cm, (EU) 865-868MHz, On Metal
Feature
Workable on metal surface
Environmental Specification
Operating Temperature
-40 °C to +150 °C / -40 °F to +302 °F
Recommended Storage
+25°C / 77°F, 40% RH
Shelf Life
2 years at +25°C / +77°F, 40% RH
IP Rating
IP68
Other Specification
Installation
Screw or backing adhesive
Package Detail
50 pcs/ESD bag or customized
Delivery Format
Single unit
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested
Certification
CE Approved, RoHs Approved, Reach Approved, etc.
Application
Military Armories Tracking, Police Stations & Tactical Units Management, Private Security Firms Equipment, etc.
