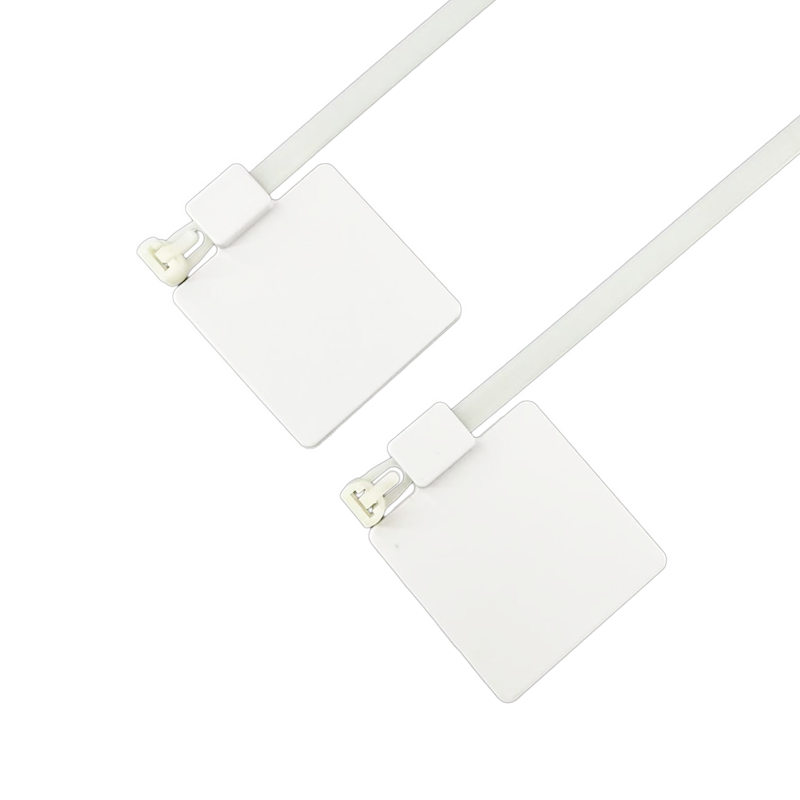

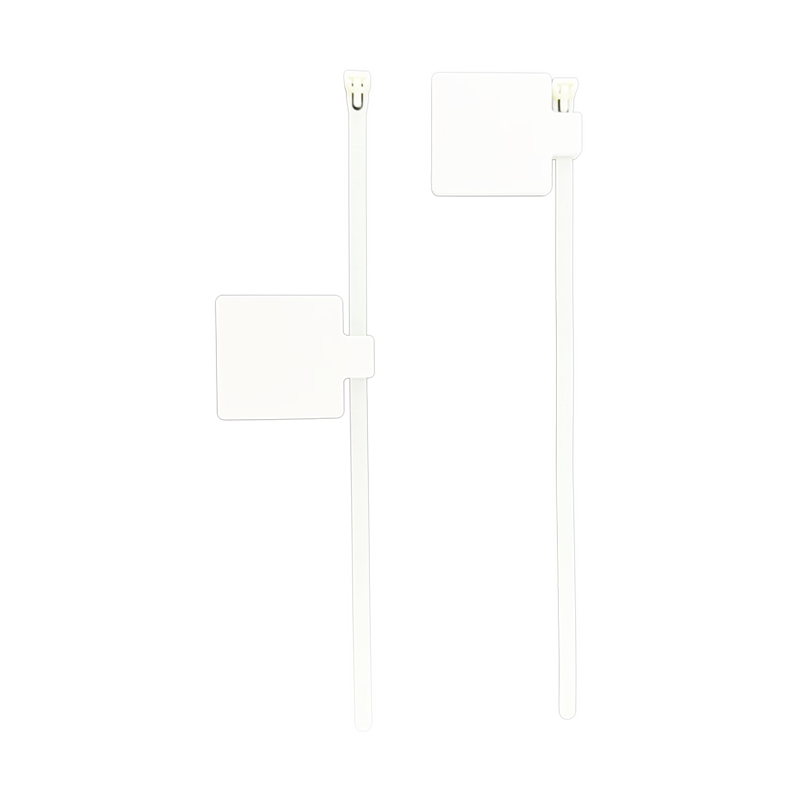

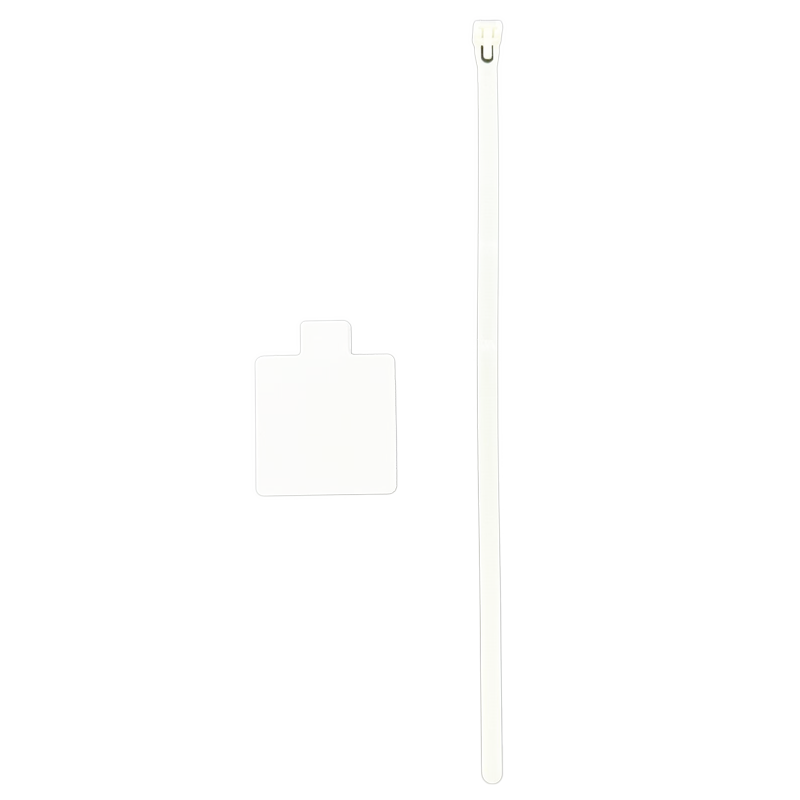

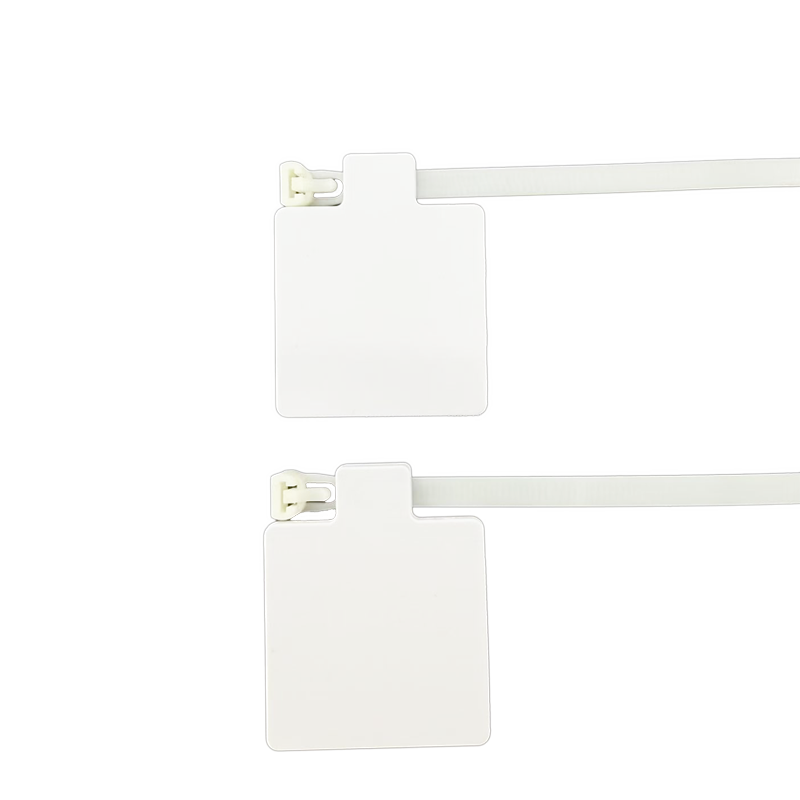

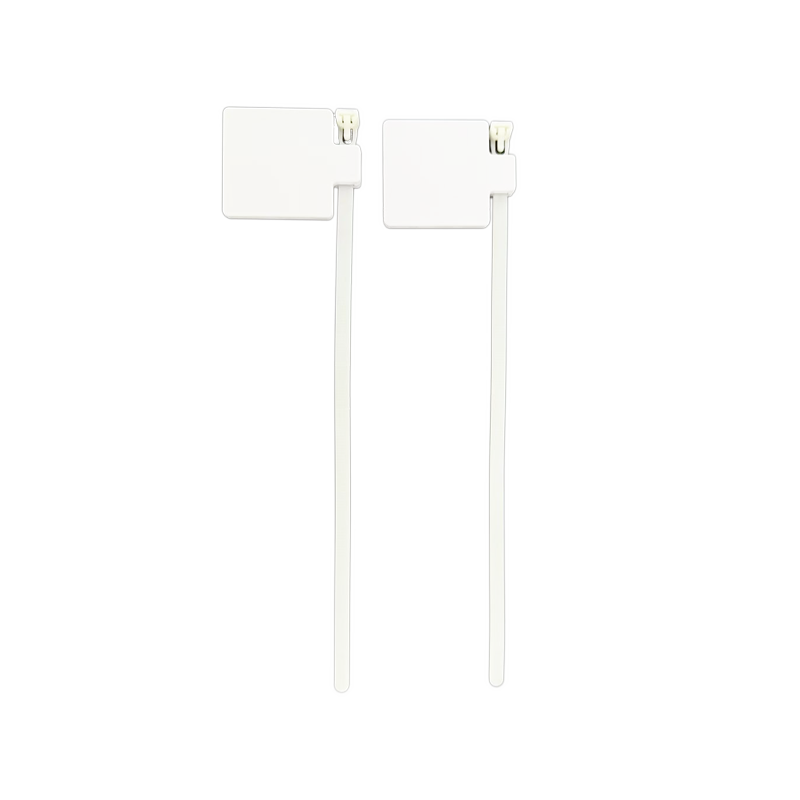

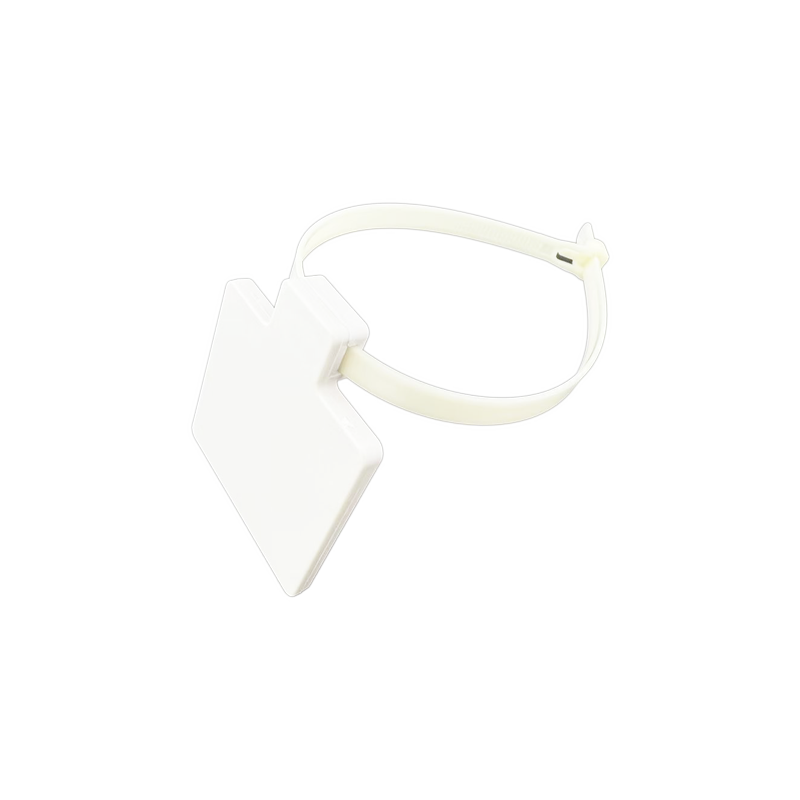

Introducing our advanced RFID Seal Tag UHF Zip Tie Tag, a revolutionary solution that combines physical security with digital intelligence. This robust, disposable tag is designed for one-time use, providing tamper-evident sealing and high-performance UHF RFID tracking for a wide range of logistics, supply chain, and asset management applications.
Key Features & Benefits:
High-Performance UHF RFID: Leverages UHF (Ultra-High Frequency) technology for long-range reading, enabling rapid, batch inventory checks without line-of-sight. Drastically reduce manual counting time and improve data accuracy.
Tamper-Evident & Secure Design: Once locked, this RFID Seal Tag UHF Zip Tie Tag cannot be reopened without being visibly cut or broken. The unique, pre-engraved barcode and serial number provide a clear visual indicator of tampering, ensuring the integrity of your shipments and assets.
Durable & Weather-Resistant: Constructed from tough Nylon or PP material, this tag is built to withstand harsh environments, including exposure to moisture, dust, and UV rays. It remains fully functional, ensuring reliable performance from warehouse to destination.
Easy to Use & Dispose Of: Just thread the tip into the lock and pull tight. Its simple zip-tie mechanism allows for quick and easy application. After use, it is easily cut and disposed of, making it a cost-effective security solution.
Wide Operating Frequency: Compatible with global UHF RFID standards (860-960 MHz), making it ideal for international logistics and global supply chain operations.
Physical Specification | ||
|---|---|---|
Item | SRSEAL5555 | |
Tag size | 55*55 mm | |
Thickness | 5 mm | |
Material | ABS | |
Color | White, Black, Yellow, Green, Blue, Red, Orange, etc. | |
Weight | 20 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2, ISO/IEC 15693, ISO/IEC 14443-A |
Operating Frequency | 860-960 MHz (Global), 13.56 MHz (HF) | |
IC Type | NXP NTAG 213, NXP ICODE SLIX | |
Memory | NTAG 213: EEPROM-1440 bits (180 bytes) NTAG 215: EEPROM-4320 bits (540 bytes) NTAG 216: EEPROM-7392 bits (924 bytes), ICODE SLIX: EEPROM-1024 bits (128 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0.1 cm to 5 cm(Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -35 °C to +85 °C / -31 °F to +185 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP65 | |
Other Specification | Installation | Self-locking |
Package Detail | 50 pcs/bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | For goods signs, logistics and transportation facilities, security inspections, petrochemical facilities, rail transit facilities, mobile communication facilities, anti-counterfeiting identification, biometric identification, security inspection facilities, power asset equipment management, etc |
