Effortlessly combine the physical security of a cable tie with the powerful digital tracking of UHF RFID technology. Our UHF RFID Cable Tie Tag Self-Locking is the ultimate all-in-one solution for asset management, inventory control, and security applications.
What is a UHF RFID Cable Tie Tag Self-Locking?

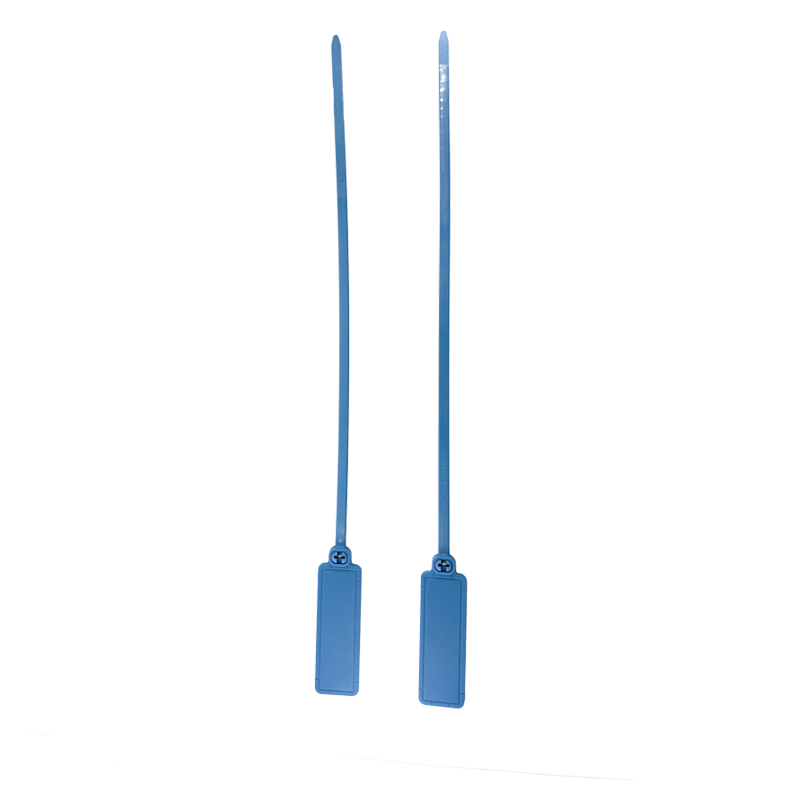

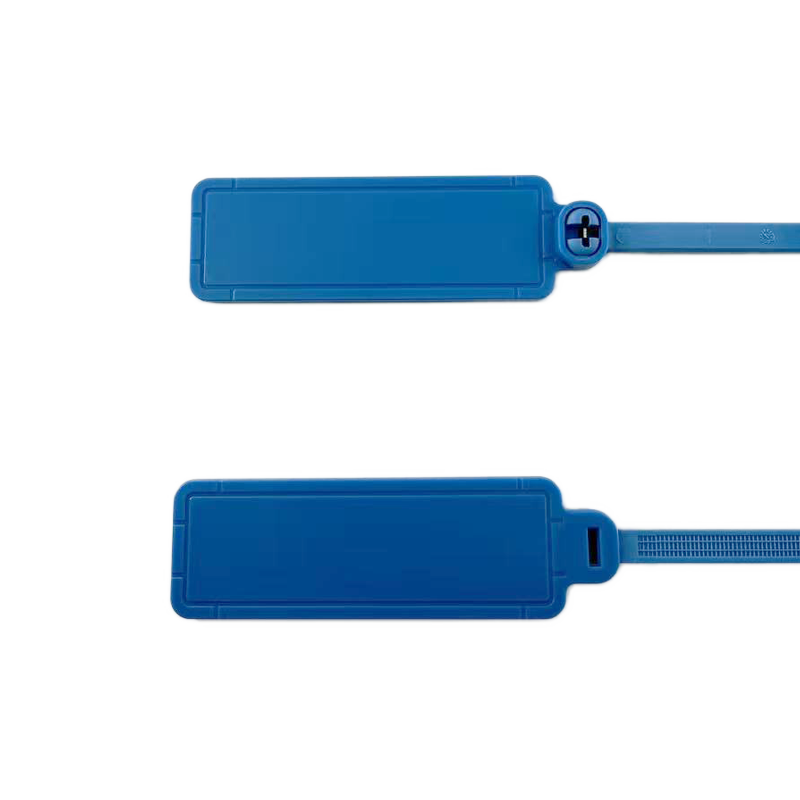

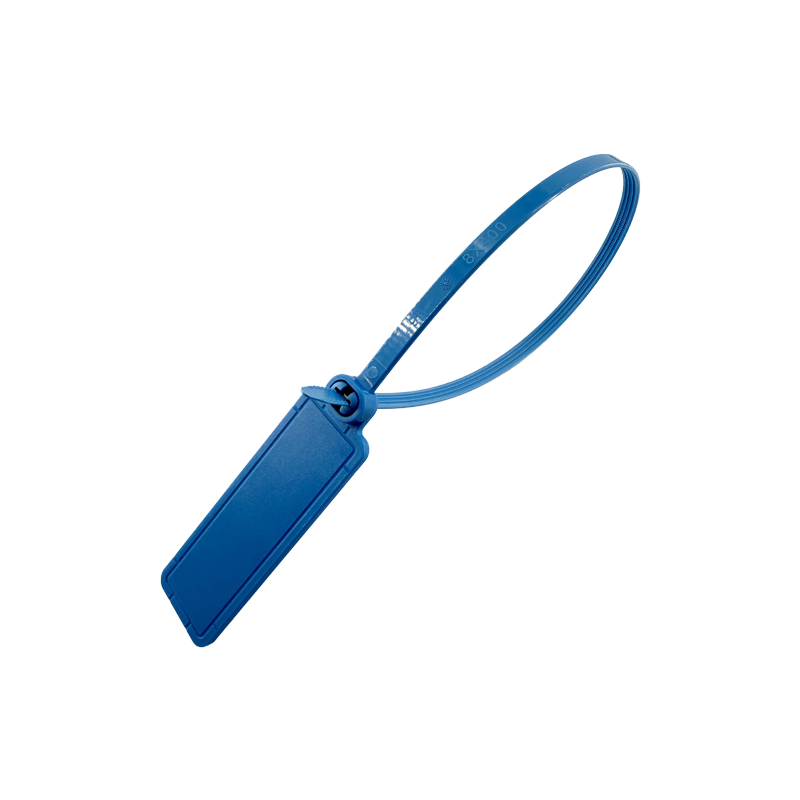

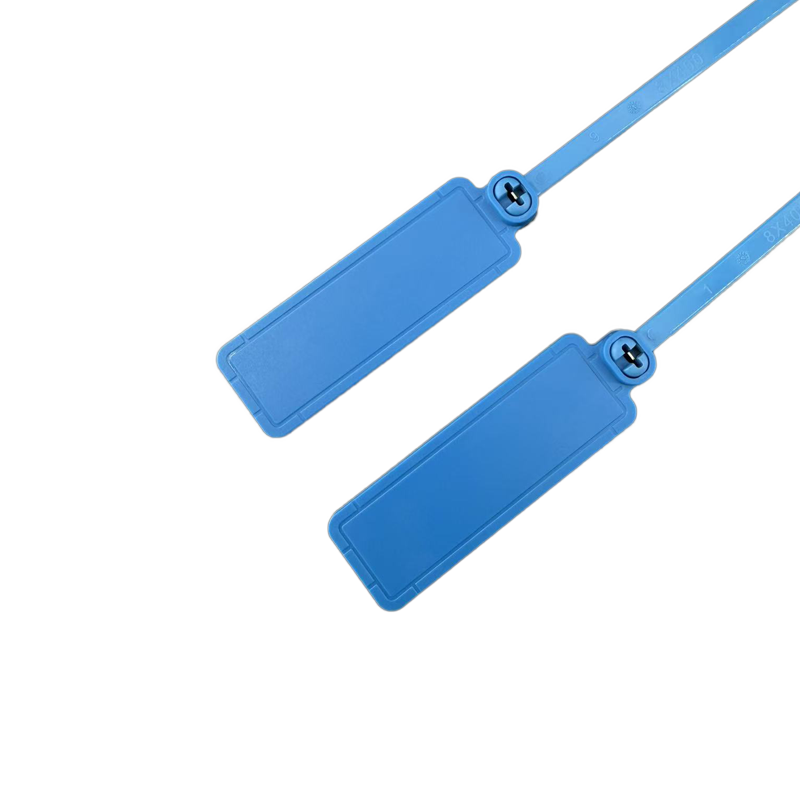

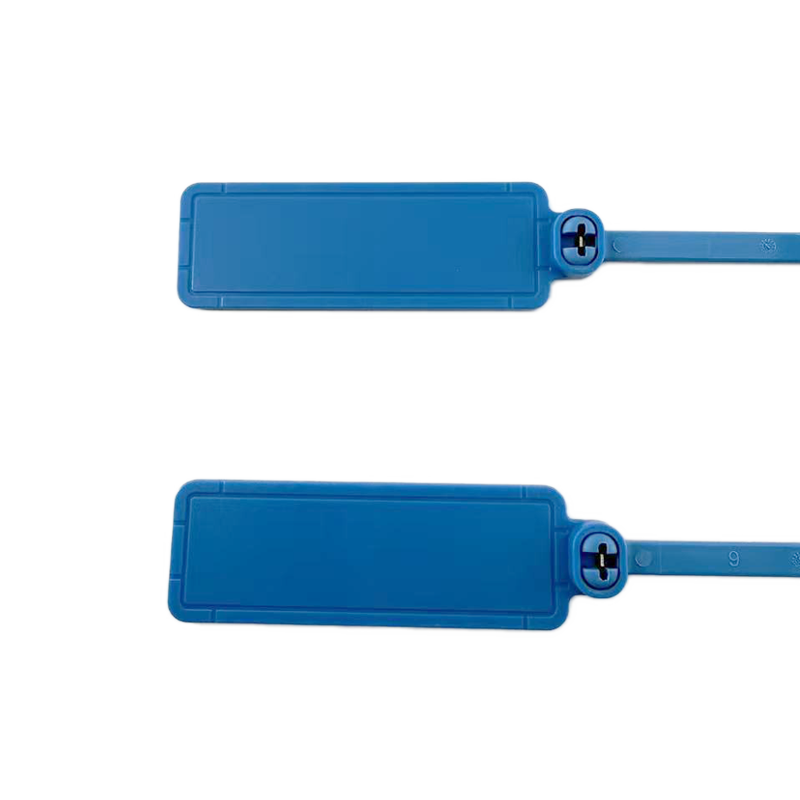

This innovative product is a heavy-duty, self-locking nylon cable tie with a embedded UHF RFID inlay. It is designed to be a one-time-use, tamper-evident seal. Once locked, it cannot be reopened without being cut, providing clear visual evidence of tampering. The integrated UHF RFID chip allows for wireless, long-range identification and data collection.
Key Features & Benefits:
All-in-One Security & Tracking: The UHF RFID Cable Tie Tag Self-Locking eliminates the need for separate tags and ties. It physically secures items while enabling fast, automated RFID scanning.
Long-Range UHF RFID Performance: Operates in the 860-960 MHz frequency range, allowing for batch reading from a distance of several meters, significantly speeding up inventory processes.
Tamper-Evident & Self-Locking Design: Once threaded and pulled tight, the tag locks securely. Any attempt to remove it requires destructive cutting, making it ideal for high-security applications like logistics seals, asset audits, and warranty void protection.
Durable & Weather Resistant: Made from strong, reinforced nylon, our tags are resistant to water, dust, chemicals, and UV exposure, ensuring reliable performance in both indoor and outdoor environments.
Easy to Install: The UHF RFID Cable Tie Tag Self-Locking mechanism is simple and intuitive. Just thread the tip through the head and pull tight for a permanent, secure fit. No tools are required.
High Memory Capacity: The RFID chip offers a sufficient user memory to store unique ID numbers, asset information, maintenance history, and more.
Physical Specification | ||
|---|---|---|
Item | SRSEAL10532 | |
Tag size | 105*32 mm | |
Thickness | 4 mm | |
Material | ABS | |
Color | White, Black, Yellow, Green, Blue, Red, Orange, etc. | |
Weight | 16 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2, ISO/IEC 15693, ISO/IEC 14443-A |
Operating Frequency | 860-960 MHz (Global), 13.56 MHz (HF) | |
IC Type | NXP NTAG 213, NXP ICODE SLIX | |
Memory | NTAG 213: EEPROM-1440 bits (180 bytes) NTAG 215: EEPROM-4320 bits (540 bytes) NTAG 216: EEPROM-7392 bits (924 bytes), ICODE SLIX: EEPROM-1024 bits (128 bytes) | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 0.1 cm to 5 cm(Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -35 °C to +85 °C / -31 °F to +185 °F |
Recommended Storage | +25°C / 77°F, 40% RH | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
IP Rating | IP65 | |
Other Specification | Installation | Self-locking |
Package Detail | 50 pcs/bag or customized | |
Delivery Format | Single unit | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | For goods signs, logistics and transportation facilities, security inspections, petrochemical facilities, rail transit facilities, mobile communication facilities, anti-counterfeiting identification, biometric identification, security inspection facilities, power asset equipment management, etc |
