Experience the power of long-range RFID in a plug-and-play format with our USB RFID Reader featuring an integrated 12 dBi high-gain antenna. Designed for users who need extended read distances without complex wiring or external power sources, this device offers the perfect balance of simplicity and industrial performance.
Key Features:
Integrated 12 dBi Antenna: High-gain directional antenna delivers UHF read ranges up to 15 meters or more—perfect for wide-area scanning zones.
USB-Powered Operation: No need for external power adapters—just connect via USB to your PC, laptop, or workstation and start scanning.
EPC Gen2 (ISO 18000-6C) Compatible: Fully supports global UHF RFID standards for maximum tag compatibility.
Multi-Tag Reading: Rapidly identifies multiple tags simultaneously, ideal for bulk scanning in warehouses or at dock doors.
Keyboard Emulation & SDK Support: Outputs data directly into applications or integrates into custom software via SDK/API.
Durable Industrial Design: Built for reliability with a robust housing that performs well in commercial, logistics, and access control environments.
Use Case Scenarios:
Logistics dock door scanning
Asset identification in storage yards
Retail backroom inventory audits
Long-range ID card verification
Vehicle and gate access checkpoints
Whether you’re looking to enhance visibility across large operational areas or streamline tracking with minimal setup, the USB RFID Reader with Integrated 12 dBi Antenna is a smart, efficient solution that delivers plug-and-play convenience with professional-grade range.
Physical Specification | Dimension | 415*415*67 mm |
|---|---|---|
Material | ABS+Die cast aluminum | |
Weight | 3.1 kg | |
Color | White | |
RFID Specificiation | Air Interface Protocol | EPC Global UHF Class 1 Gen 2, ISO 18000-6C |
Operating Frequency | US (902-928 MHz) EU (865-868 MHz) | |
RF Output Power | 0-26 dbm (Adjustable) | |
Built In Antenna | 12 dBi | |
Polarization | Linear | |
Reading Distance | 0-15 meters (Depend on tag performance and operating environment) | |
Special Functions | Support password/mask function | |
Working Mode | Active mode Answer mode Trigger mode | |
RSSI | Support | |
Data Communication | Standard Interface | RS232, Wiegand, Relay |
Optional Interface | TCP/IP, POE, WIFI, USB, TTL, RS485, etc. | |
Power Supply | 12V 2A | |
Reading Alarm | Buzzer | |
Indicator Light | Strip light (Red and Green) | |
Environment Specification | Mounting Methods | Screw, bracket |
IP Rating | IP 65 | |
Operating Temperature | -10°С to +55 °С | |
Storage Temperature | -20°С to +75°С | |
Other Specification | Package | 1 pc/box |

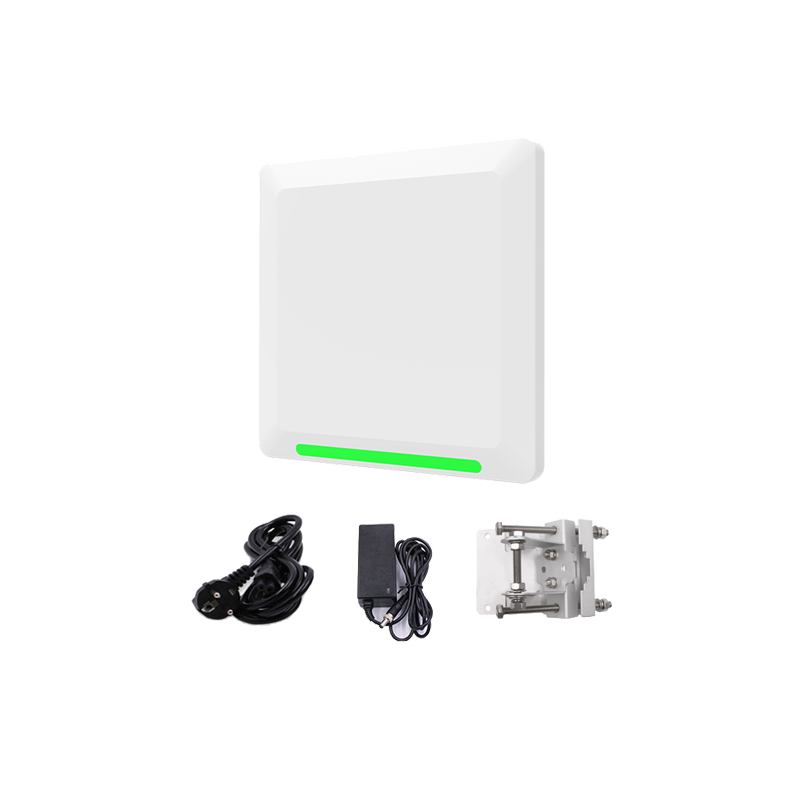

Accessories | Install bracet, power adapter, and plug (US, EU,CHN) | |
Personalization | Pre-print Logo / Barcode / QR / Series number, etc. | |
Final Inspection | 100% tested | |
Certification | CE Approved, RoHS Approved | |
Application | Parking lot managment, warehouse managment, etc. |
