SRU28125

What Are UHF RFID Labels

RFID labels are innovative, data-driven identification tags that revolutionize how businesses track, manage, and secure their assets. Unlike traditional barcodes, RFID labels use radio frequency identification technology to transmit stored data wirelessly to a reader, without requiring direct line-of-sight. This enables fast, bulk scanning of multiple items simultaneously—even through packaging—drastically improving efficiency and accuracy.

Our high-performance RFID labels are designed for durability and versatility. Each label contains a microchip and antenna embedded in a flexible material, making them suitable for a wide range of surfaces and environments—from retail apparel and logistics parcels to industrial containers and access control systems. With options for UHF, HF, or NFC frequencies, our labels support various read ranges and applications, including inventory control, supply chain visibility, anti-counterfeiting, and automated checkout.

Key benefits of integrating our RFID labels into your operations include:

  • Real-Time Visibility: Gain instant insights into stock levels and asset locations.

  • Operational Efficiency: Reduce manual scanning efforts and minimize human errors.

  • Enhanced Security: Unique identification codes help prevent theft and unauthorized access.

  • Scalability: Easily manage thousands of items with seamless integration into existing ERP or WMS platforms.

Ideal for retailers, warehouses, manufacturers, and logistics providers, our RFID labels are the smart upgrade to traditional tracking methods. Customizable in size, material, and chip type, they offer a reliable, long-term solution for automating and optimizing your business processes.

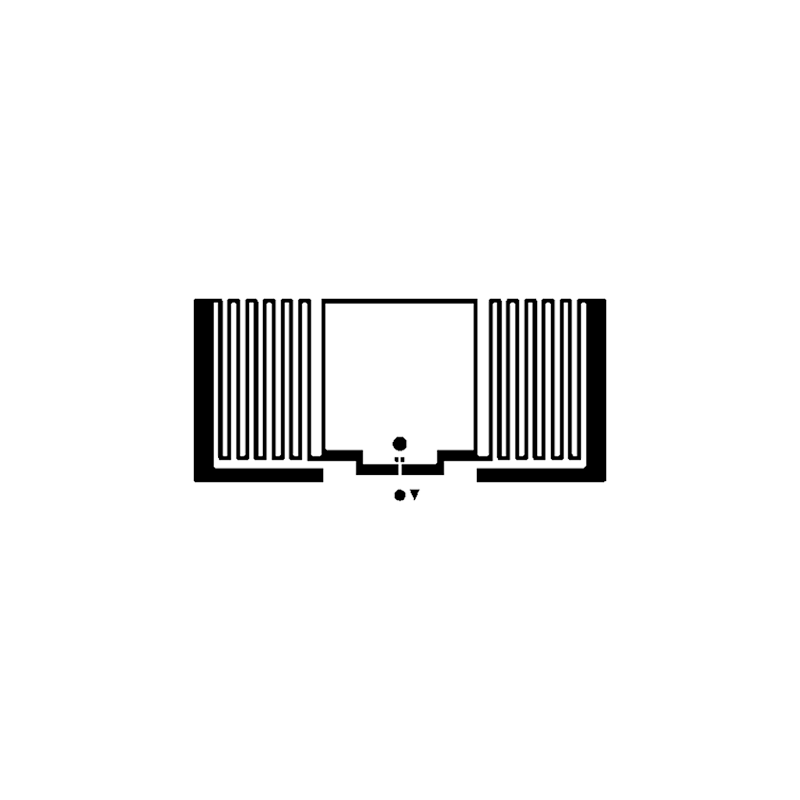

Physical Specification
Item
SRU28125
Antenna size
28 mm
Tag size

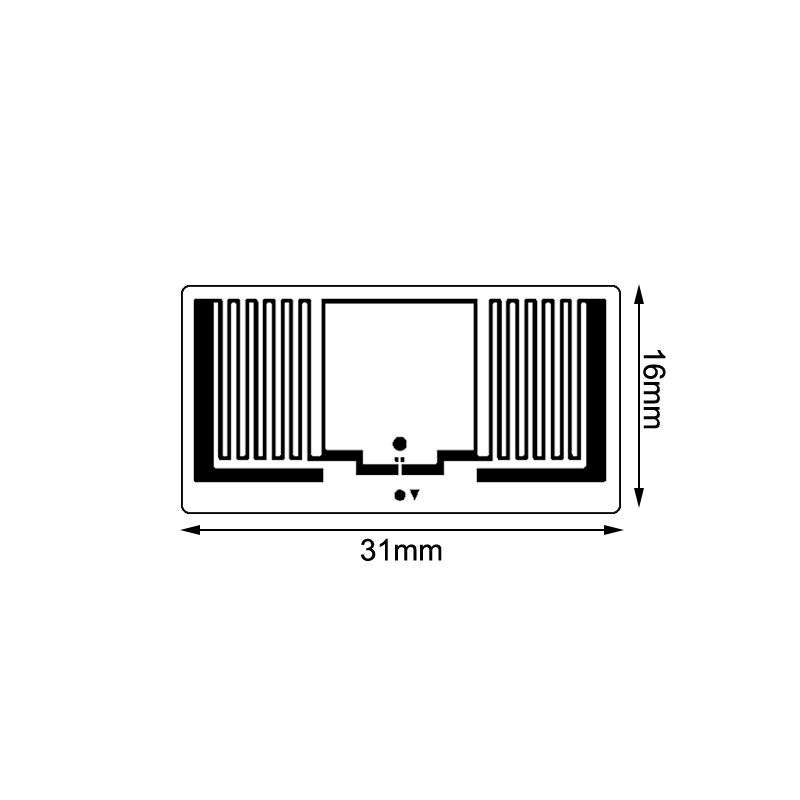

31*16 mm
Thickness
11–18 mils / 279–463 microns
Material
Paper / PP / PET or customized
Adhesive
Solvent free permanent acrylic adhesive
Color
White, Transparent, etc.
Weight
0.01 g
RFID Specification
Air Interface Protocol
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency
860-960 MHz (Global)
IC Type
Kiloway KX2005X-S
Memory
KX2005X-S: EPC-128 bits; User-N/A bits; TID-96(up to 192) bits
Write Endurance
100,000 cycles
Data Retention
Up to 20 years
Read Range
6 m to 10 m (Depend on reader and environment)
Feature
Bulk identification
Environmental Specification
Operating Temperature
-40 °C to +85 °C / -40 °F to +185 °F
Operating Humidity
20% to 60% RH
Recommended Storage
+25°C / 77°F, 40% RH
Bend Diameter
> 1.97” / 50 mm
Pressure
< 5N/mm2
Drop Resistance
Per ASTM D5276
Shelf Life
2 years at +25°C / +77°F, 40% RH
ESD Voltag Immunity
±2 kV peak HBM
Other Specification
Package Detail
3000 pcs/reel, vacuumed in ESD bag or customized
Core Size
76.2 mm / 3 in, etc.
Delivery Format
On reel for dry inlay, wet inlay, label
Samples Policy
For free if stock available
Personalization
Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc.
Final Inspection
100% tested, defective tags marked
Certification
CE Approved, RoHs Approved, etc.
Application
CD/DVD Management,etc.
