“Printing RFID Labels” is no longer a complex, multi-step process. Our advanced RFID smart labels combine the convenience of on-demand printing with the power of RFID technology, creating an all-in-one solution for inventory management, asset tracking, and retail logistics.
What Are Our Printable RFID Labels?
Our labels are embedded with a thin, flexible RFID inlay (featuring a microchip and antenna) and are coated with a printable face stock. This allows you to print variable information—such as barcodes, text, logos, or graphics—directly onto the label using a standard RFID-enabled printer, while simultaneously encoding data onto the RFID chip. This dual-action process ensures perfect visual and digital data alignment.
Key Benefits & Features:
All-in-One Integration: The core advantage of printing RFID labels is the seamless integration of visual information and digital data capture in a single pass. Eliminate the errors and labor costs associated with separate printing and encoding steps.
High Compatibility: Designed to work flawlessly with leading UHF RFID printers from manufacturers like Zebra, Honeywell, and Sato. Print and encode hundreds of labels per minute with precision.
Durable & Versatile: Available in a variety of materials (paper, synthetic, tamper-evident) and adhesives for different surfaces—from cardboard boxes and pallets to metal assets and retail apparel.
Reliable Performance: Featuring high-quality inlays from top suppliers (Impinj, NXP, Alien), our labels ensure consistent read rates and a long-range performance, even in challenging RF environments.
Easy Implementation: Transition smoothly from traditional barcode labeling. Use your existing label design software and simply add RFID encoding commands to start printing RFID labels that supercharge your tracking capabilities.
Physical Specification | ||
|---|---|---|
Item | SRU3110 | |

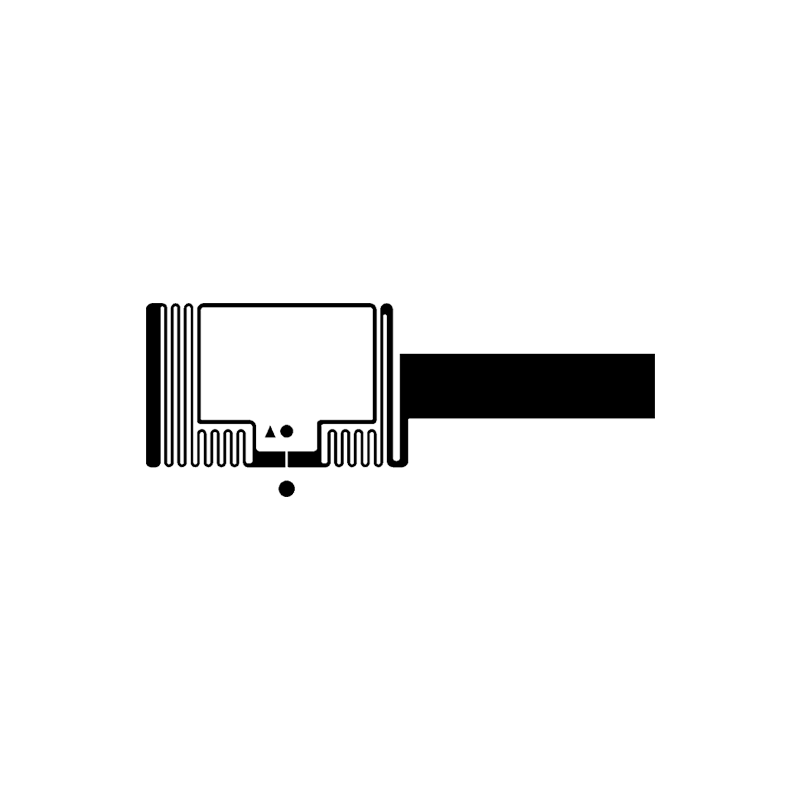

Antenna size | 31*10 mm | |
Tag size | 34*13 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | NXP UCODE 8, NXP UCODE 9 | |
Memory | UCODE 9: EPC-96 bits; User-N/A; TID-96 bits UCODE 8: EPC-128 bits; User-N/A; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 6 m to 10 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | CD/DVD Management,etc. |
