Unlock the power of seamless identification and automation with our industry-leading Universal RFID Tags. Designed for durability, performance, and versatility, these tags are the foundational component enabling the vast and transformative RFID tags uses across the modern world. Whether you need to track, secure, authenticate, or manage, our tags provide the reliable data link between physical items and digital systems.
Understanding the Core RFID Tags Uses:
The applications of RFID technology are boundless. Our tags are specifically engineered to excel in the most critical and common RFID tags uses:
Supply Chain & Logistics: The premier among RFID tags uses is asset visibility. Track pallets, containers, and individual products in real-time from manufacture to delivery, drastically reducing loss, improving accuracy, and automating shipping/receiving processes.
Retail & Inventory Management: Transform your stock-taking. One of the most impactful RFID tags uses is enabling rapid, accurate inventory counts without line-of-sight scanning, reducing out-of-stock scenarios, and enabling smart fitting rooms and self-checkout solutions.
Asset Tracking & Maintenance: From IT equipment in an office to tools in a factory and medical devices in a hospital, tracking valuable assets is a vital use case. Our tags log movement and can store maintenance history, preventing loss and optimizing utilization.
Access Control & Security: Moving beyond physical keys, a key security-focused application in RFID tags uses is for secure door access, vehicle immobilizers, and controlled area management via ID badges or key fobs.
Event & Attendance Management: Efficiently manage attendees, equipment, and livestock at large events, conferences, or farms. This use case highlights the scalability of RFID for managing large numbers of items or people simultaneously.
Brand Protection & Authentication: Combat counterfeiting in luxury goods, pharmaceuticals, and electronics. Our tamper-evident tags provide a unique, unforgeable identity, a critical use for protecting brand integrity and consumer safety.
Physical Specification | ||
|---|---|---|
Item | SRU7014 | |

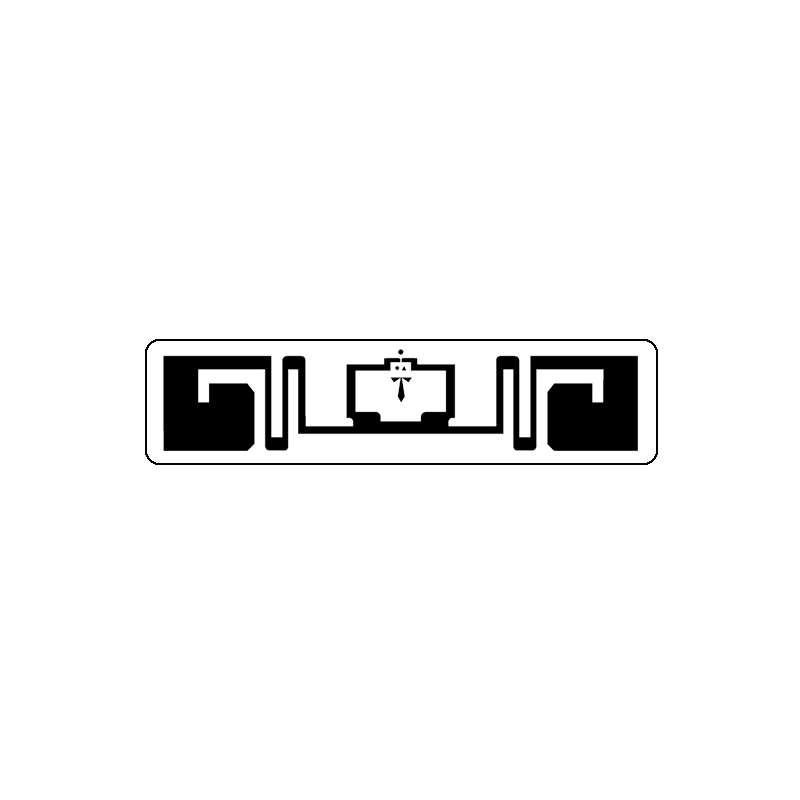

Antenna size | 70*14 mm | |
Tag size | 73*17 mm | |
Thickness | 11–18 mils / 279–463 microns | |
Material | Paper / PP / PET or customized | |
Adhesive | Solvent free permanent acrylic adhesive | |
Color | White, Transparent, etc. | |
Weight | 0.01 g | |
RFID Specification | Air Interface Protocol | ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency | 860-960 MHz (Global) | |
IC Type | Impinj M830, Impinj M850 | |
Memory | M830: EPC-128 bits; User-N/A bits; TID-96 bits, M850: EPC-96 bits; User-32 bits; TID-96 bits | |
Write Endurance | 100,000 cycles | |
Data Retention | Up to 20 years | |
Read Range | 6 m to 10 m (Depend on reader and environment) | |
Feature | Bulk identification | |
Environmental Specification | Operating Temperature | -40 °C to +85 °C / -40 °F to +185 °F |
Operating Humidity | 20% to 60% RH | |
Recommended Storage | +25°C / 77°F, 40% RH | |
Bend Diameter | > 1.97” / 50 mm | |
Pressure | < 5N/mm2 | |
Drop Resistance | Per ASTM D5276 | |
Shelf Life | 2 years at +25°C / +77°F, 40% RH | |
ESD Voltag Immunity | ±2 kV peak HBM | |
Other Specification | Package Detail | 3000 pcs/reel, vacuumed in ESD bag or customized |
Core Size | 76.2 mm / 3 in, etc. | |
Delivery Format | On reel for dry inlay, wet inlay, label | |
Samples Policy | For free if stock available | |
Personalization | Pre-print Logo / Barcode / QR / Series number, Pre-encode / encrypt, etc. | |
Final Inspection | 100% tested, defective tags marked | |
Certification | CE Approved, RoHs Approved, etc. | |
Application | CD/DVD Management,etc. |
