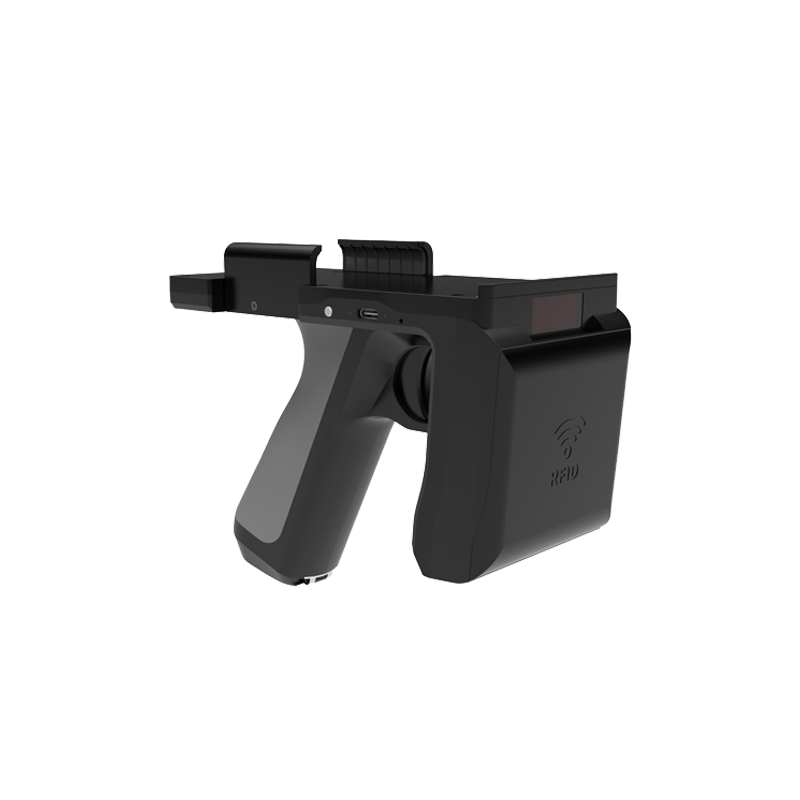

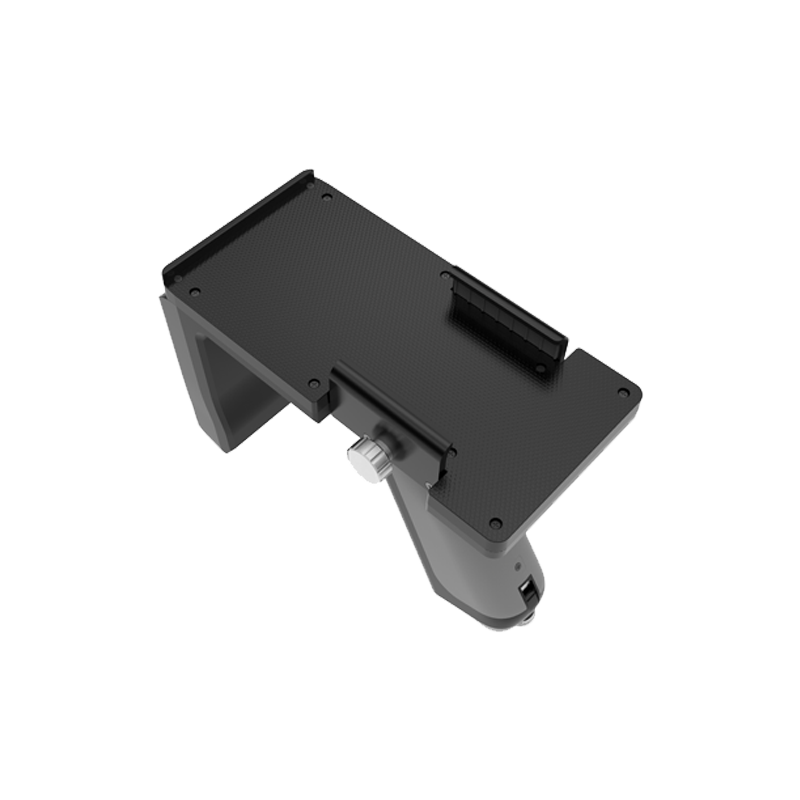

The Bluetooth RFID Reader is the ultimate portable solution for mobile RFID scanning, offering quick, efficient UHF tag detection while eliminating the need for cables. With built-in Bluetooth connectivity, this reader pairs effortlessly with smartphones, tablets, and other Bluetooth-enabled devices, enabling real-time asset tracking, inventory management, and access control on-the-go.
Key Features:
Wireless Bluetooth Connectivity: Pairs seamlessly with smartphones, tablets, and other Bluetooth-enabled devices, allowing for mobile data capture without the hassle of wired connections.
Compact & Portable Design: Lightweight and ergonomic, designed for field use and easy handling in both fixed and mobile applications.
UHF RFID Performance: Reads UHF EPC Gen2/ISO 18000-6C tags from distances up to 10 meters or more, offering long-range scanning in mobile scenarios.
Multi-Tag Scanning: Supports simultaneous reading of multiple tags, boosting efficiency in busy environments like warehouses, retail spaces, or logistics hubs.
Low Power Consumption: Operates for extended periods on rechargeable batteries, making it ideal for fieldwork, inventories, and other mobile applications.
Flexible Integration: Compatible with iOS, Android, and Windows devices; integrates easily into existing asset management and ERP systems via Bluetooth.
Physical Specification | Material | CNC Aluminium, PC + ABS |
|---|---|---|
Dimension | 162*138*78 mm, | |
Weight | 520 g (battery included) | |
Color | Black + Grey | |
System Specification | Hotswapping Battery Buttons | Pistol style hotswapping battery system |
Power / Volume | 3 ALPS buttons/ Operating force 2.5N /
Operating life 1 million cycles | |
Scan Trigger | OMRON button / Operating force 1.27N /
Operating life 10 million cycles | |
Power | 6,000mAh chargeable Ii-polymer battery | |
USB Interface | USB TYPE C/Operating
life 10,000 cycles | |
Audio | Large speaker stereo system | |
Charge Indicator | Bicolor LED | |
Data Collections | 1D Barcode (Optional) | Optional |
Engine | Motorola EM1350 | |
1D Support | UPC/EA Symbol SE955N/Code128/
Code39/Code93/Code11/lnterleaved 2 of 5/ Discrete 2 of 5/Chinese 2 of 5/
Codabar/MSI/ RSS, etc. | |
2D Barcode (Optional) | Optional | |
Engine | Zebra SE4750, NLS EM3396, EM3296 | |
2D Support | Datamatrix/QRCode/PDF417 US Planet/ UK Postal, etc. | |
UHF RFID
Engine | Impinj E710 chip | |
Buzzer | Ø 12*9.5mm / 2300±300Hz | |
UHF RFID Protocol | EPC Global UHF Class 1 Gen 2 /
ISO 18000-6C / ISO 18000-6B | |
Frequency | US (902-928 MHz) EU (865-868 MHz) | |
Output Power | 0~33dBm | |
Peak Inventory Speed | > 500 tags/s | |
UHF Antenna | 4 dBi air dielectric antenna | |
Read Distance | > 10 m | |
Wireless Communications | Bluetooth | Bluetooth 5.0 |
Environment Specification | Operating Temperature | -20° ~ +60° |
Recommended Storage | -30° ~ +70° | |
Operating Humidity | 5%RH – 95%RH (non -condensing) | |
Protection Grade | IP64 | |
Safety Drop Height | 1.2m |
